FUTABA 10CAG User Manual

82
AILE-FLAP
(
GLID 2A+2F
only):
Adjustability:
•
RATE
UDQJHRIWR1HJDWLYHVHWWLQJZRXOGUHVXOWLQRSSRVLWHDLOHURQDFWLRQIURPÀDSV
•
SWITCH A-H fully assignable. Also LOGIC SW (Lsw1 to 3) may be assigned. Set up
LOGIC SW
: See p. 38.
•
POSITION
fully assignable, including
NULL
(mix always on) and
Up&Cntr
and
Cntr&Dn
to activate the mix in 2 separate
positions of the same SWITCH.
•
Condition: The separate
AILE-FLAP
VHWWLQJVIRUHDFKÀLJKWFRQGLWLRQFDQEHVHW

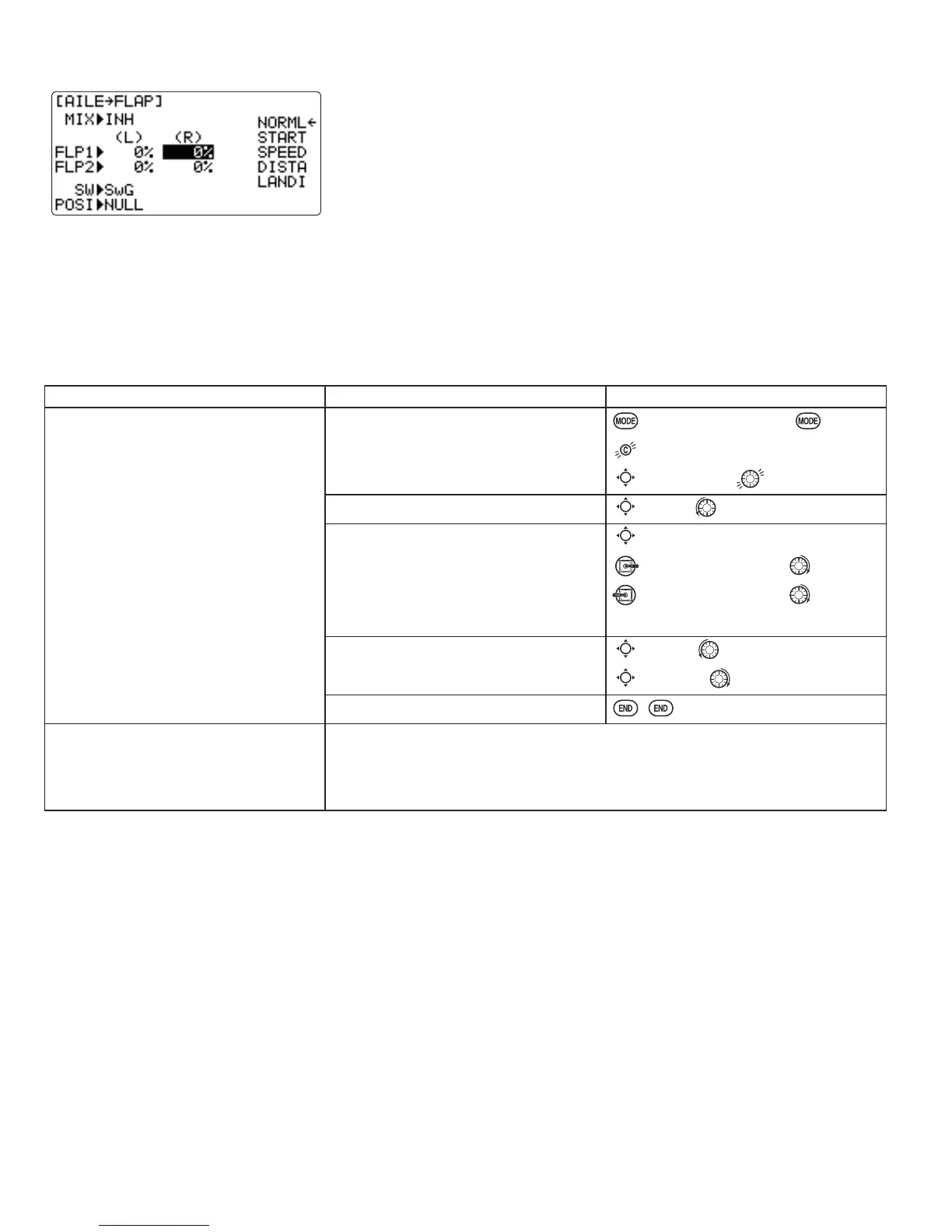

GOAL of EXAMPLE: STEPS: INPUTS:
Turn on
AILE-FLAP
mixing. Set rate
to100% for maximum possible flap
travel with ailerons. Assign to SWITCH
C center.
Open
AILE-FLAP
submenu.
for 1 second.
(If
BASIC
, again.)
to 2nd page of menu.
C
to
AILE-FLAP
.
Activate the function.
C
to
MIX
to
ON
.
Set the rate. (Ex:
100%
each way)
C
to
FLP1
.
AILERON STICK. to
+100%
.
AILERON STICK. to
+100%
.
Repeat above to set
FLP2
.
Assign the SWITCH and position.
C
to
SW
. to
C
.
C
to
POSI
. to
CENTER
.
Close.
Where next?
ELEV-FLAP
mixing. See p. 62.
BUTTERFLY
. See p. 63.
Use a mix to
OFFSET
WKHÀDSVDVHWGLVWDQFHRQDVSHFL¿HGVZLWFKVHHS
View additional model setups on the internet: www.futaba-rc.com\faq\
This pre-programmed mix is used to create full span aileron action on a glider
with 4wing servos. This increases the roll rate and decreases induced drag.
)RUQRUPDOÀ\LQJDYDOXHRIDERXWLVRIWHQXVHG)RUVORSHUDFLQJRU)%
models in speed runs, you may wish to use a larger value approaching 100%.
