FUTABA 10CAG User Manual

71

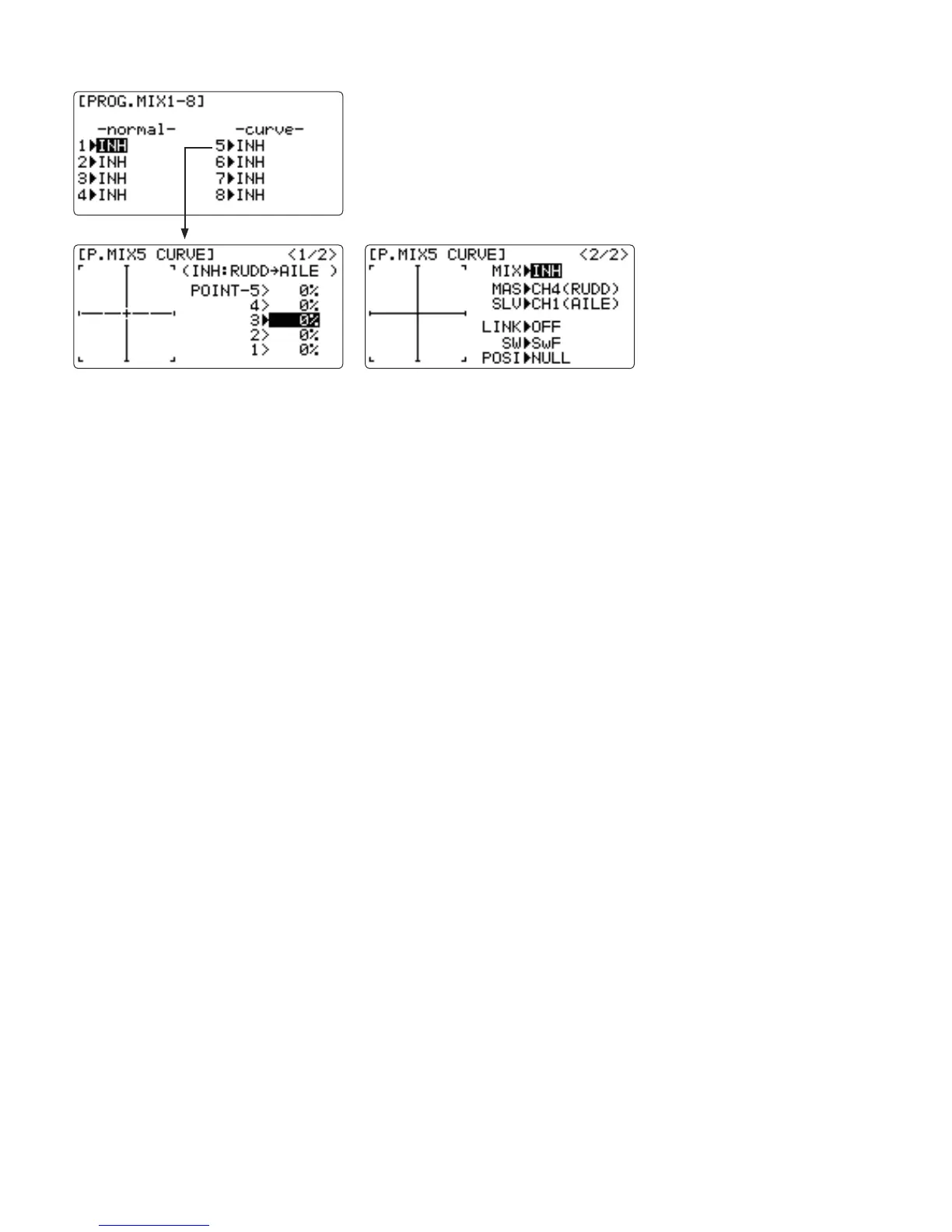

CURVE PROGRAMMABLE MIXES (
PROG.MIX5-8
)(
HELI
:
PROG.MIX5-6
):
Your 10CG’s
ACRO

GLID
programs contain four separate curve programmable mixes.
HELI
contains two. There are a variety
RIUHDVRQV\RXPLJKWZDQWFXUYHPL[HV)RUH[DPSOHZKHQDOLQHDUPL[GRHVQ¶W¿W\RXUQHHGVDORQJWKHZKROHUDQJH2QH
pre-programmed curve mix is the
THROTTLE-NEEDLE
function. This curve is adjustable at 5 points, allowing you to adjust
the motor’s tuning at 5 points along its RPM range.
One programmable curve mix defaults to
RUDDER-AILERON
. A linear mix that keeps the model from rolling in knife-edge is
SUREDEO\WRRPXFKDLOHURQZKHQUXGGHULVDSSOLHGLQOHYHOÀLJKW&UHDWHDFXUYHPL[DQGVHWDOOSRLQWVWRPDWFKWKHOLQHDU
mix. Inhibit the linear mix, then adjust the curve to get the right response all along the rudder channel’s travel.
$GMXVWDELOLW\IRUGHWDLOHGGH¿QLWLRQVVHH/LQHDU3URJUDPPDEOH0L[HVDQG*ORVVDU\
•
ACRO

GLID
Defaults: The 4 programmable curve mixes default to the most frequent choices, but can be set to any channel.
•
PROG.MIX5
rudder-to-aileron for roll coupling compensation (
GLID
mixes default to aileron-to-elev.)
•
PROG.MIX6
rudder-to-aileron for roll coupling compensation (
GLID
mixes default to aileron-to-elev.)
•
PROG.MIX7
rudder-to-elevator for pitch coupling compensation (
GLID
mixes default to elevator-to-airbrake.)
•
PROG.MIX8
rudder-to-elevator for pitch coupling compensation (
GLID
mixes default to elevator-to-airbrake.)
•
HELI
Defaults:
•
PROG.MIX5
aileron-to-elevator for coordinated turns
•
PROG.MIX6
aileron-to-elevator for coordinated turns
•
Master: The controlling channel can only be a channel. Cannot be
OFFSET
or dial.
•
Trim: not available in curve mixes.
•
Offset: not available in curve mixes.
