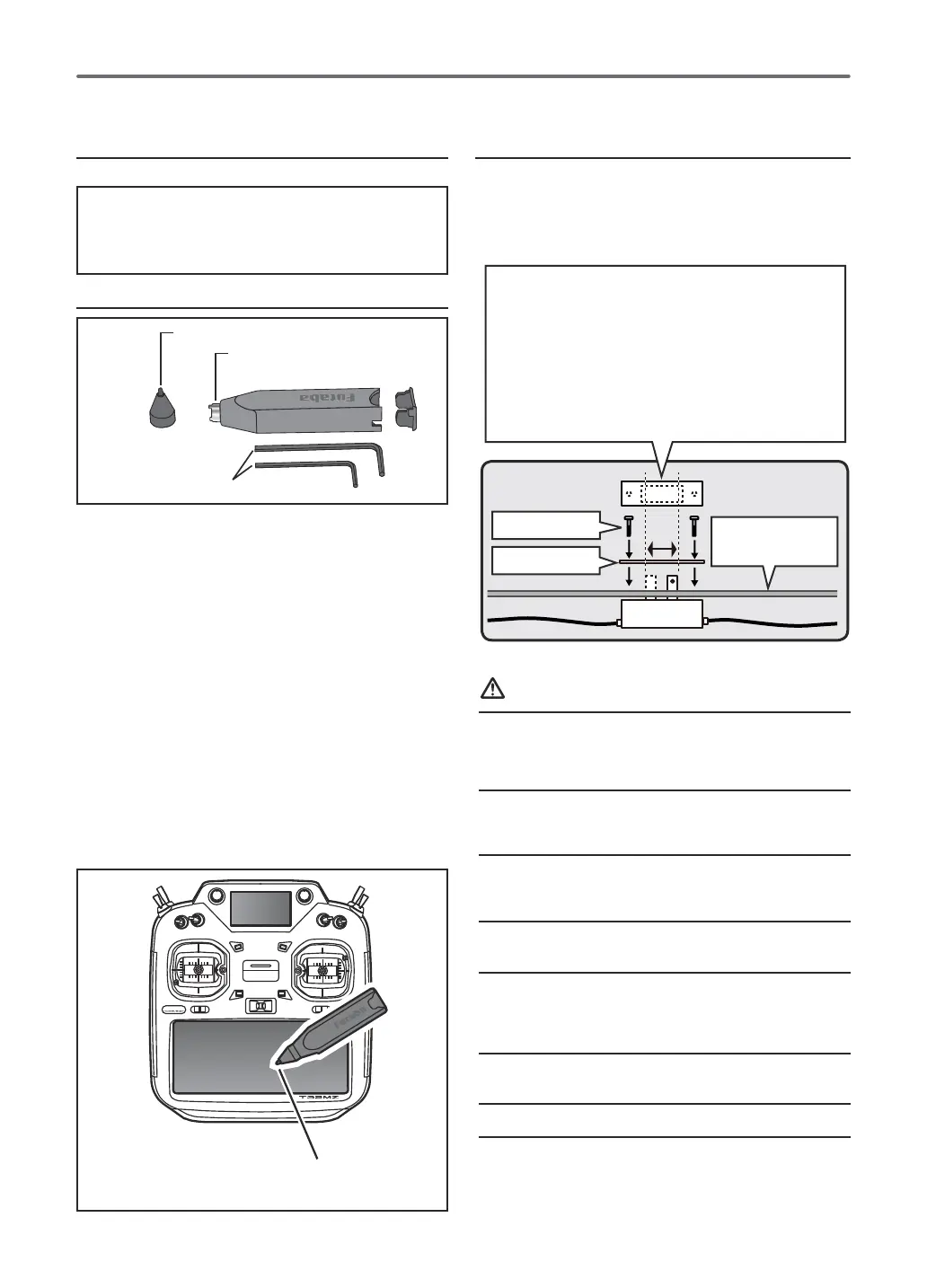

Before Use
A special toolbox is included with your T32MZ.
This allows you to make all of the mechanical
Hexagonal wrench (1.5 mm and 2.5 mm)
replacement of the switches.
Tool for removing switch nuts.
This is used when changing or replacing switches.
Stylus pen
A rubber cap is attached to the stylus pen/toolbox.
operating the touch panel. The stylus allows more
precise operation than fingers without fear of
damaging the panels surface.
●You may use this tool
as a stylus pen.
Toolbox
Receiver Switch ESW-1J
Servo (Option)
Purchase servos appropriate for their intended use.
*Analog servos may not be used when operating in the
FASSTest 12CH mode.
When operating in the FASSTest12CH mode use digital
servos, this includes all brushless and S.BUS servos.
●Tool for removing
decoration nuts
●Hex. Wrench (1.5mm and 2.5mm)
●Rubber Cap
ESW-1J connects a Futaba receiver to a battery and is
turned on and off in an FET circuit. Compared to using a
mechanical switch, it allows more current to be sent with
less loss.
When the switch is off, a slight amount of current still flows.
Unless the switch and battery are disconnected, the battery
will be damaged from excessive discharge.
There is the danger of loss of control and crashing if the
connector is disconnected by vibration and shock.
There is no charge connector in this switch.
Reverse connection will immediately destroy the receiver,
servo, etc.
As with any electronic components, proper precautions are
urged to prolong the life and increase the performance of the
ESW-1J.
Use the mounting plate from the receiver on/
off switch as a template for the cutout and screw
holes. Mount the switch on the side of the fuselage
opposite the engine exhaust, and where it won’t
be inadvertently turned on or off during handling
or storage. Be certain the switch moves without
restriction and “snaps” from ON to OFF, and that
the cutout allows full motion of the switch in both
directions.
WARNING
