Before Use
The R7108SB receiver features bi-directional communication with a FASSTest Futaba transmitter using
the S.BUS2 port. Using the S.BUS2 port an impressive array of telemetry sensors may be utilized. It also
includes both standard PWM output ports and S.BUS output ports.
*Telemetry is available only in the FASSTest 18CH/T-FHSS mode. (FASSTest 12CH mode displays only
Receiver battery voltage and Extra battery voltage.)
*The telemetry function requires the corresponding receiver.
*Each receiver has it own unique guid (globally unique identifier) or ID code for the transmitter to
remember and recognize when in use.

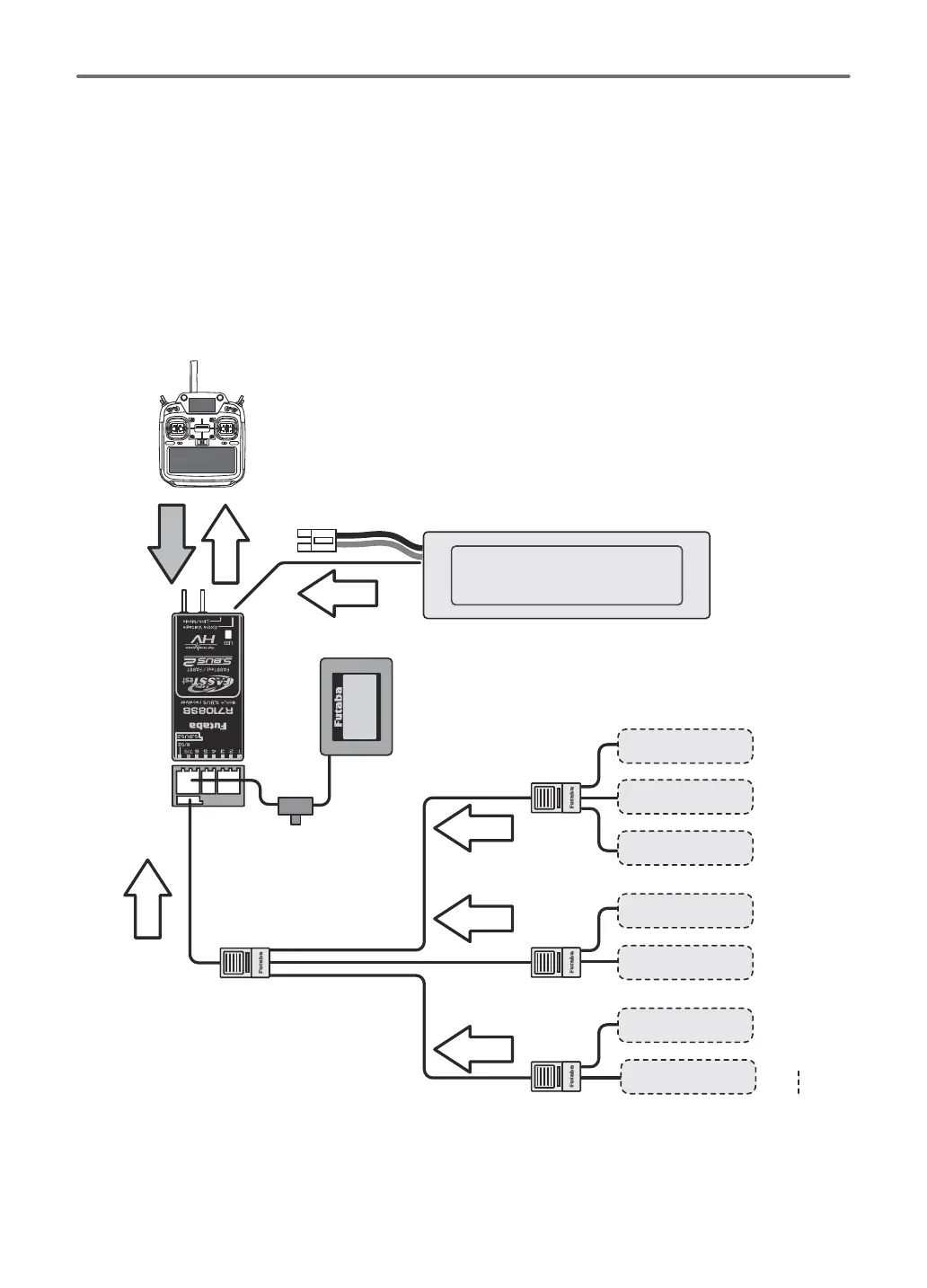

S.BUS2
Connector
Temperature
Sensor
Slot 1
Slot 2
Slot 3 ～5
Slot 6 ～7
Slot 8 ～15
Slot 16
Receiver
Battery voltage is
displayed at the transmitter.
Power battery voltage is
displayed at the transmitter.
Switch
T32MZ
HUB
HUB
HUB
HUB
Info
Info
Info
Info
Info
voltage
Signal
RPM
Sensor
Altitude
Sensor
GPS
Sensor
Airspeed
Sensor
Slot 17
Slot 31
Voltage
Sensor
***Sensor
●Telemetry sensor (sold separately)
Your aircraft's data can be checked in the
transmitter by connecting various telemetry
sensors to the S.BUS2 connector of the
receiver.
●Slot No.
Servos are classified by channel, but
sensors are classified by “slot”. Since the
initial slot number of the T32MZ is preset
at each sensor, the sensors can be used as
is by connecting them. There are 1
~
31
slots.
Info
