43

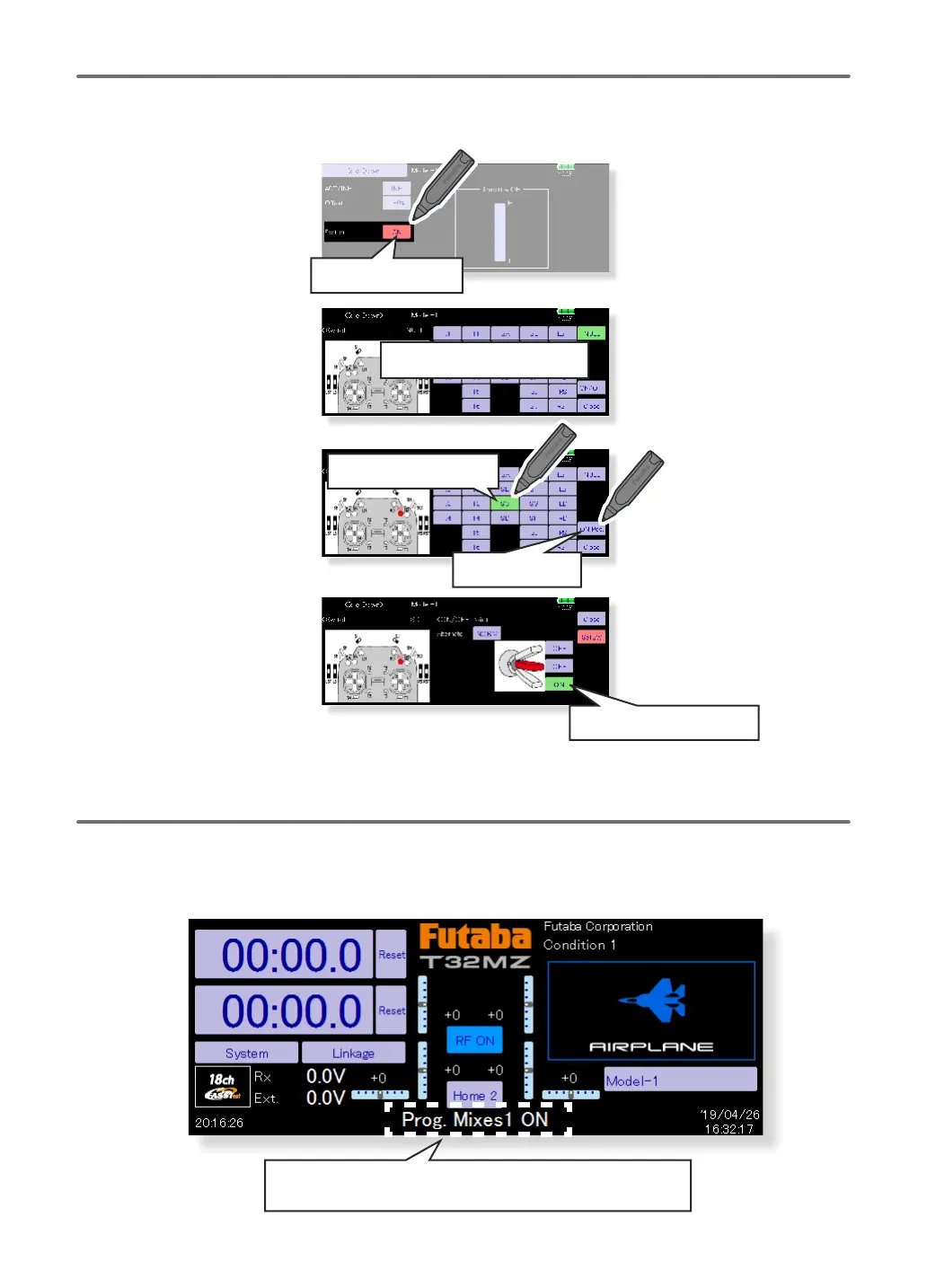

Basic Operation
Select the switch to operate the function.
is operated.
Select the switch position
Switch select screen appears
Press the switch
Press the desired switch
Press the ON Pos.
A message is displayed when the function is turned ON/OFF
.
It is displayed for 5 seconds from the time of operation.
42
44
Table of Contents
Table of Contents
2
Introduction
4
Application, Export, and Modiication
4
Storage and Disposal Precautions
9
Before Use
10
Features
10
Contents and Technical Speciications
12
Transmitter Controls
13
Cautions on Handling Antenna
13
LED Monitor
14
Toggle Switch (SA-SH)
15
Slide Lever (LST, LS, RS, RST)
16
Volume (LD, RD)
16
Back Side Switch (SI, SJ)
16
Digital Trim (T1-T6)
17
Touch Panel
17
HOME/EXIT & U.MENU/MON. Button
18
Stick Adjustment
19
Battery Exchange
22
Battery Charging
24
Microsd Card
25
Receiver R7108SB Nomenclature
27
Connector
27
Link/Mode Switch
27
Extra Voltage Connector
27
Connection of a Receiver Battery
28
Connection Example
28
R7108SB CH Mode
29
Servo(Option) / Toolbox / Receiver Switch
30
Receiver's Antenna Installation
31
S.BUS Installation
33
S.BUS2 System
34
S.BUS Device Setting
35
Telemetry System
36
Basic Operation
37
How to Turn ON/OFF the Transmitter
37
Home Screen
38
Sub-Display
39
Link Procedue (T32MZ ⇔ R7108SB)
40
How to Return to Home Screen or Go Back
42
Page of each Setting Screen
42
How to Activate the Function
42
How to Change the Number of Value
42
Switch Selection
43
Display of Operation Status
43
Home2 Screen
44
Panel Lock
44
Registration of the User's Name
45
Model Basic Setting Procedure
46
Airplane/Glider Basic Setting Procedure
46
Helicopter Basic Setting Procedure
48
Servos Connection by Model Type
52
Trainer
58
Display
61
Date and Time
62
User Name
63
Switch
64
H/W Setting
65
Sound Volume
67
Player
68
S.BUS Servo
69
Information
72
Unit System
73
Range Check
74
Servo Monitor
76
Model Select
77
Model Type
78
80
Sound
81
System Type
83
System Type Selection
83
Receiver Linking
83
Dual Receiver Function
83
Telemetry Function
83
Linking Method (T32MZ ↔ R7108SB)
84
The Example for Choosing System Type
85
Function
86
Sub-Trim
88
Servo Reverse
89
Fail Safe
90
End Point (ATV)
91
Swash Ring
94
Timer
97
Dial Monitor
99
