System Specification and Functionality
190-01810-00 GDL 82 TSO Installation Manual
Rev. 5 Page 2-5
2.3 System Interface
For interconnect details, refer to section 10.
GPS Antenna
GPS Source
Bottom L-Band Antenna
(GDL 82 with GPS only)
OR
Discrete
Failure
Annunciator
Power/Ground
Transponder
RS-232
USB
PC Config
Tool
Coax
Coax
OPTIONAL
Discrete
Anonymous
Mode Switch
Discrete
Squat/WOW
Switch
GDL 82
GPS Time Mark
Coax

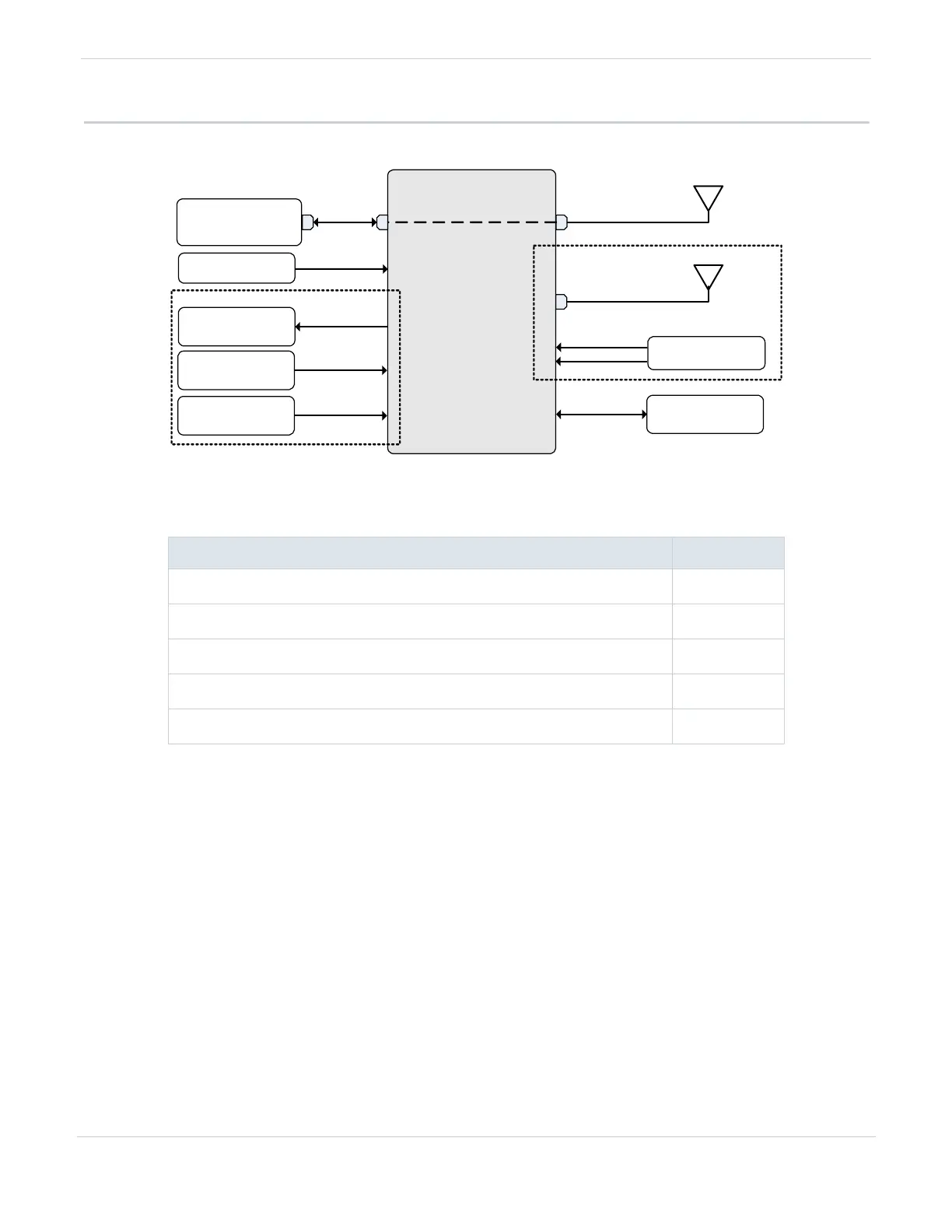

Figure 2-1 System Interfaces
Table 2-7 GDL 82 Interface Summary
INTERFACE QUANTITY
RS-232 1
Discrete active low inputs 2
Discrete active low output 1
External GPS time mark input 1
USB data port (for configuration and checkout through PC) 1
