System Configurat
ion
190-01810-00
GDL 82 TSO Installation Manual
Rev. 5
Page 7-8
7.2.5 ADS-B Page
This page prov
ides transponde
r and UAT information.
Transponder
•
Interface status
•
Active mode
•
Pressure altitude
•
Squawk co
de
•
IDENT status
UAT
•
Address
•
Flight ID
•
Air/Ground stat
us

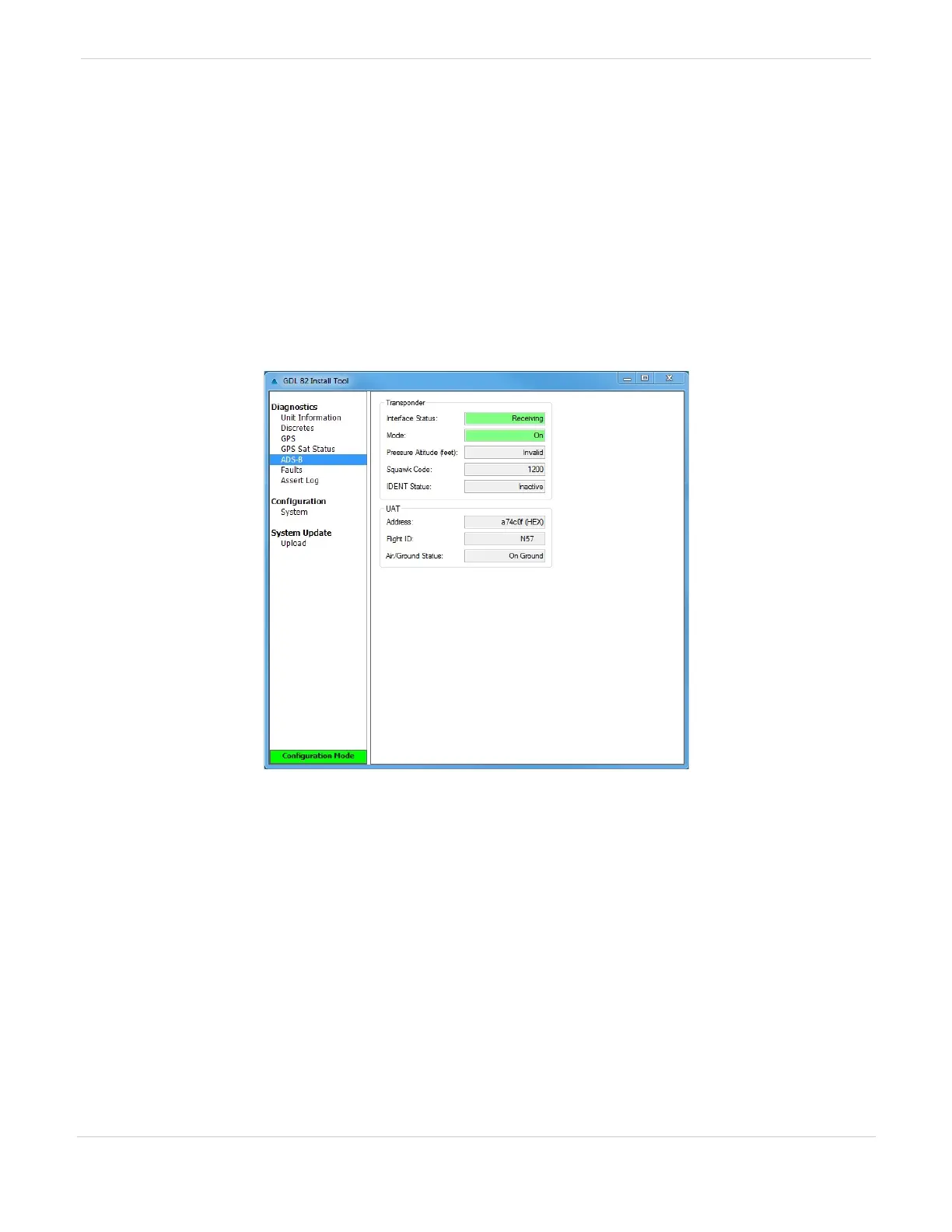

Figure 7-8 ADS-B Page
53
55
