Garmin GDL 82 User Manual

ANTENNA MASKED BY VERTICAL FIN, T-TAIL
OR DORSAL FIN. ANTENNA NOT MOUNTED
LEVEL WITH RESPECT TO THE NORMAL
FLIGHT ATTITUDE
NORMAL
FLIGHT
ATTITUDE
ANTENNA MUST BE ON
TOP OF AIRCRAFT
DISTANCE BETWEEN COM AND GPS ANTENNAS
SHOULD BE GREATER THAN 2 FEET.
GOOD
BETTER
GREATER THAN 3 INCHES AFT OF
WINDSCREEN
SIDE VIEW
Installation Planning and Considerations
190-01810-00 GDL 82 TSO Installation Manual
Rev. 5 Page 4-8

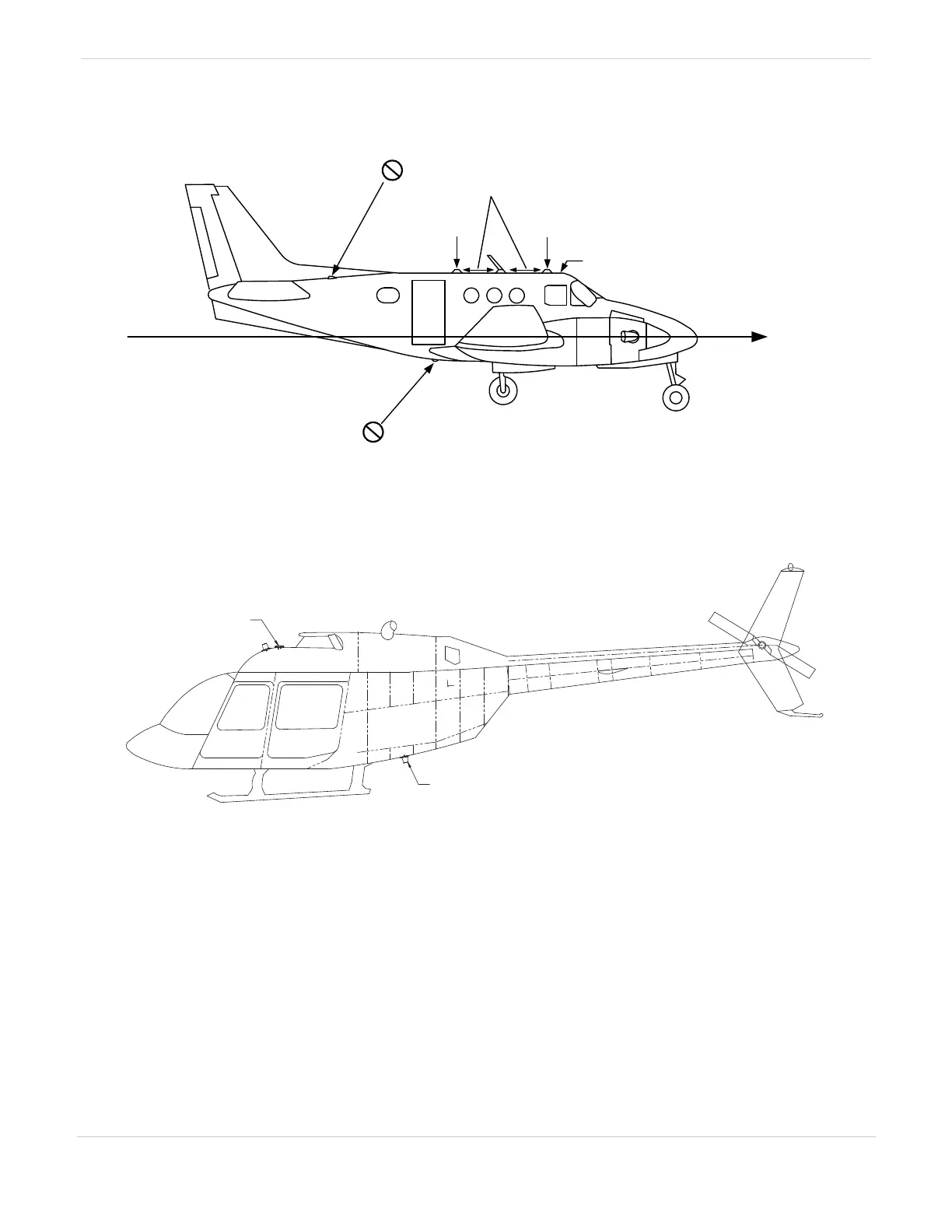

Figure 4-2 Fixed Wing GPS Antenna Mounting Considerations
GPS ANTENNA
/%$1' ANTENNA
Figure 4-3 Rotorcraft GPS Antenna Mounting Considerations
