Installation Procedures
190-01810-00 GDL 82 TSO Installation Manual
Rev. 5 Page 6-3
6.1.2 Instructions to Crimp Pins to Wires
1. Strip back approximately 0.17 inches of insulation from each wire.
2. Insert the wire (1) into the pin/socket (2) and crimp with one of the recommended crimping tools.
3. Insert the pin into the connector housing location as specified by the interconnect drawings in section 10.
4. Verify the pin is properly engaged in the connector by tugging on the wire.

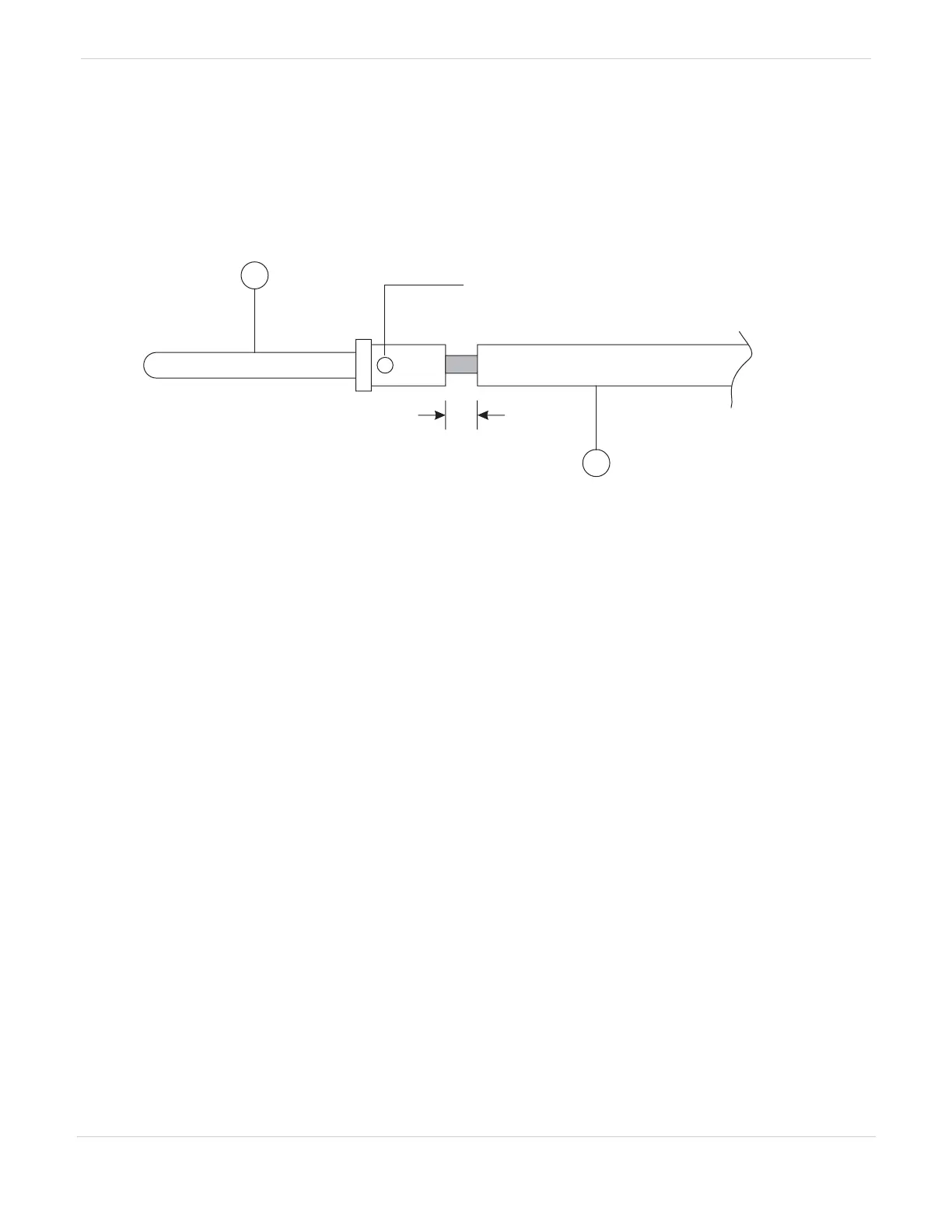

Figure 6-2 Insulation to Pin/Socket Clearance
WR
,163(&7,21+2/(:,5(0867
%(9,6,%/($)7(5&5,03,1*
