System Configuration
190-01810-00 GDL 82 TSO Installation Manual
Rev. 5 Page 7-2
7.1 GDL 8X Install Tool
The GDL 8X Install Tool provides:
• Diag
nostics – reports device, system, and faults information
• Configuration – allows selection of installation options
• System Update – allows upload of software and firmware to the GDL 82 unit
GDL 8X Install Tool Requirements:
1. To install the GDL 8x Install Tool, administrative rights may be required.
2.
Laptop or PC to run GDL 8X Install Tool. The laptop or PC requirements:
Operating system Windows 7 or later
Processor speed 850 MHz
Hard drive free memory 500 MB
RAM memory 256 MB
Winzip
®
(or equivalent application) to extract downloaded file
3. USB-A to USB-B adapter cable to interface between a computer USB-A receptacle and the GDL 82 USB-B
receptacle installed in the wiring harness. The cable length should not exceed 16 ft.

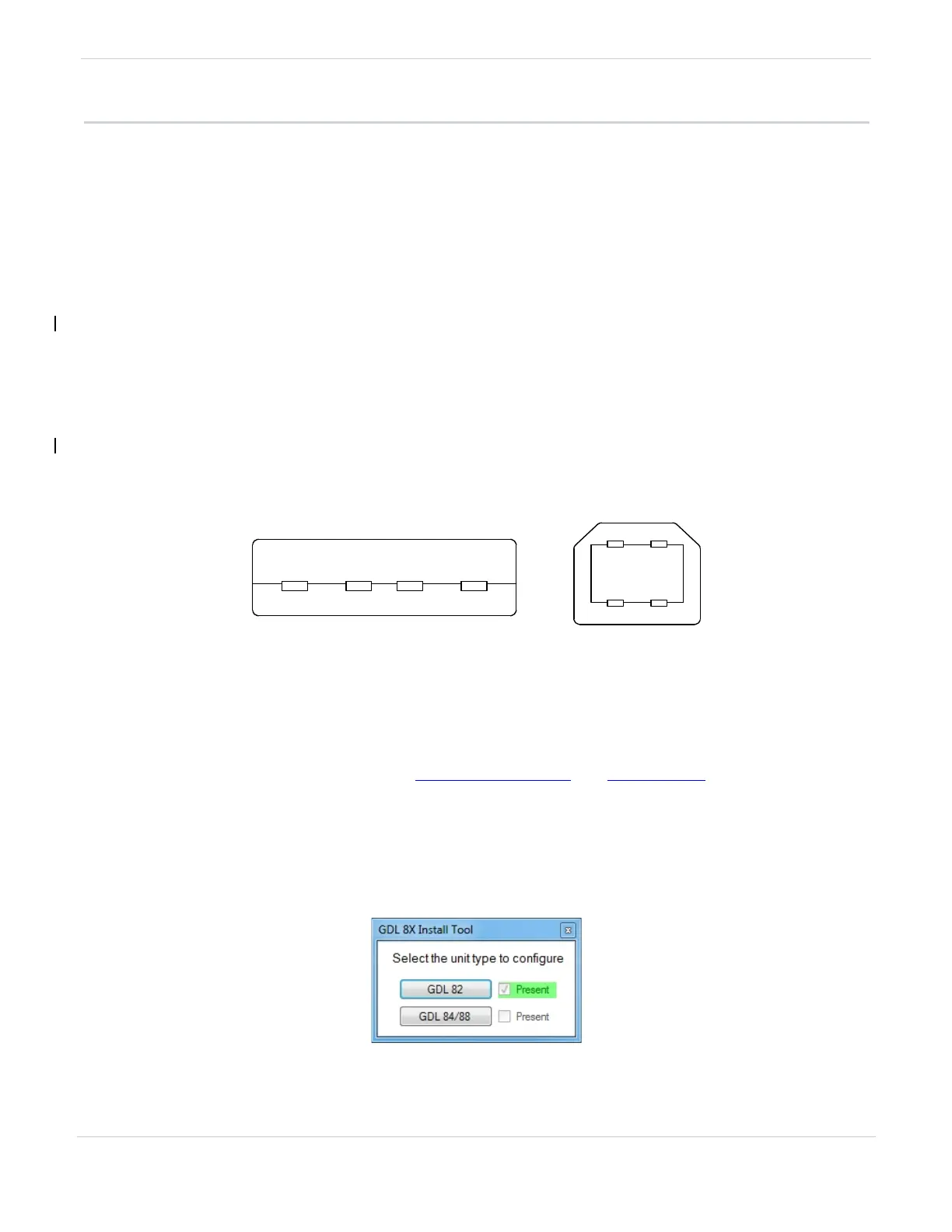

Figure 7-1 USB-A and USB-B Connectors
GDL 8X Install Tool Instructions
1. Download the GDL 8X Install Tool from the Dealer Resource Center and flyGarmin.com and install.
2. Connect the USB-A plug on the adapter cable to the computer.
3. With the GDL 82 powered down, connect the USB-B plug on the adapter cable to unit.
4. Apply power to unit.
5. Start the GDL 8X Install Tool on the computer.
6. Select GDL 82.
Figure 7-2 GDL 8X Install Tool Selection Page
