System Configurat
ion
190-01810-00
GDL 82 TSO Installation Manual
Rev. 5
Page 7-6

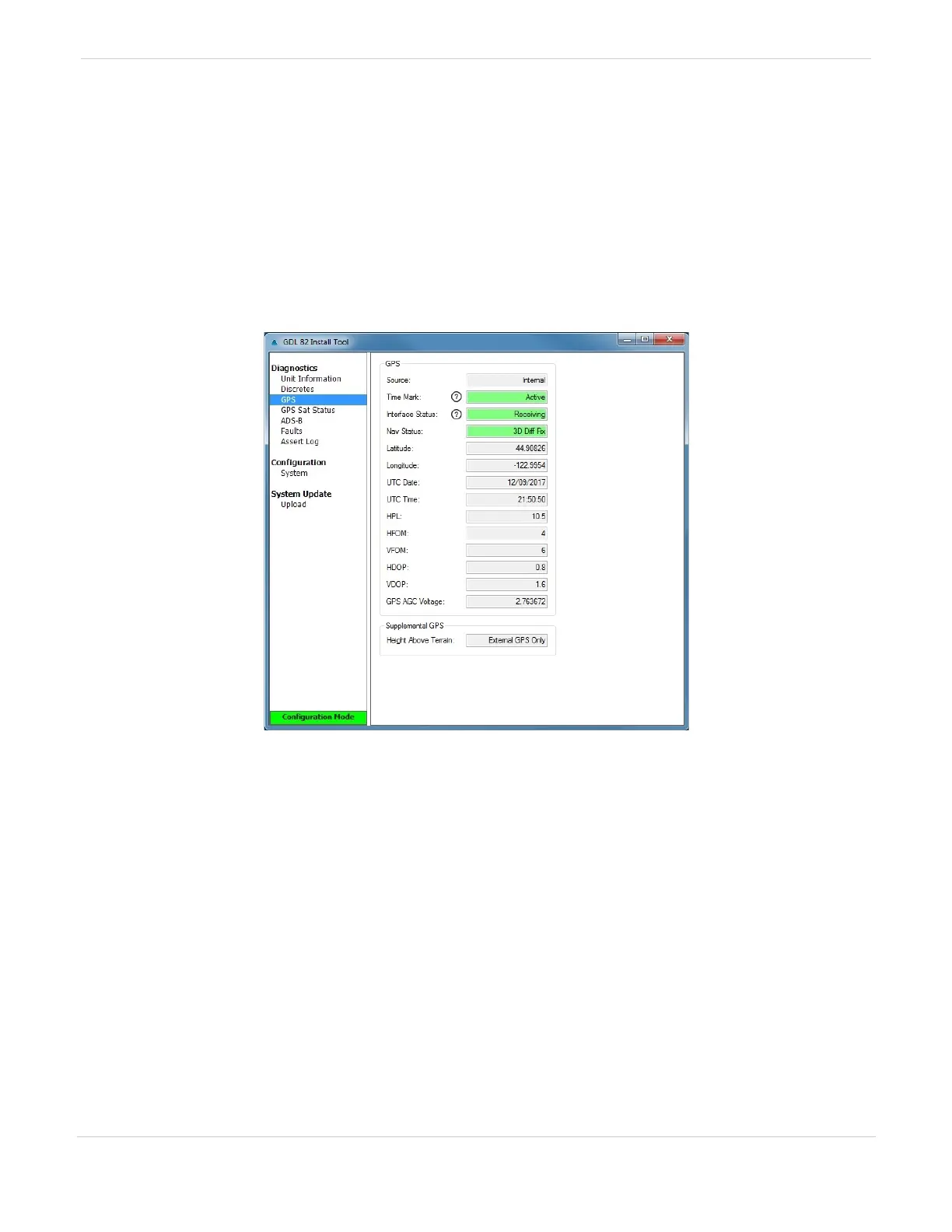

7.2.3 GPS Page
This page provides GPS information.
•
GPS source
•
Time mark
•
Interface status
•
Nav status
•
Latitude
•
Longitude
•
UTC date
•
UTC time
•
HPL
•
HFOM
•
VFOM
•
HDOP
•
VDOP
•
GPS AGC voltage
•
Height above
terrain (for exter
nal
GPS only)
Figure 7-6 GPS Page
