CHAPTER 6: SETPOINTS S5 INPUTS/OUTPUTS
350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 6–167

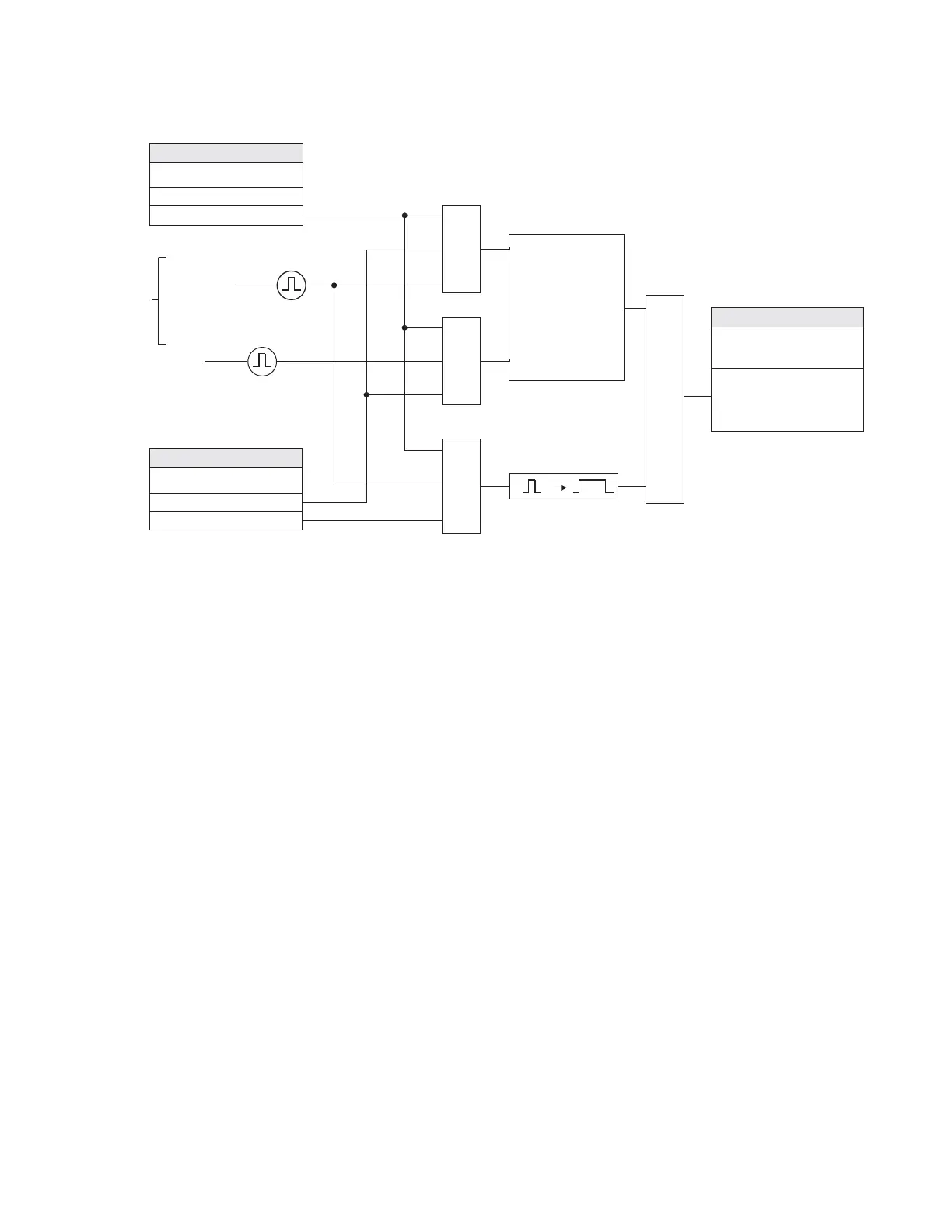

Figure 6-72: Virtual inputs scheme logic
Remote inputs
Remote Inputs are available for programming under the EnerVista 3 Series
Setup
software. Refer to the 3 Series Communications Guide for details.
SETPOINT
V INPUT FUNCTION
Disabled = 0
Enabled = 1
AND
SETPOINT
V INPUT 1 TYPE
Latched
Self-Reset
AND AND
“VirtualInput1toON=1"
“Virtual Input 1 to OFF = 0"
S
R
LATCH
OR
ACTUAL VALUES
V INPUT 1 NAME:
(Operand)
VInput1Status
897774.cdr
From
Control
menu
