CHAPTER 2: INSTALLATION MECHANICAL INSTALLATION
350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 2–11
Drawout unit withdrawal and insertion

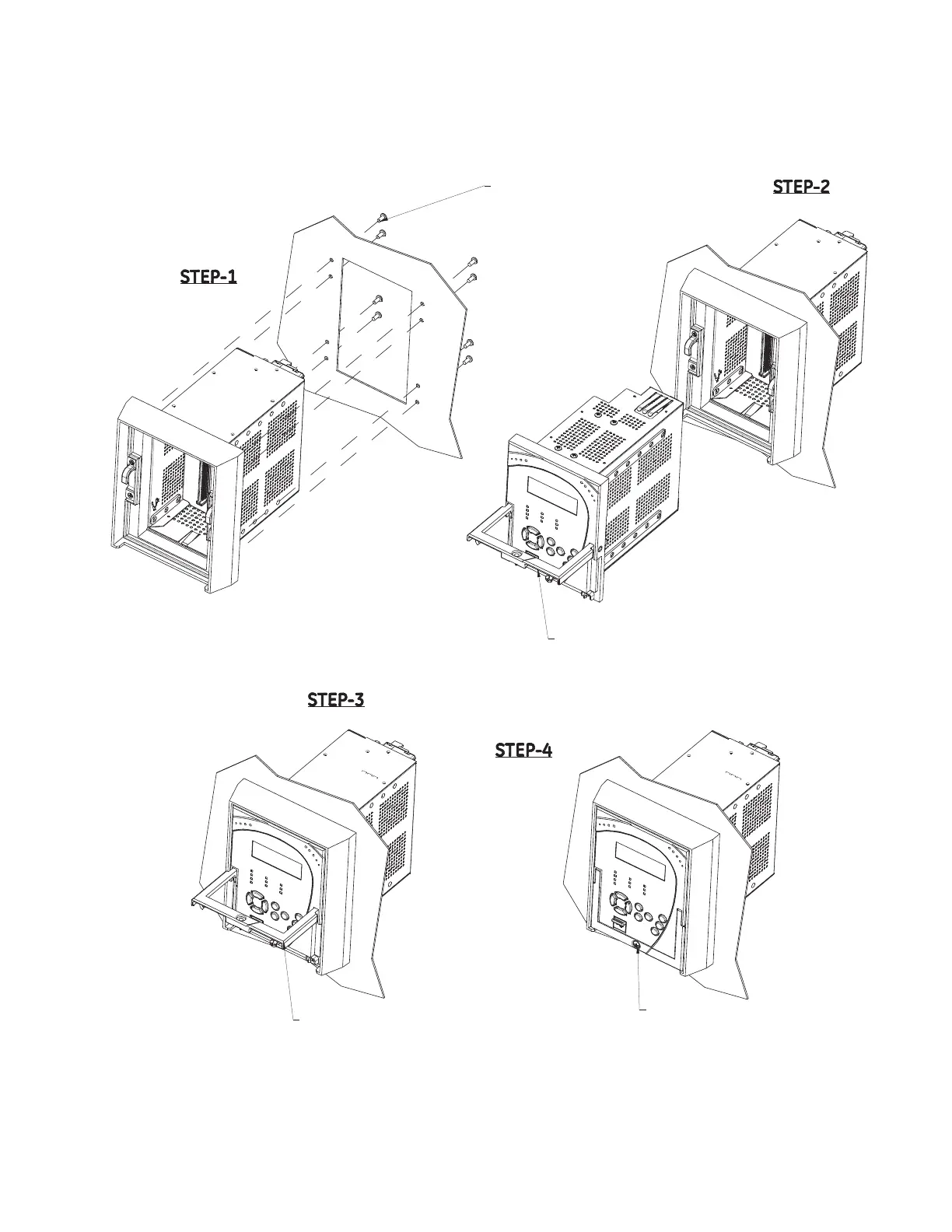

Figure 2-12: Unit withdrawal and insertion diagram
KEEP THE HANDLE IN ITS ROTATED
POSITION UNTIL THE DRAW-OUT UNIT
IS INSERTED COMPLETELY
PUSH THE HANDLE DOWN AND TIGHTEN
THE SCREW UNTIL THE HANDLE IS PARALLEL
WITH THE FRONT PANEL SURFACE
THE HANDLE MUST BE ROTATED 90
WHILE SLIDING THE
DRAW-OUT
UNIT INTO THE CAPTIVE UNIT
⁰
8 - 32X3/8IN P/HD PHIL BLK
GE PART # 1408-0306; (QTY:8)
TIGHTENING TORQUE: 15 IN LB
