2–8 350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
MECHANICAL INSTALLATION CHAPTER 2: INSTALLATION
Mounting using the
S1/S2/MDP/IAC or
SR735 adapter plate
CAUTION:
To avoid the potential for personal injury due to fire hazards, ensure the unit is
mounted in a safe location and/or within an appropriate enclosure.
The adaptor plate for mounting the 350 directly over the existing S1/S2/MDP/IAC or SR735
mounting plate, is shown below:

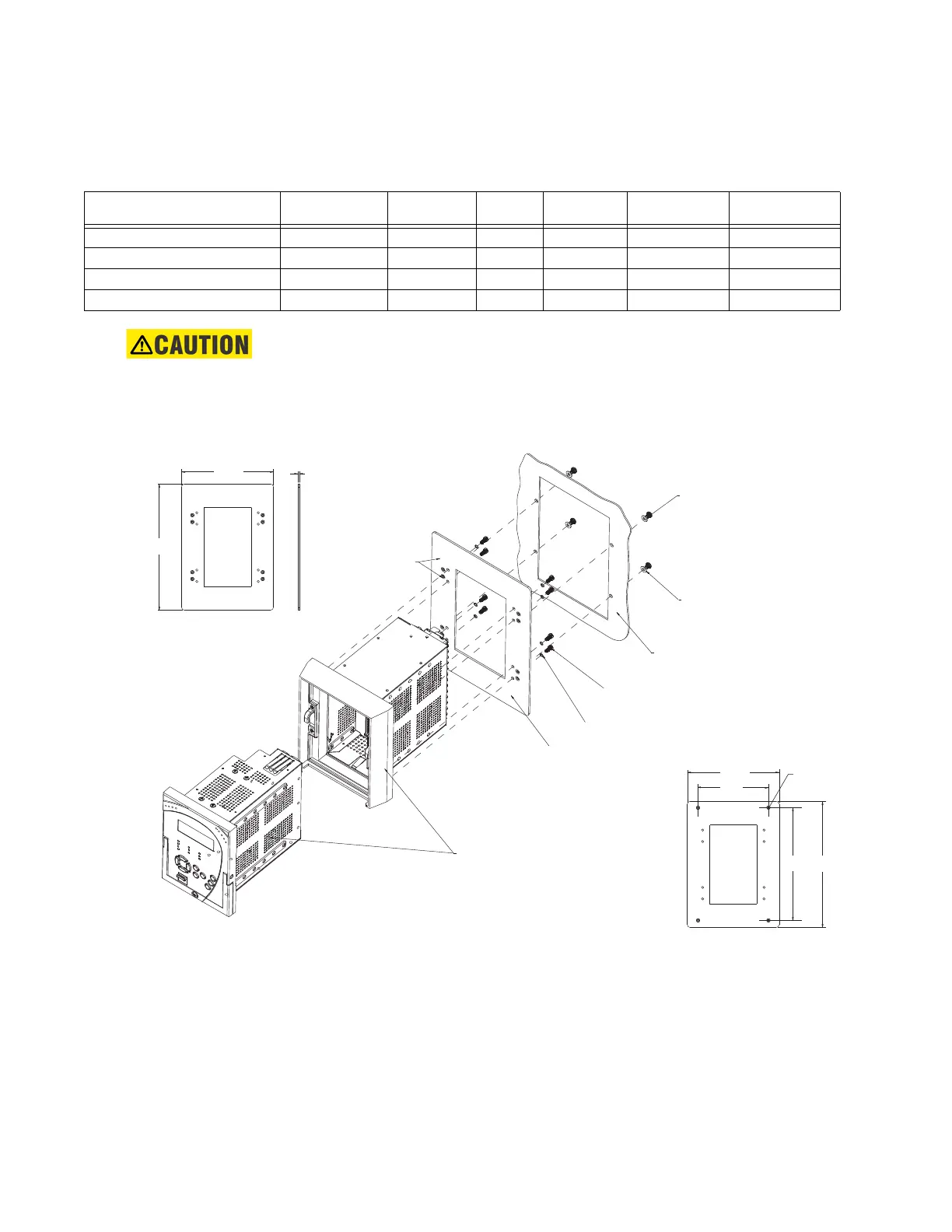

Figure 2-9: Adaptor Plate mounting - Drawout case
Retrofit Kit Kit Part Number Adapter Plate Washer
Lock (8)
Machine
Screws (8)
Flat Washers (4) Screws with ext.
Lock Washers (4)
350 Retrofit Kit for 735 1819-0103 1463-0012 1430-0003 1408-0015 1430-0039 1410-0112
350 Retrofit Kit for IAC Relay 1819-0102 1463-0011 1430-0003 1408-0015 1430-0039 1410-0112
350 Retrofit Kit for MDP Relay 1819-0101 1463-0011 1430-0003 1408-0015 1430-0039 1410-0112
350 Retrofit Kit for S1/S2 Cut-Out 1819-0100 1463-0011 1430-0003 1408-0015 1430-0039 1410-0112
350 ADAPTER PLATE FOR S1, S2, MDP, & IAC
GE PART#: 1463-0011
QTY: 1
ASSEMBLY INSTRUCTIONS:
- MOUNT THE ADAPTER PLATE IN THE CORRECT ORIENTATION
(FRONT SURFACE OUTSIDE) PER THE VIEW. MAKE SURE
THE MOUNTING SCREWS (GE PART# 1410-0112) DO NOT
PENETRATE THROUGH THE ADAPTER PLATE FRONT SURFACE.
- MOUNT THE CAPTIVE UNIT WITH THE ADAPTER PLATE.
- SLIDE AND LOCK THE DRAWOUT UNIT INTO THE CAPTIVE UNIT.
350 DRAWOUT & CAPTIVE UNIT
WASHER LOCK ZINC NO. 8
GE PART#: 1430-0003
QTY: 8
18-8 FILLISTER HEAD PHILLIPS MACHINE SCREW
8-32 THREAD, 3/8” LENGTH
GE PART#: 1408-0015
QTY: 8
TIGHTENING TORQUE: 15 LB-IN
EXISTING PANEL CUT-OUT FOR
S1, S2, MDP, OR IAC
18-8 STAINLESS STEEL FLAT WASHER
NO. 10L SZ, .438” OD, .028 - .036” THK,
GE PART#: 1430-0039
QTY: 4
NOTE: USE SCREW & ONE FLATWASHER FOR PANEL
THICKNESS OF 0.090”. USE ADDITIONAL WASHERS OR
REMOVE WASHERS FOR THINNER OR THICKER PANELS.
THIS PROVIDES MOUNTING FOR ADAPTER PLATE FOR
PANEL THICKNESS RANGE BETWEEN 0.06” AND 0.125”.
SCREW 10-32X1/4” PAN HD PHIL
18-8SS WITH EXTERNAL LOCK WASHER
GE PART#: 1410-0112
QTY: 4
TIGHTENING TORQUE: 22 LB-IN
SURFACE WITH FLUSH NUTS
IS THE FRONT SURFACE OF
THE ADAPTER PLATE
FRONT SURFACE
350 ADAPTER PLATE
FOR S1, S2, MDP, & IAC
11.000”
279.4 mm
8.000”
203.2 mm
0.114”
2.9 mm
350 ADAPTER PLATE
FOR SR735
11.000”
279.4 mm
8.000”
203.2 mm
6.123”
155.5 mm
9.750”
247.7 mm
#10-32 NUT
QTY: 4
OR
350 ADAPTER PLATE FOR SR735
GE PART#: 1463-0012
QTY: 1
- THIS STEP IS FOR SR735 REPLACEMENT ONLY: CREATE 4 HOLES
(0.250” DIA) ON EXISTING PANEL AT #10-32 NUT LOCATION SHOWN IN
ADAPTER PLATE AT BOTTOM RIGHT.
To Next Page
