CHAPTER 2: INSTALLATION MECHANICAL INSTALLATION
350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 2–19
Loop sensor
installation
The loop sensor transparent sensor fiber has a single connector on either end. The sensor
fiber extension has a duplex connector on one end, two single connectors on the other
end, and comes with two single bulkhead connectors. Both come in custom lengths, which
can be ordered to fit your installation.

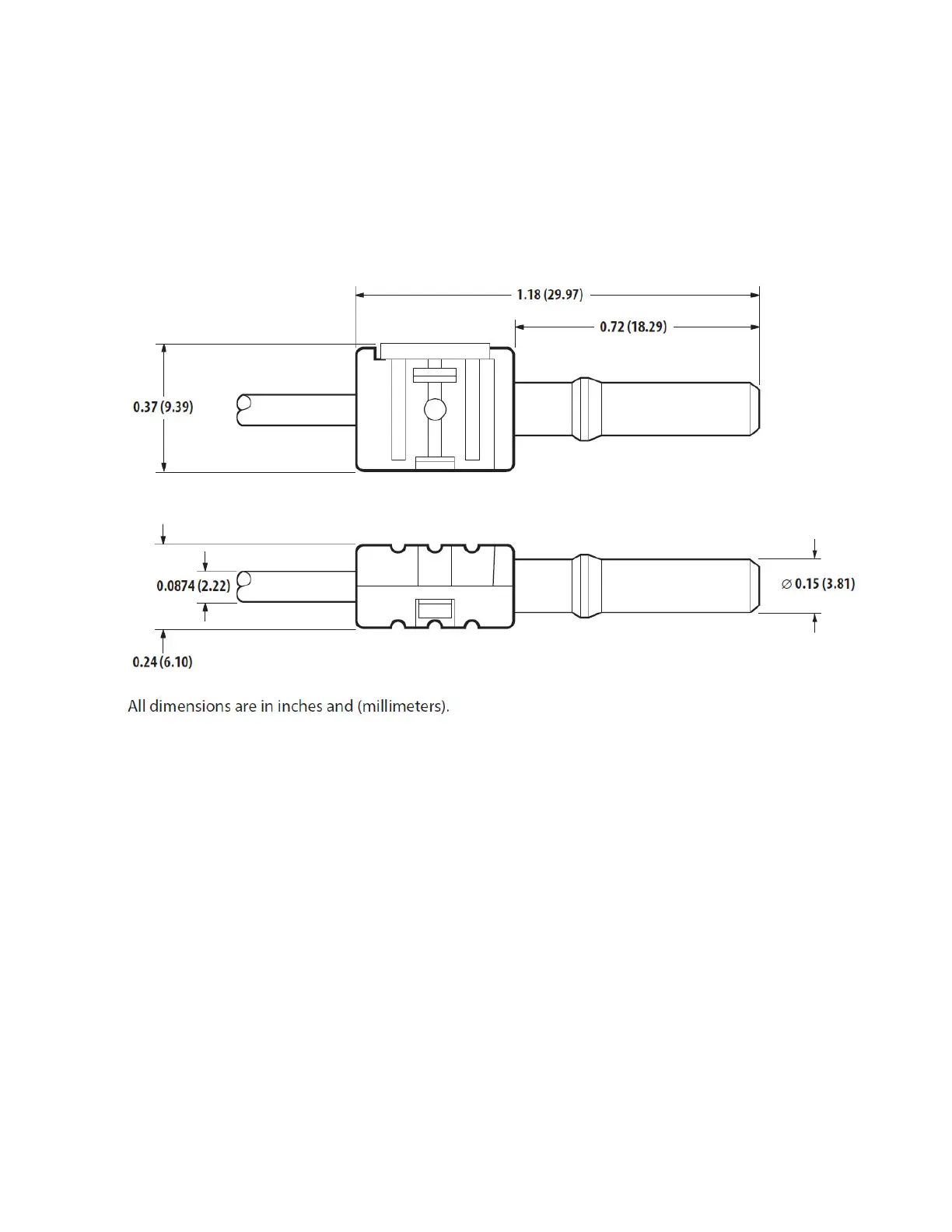

Figure 2-21: Single connector dimensions (loop sensor, and sensor fiber extension for
loop sensor)
