CHAPTER 3: INTERFACES SOFTWARE SETUP
350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 3–21

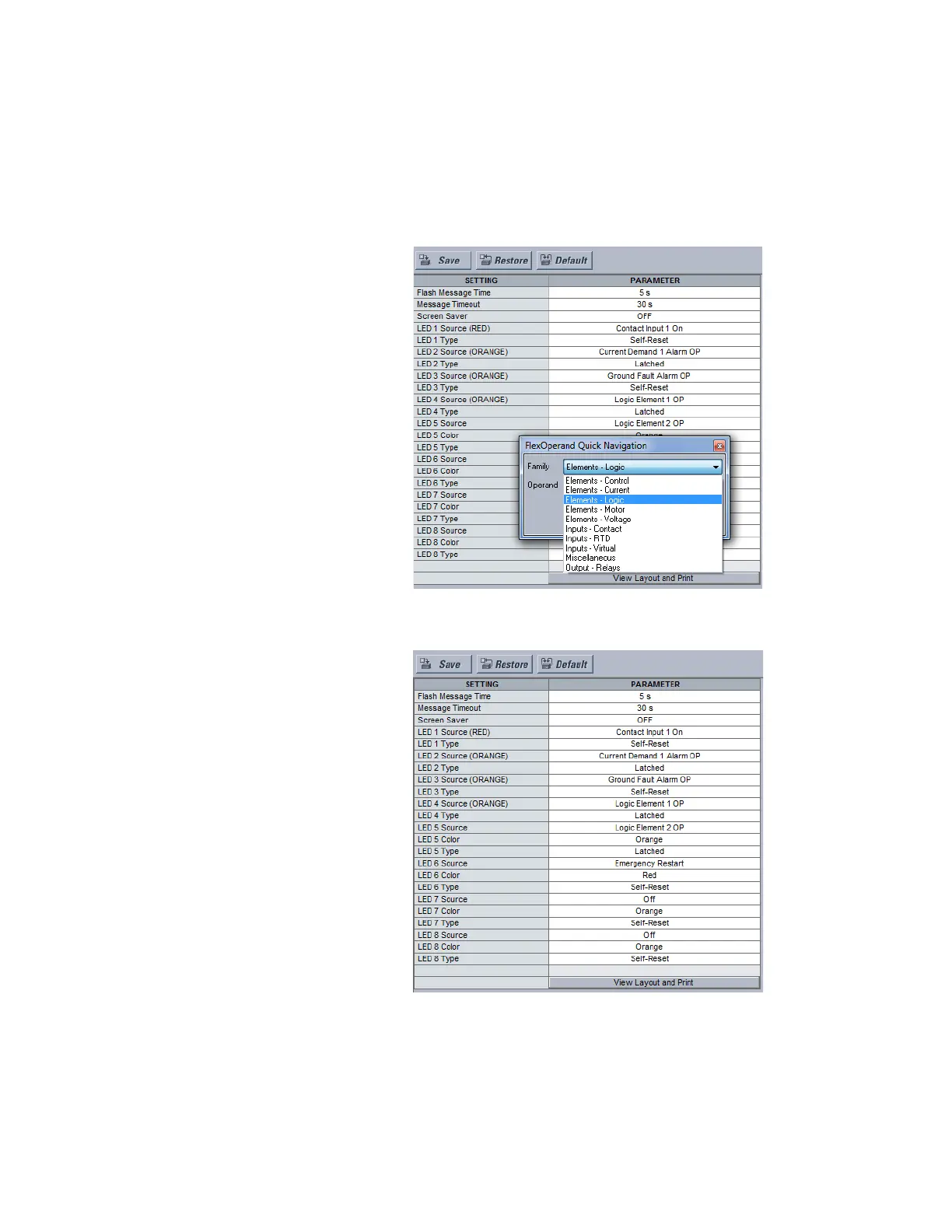

Setting
programmable LEDs
Front panels with programmable LEDs have eight LEDs that are off by default, and must
be set to a source signal and type. Four of these LEDs can also be set to different colors.
1. Establish communications with the relay.
2. Select the Setpoint > S1 Relay Setup > Front Panel menu item.
3. Select an LED Source setpoint by clicking anywhere in the parameter box beside an
LED Source label. This opens a Quick Navigation window.
4. Select a Type for the LED (Latched or Self-Reset), and a Color if applicable.
5. Repeat this process for all programmable LED Source, Type, and Color parameters.
6. In the Setpoint > S1 Relay Setup > Front Panel dialog box, click Save to save the
values into the 350 . Click YES to accept any changes. Click Restore to retain previous
values. Click Default to restore Default values (all LEDs Off and colors Orange).
7. Click View Layout and Print to create a printable label for the front panel showing the
programmable LED settings. Edit LED names manually by clicking the LED label and
entering up to 20 characters. (Manual edits can be printed, but are not saved.)
