– 21 –

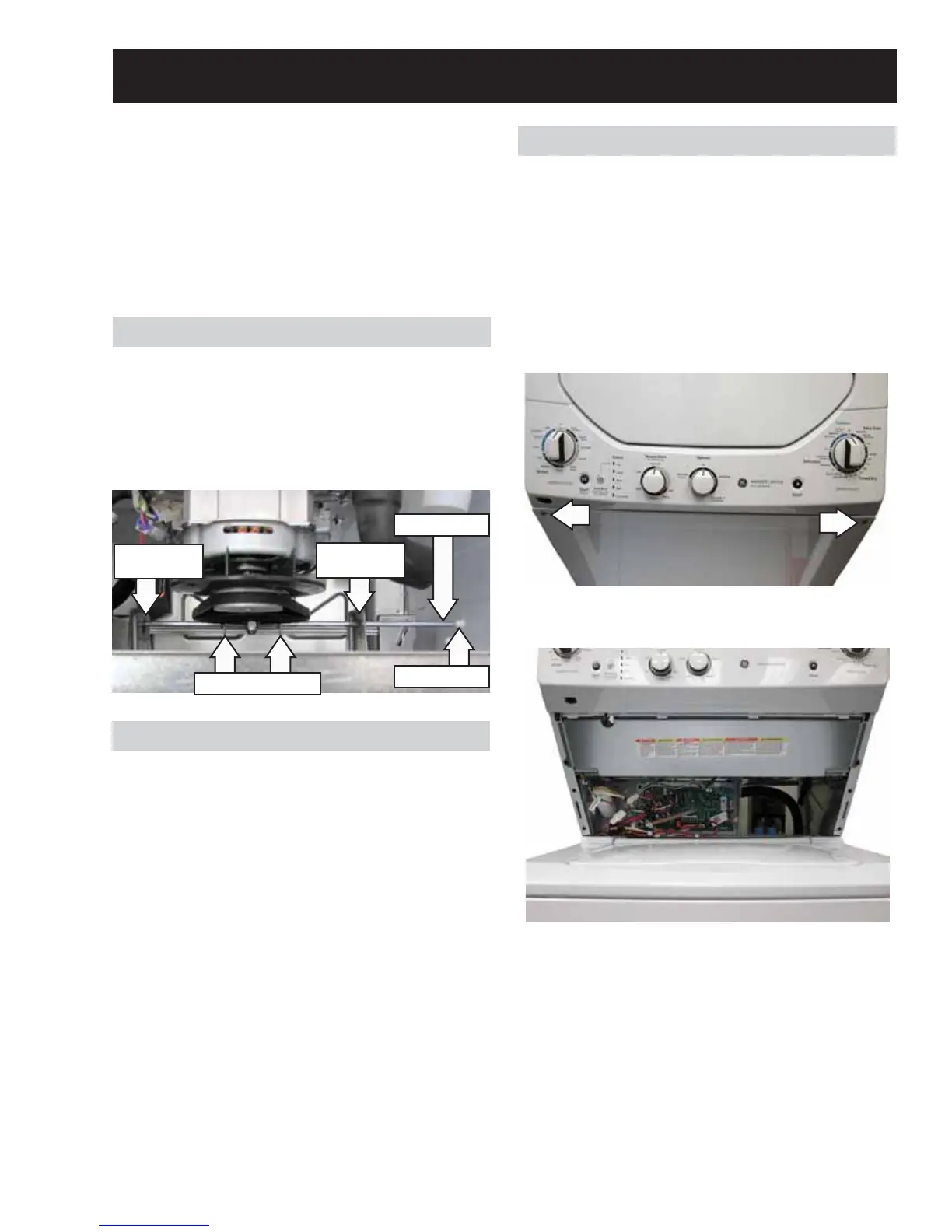

It is necessary to remove the service panel to
access the mini-manual, water pressure sensor,
washer control board, and fuses. The service
panel is attached to the cabinet with two Phillips-
head screws.
Service Panel Removal
1. Remove one screw from the top left and top
right corners of the service panel.
2. Lift the service panel and pull it forward to
release the panel from the cabinet.
Components
WARNING: Sharp edges may be exposed when
servicing the laundry center. Use caution to
avoid injury. Wear Kevlar gloves or equivalent
protection.
NOTE: Combined Phillips-head/square-drive
screws are utilized throughout this appliance.
Either Phillips or square-drive screwdrivers can
be used to extract or install these screws.
The rod is inserted and removed through a hole
located on the lower right side of the cabinet and
now passes behind the transmission.
The shipping rod passes through the chassis rod
brackets and the platform brackets.
To level the washer, tilt the washer forward to lift
WKHUHDUOHJVRႇWKHÀRRUWKHQJHQWO\VHWLWEDFN
down. The rear leveling legs are contained in an
assembly and will level the rear of the washer
left to right. Then adjust the front leveling legs
to level the washer front to back and left to right
across the front. Using a 9/16-inch open-end
wrench, tighten the lock nut on each front leg
¿UPO\DJDLQVWWKHEDVH
Rod Inlet Hole
Chassis Rod
Bracket
Shipping Rod
Chassis Rod
Bracket
Platform Brackets
6KLSSLQJ5RG
/HYHOLQJ7KH:DVKHU
Service Panel
