Disconnect
The washer buttons and LED assembly contains
the start/pause and fabric softener push buttons
and the LED status lights.
User Interface Removal
1. Remove the service panel and heat shield.
(See Control Panel and Washer Selector
Switches, both in this section of the service
guide).
2. Place the control panel in the service position.
(See Control Panel in this section of this
service guide.)
3. Disconnect the wire harness attached to the
User Interface board.
4. &DUHIXOO\UHOHDVHWKH¿YHORFNWDEVDQGSXOO
the assembly from the control panel.

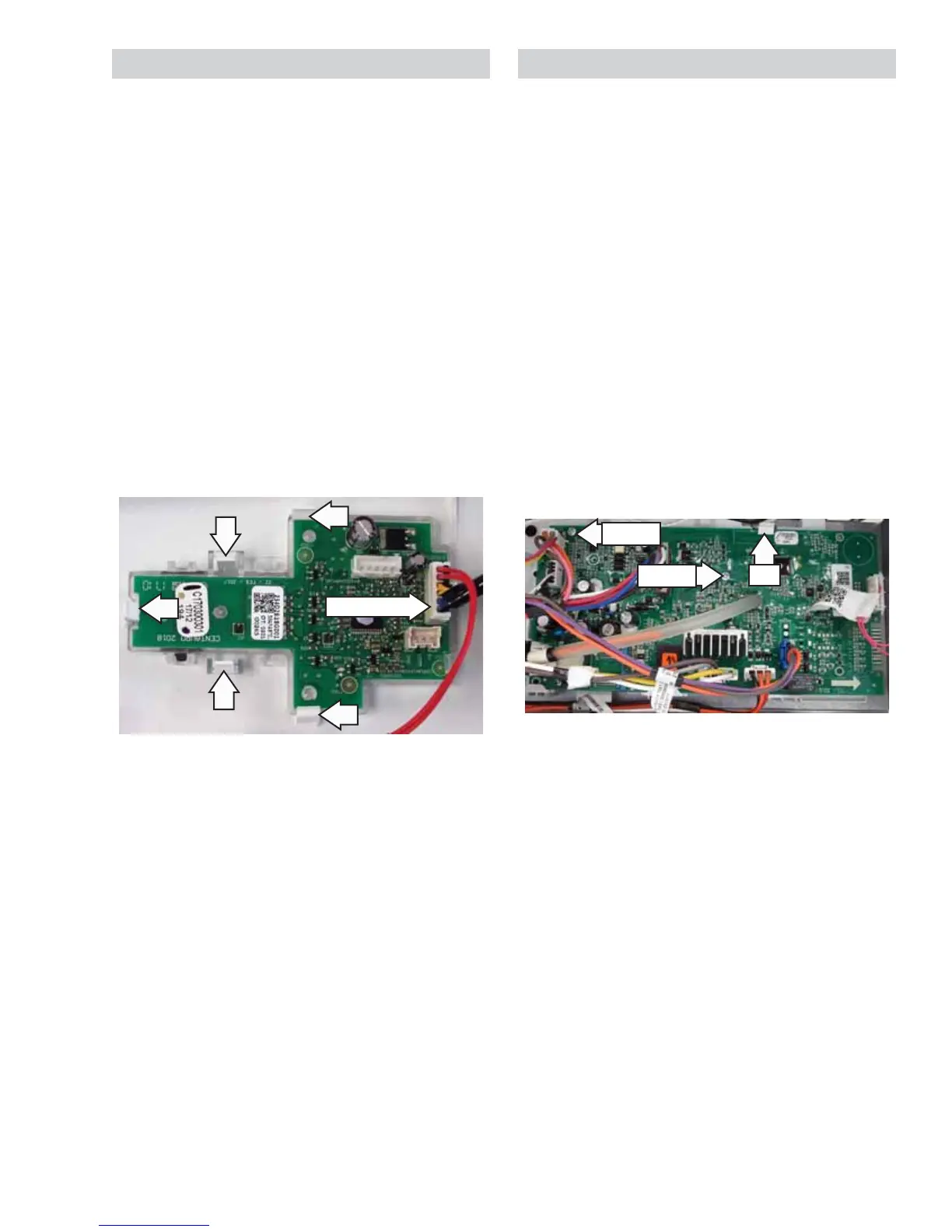

User Interface Board Main Board
The main board is located behind the service
panel. It supplies power to all of the washer
components. The pressure sensor is also
mounted to the main board.
Main Board Removal
1. Remove the service panel (see Service
Panel Removal in this section of the service
guide).
2. Remove the pressure sensor hose from the
main board. This is done by grasping the
hose where it connects to the board, rotate
WKHWXEHZKLOHDWWKHVDPHWLPHSXOOLQJLWRႇRI
the sensor. CAUTION: Do not try to pull the
KRVHVWUDLJKWRႇDVLWPD\EUHDNWKHSUHVVXUH
VHQVRUSRVWRႇRIWKHERDUG
3. Disconnect all connecters from the main
board.
4. Remove Phillips-head screws securing the
main board to it housing.
5. Push up on the white tab at the top right of
the main board and pull the board out of the
board support assembly.
Screw
Screw
Tab
