– 56 –

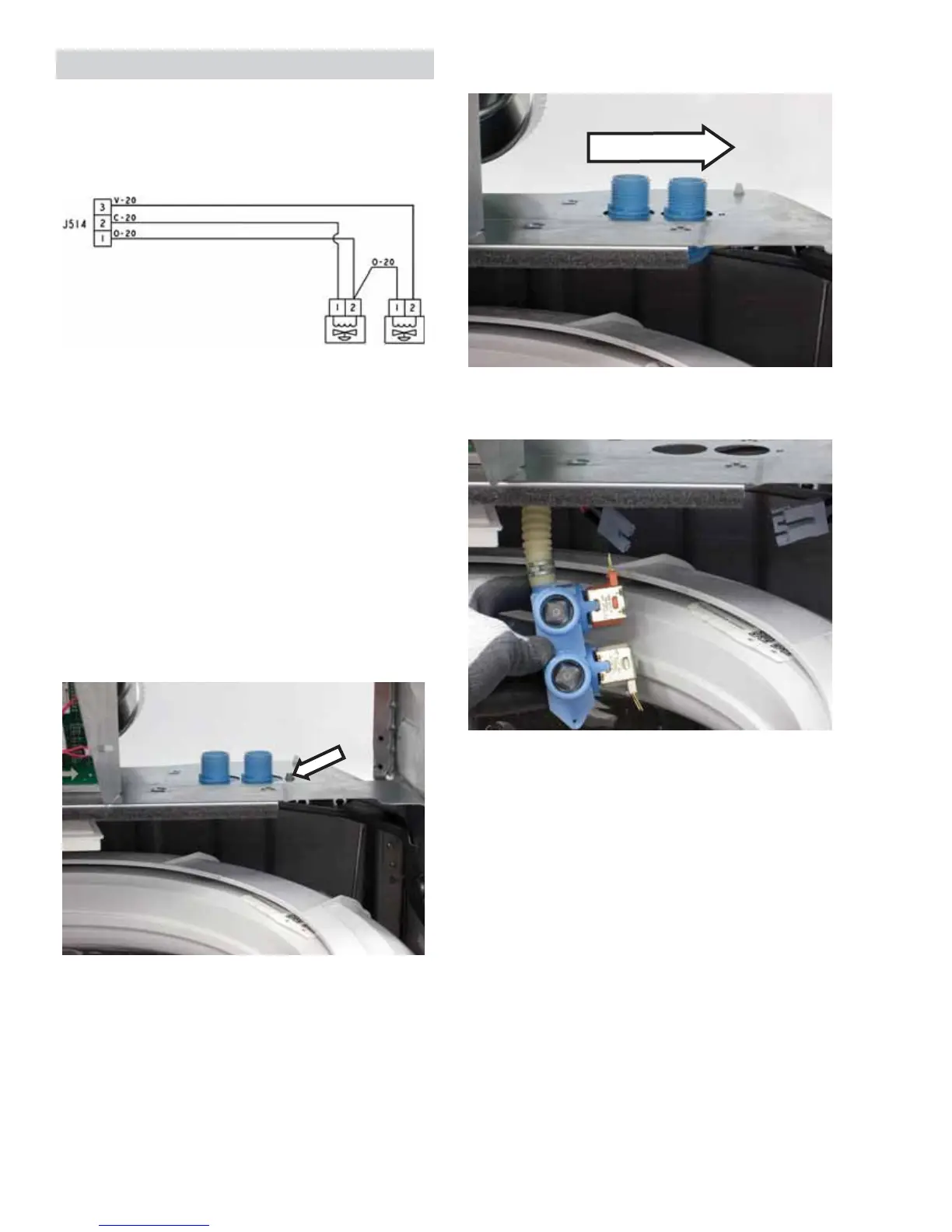

Each water valve coil has an approximate
resistance value of 1.1k ohm. This can be
measured from the main board J514 connecter
pins 1 to 2 and 1 to 3.
Water Valve Removal
1. 7XUQRႇWKHZDWHUVXSSO\WRWKHDSSOLDQFH
1. Remove the service panel.
2. 5HPRYHWKH¿OOKRVHVIURPWKHZDWHUYDOYH
3. Although the top cover assembly does not
need to be removed, it has been removed
here for better viewing. (See Top Cover
Assembly in the Washer Components
section of this service guide.)
4. Remove one 1/4-inch hex-head screw
securing the water vale to the bracket.
5. Slide the water valve to the right to drop
through the opening.
6. 'LVFRQQHFWKDUQHVVFRQQHFWHUVDQGWKH¿OO
funnel hose from the water valve.
Slide Right
Water Valve
To Next Page
