– 9 –

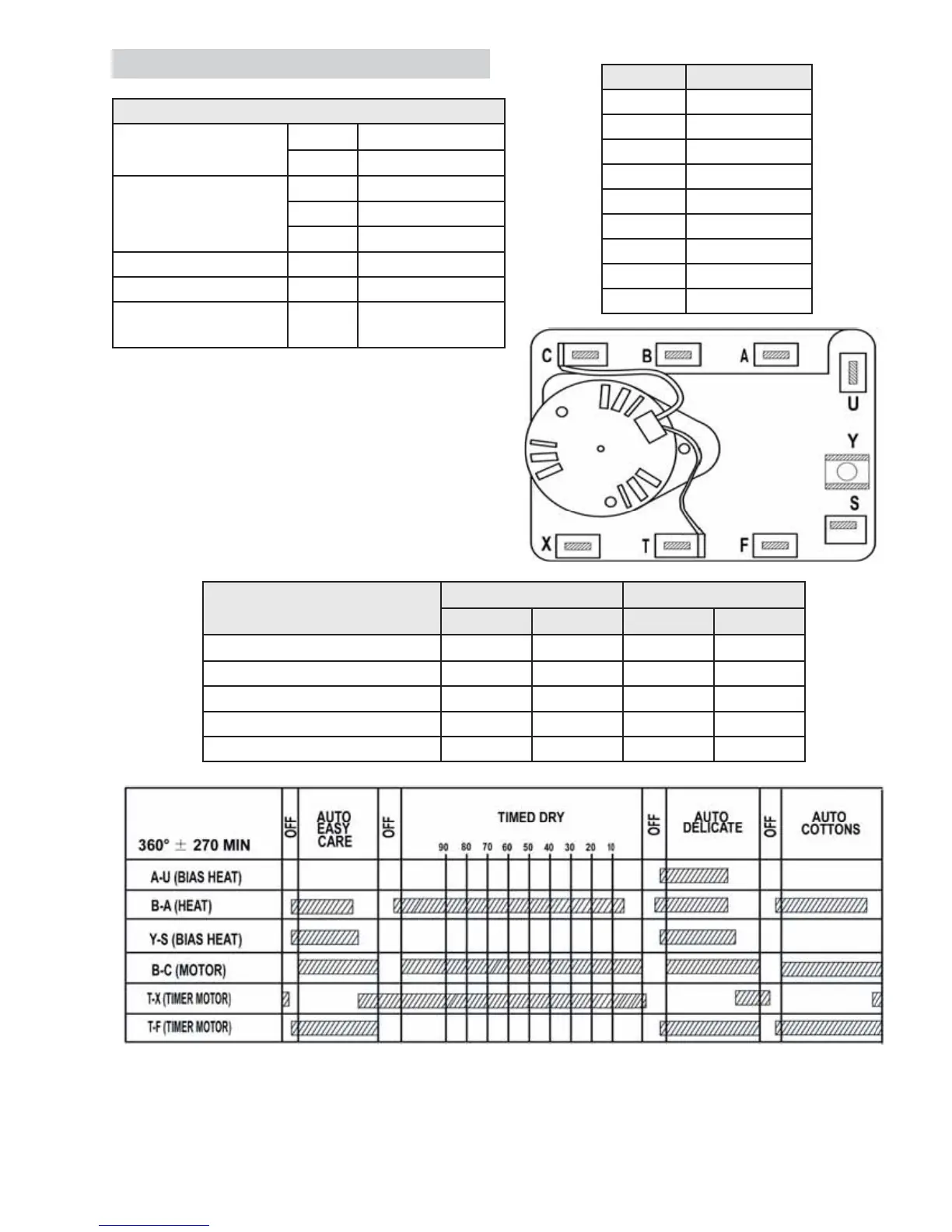

:LQGLQJV&RLOV5HVLVWDQFH9DOXHV*DV

Main Drum Motor

Start



Run



Gas Valve

Main 

Booster 

Safety 

,JQLWHU - #

Timer Motor - 3384 - 3816

,QOHWOutlet

Biased Thermostats

-9k

Thermostat

Temperature °F Temperature °C

Open Close Open Close

Drum Outlet

130 +/- 5

120 +/- 6 55 +/- 3 49 +/- 3

Control Inlet 210 +/- 5 180 +/- 6 99 +/- 3 82 +/- 3

Safety 27" Models 280 +/- 5 240 +/- 12 138 +/- 4 116 +/- 7

Safety 24" Models 300 +/- 5 260 +/- 12 184 +/- 4 127 +/- 7

+LJK/LPLW 315 +/- 8 250 +/- 15 157 +/- 6 121 +/- 9

Terminal Wire Color

C Pink

U Brown/Yellow

Y Yellow

X Yellow

A Orange

T Tan

S Blue

B Red

F Not Used

Gas Dryer
