– 32 –

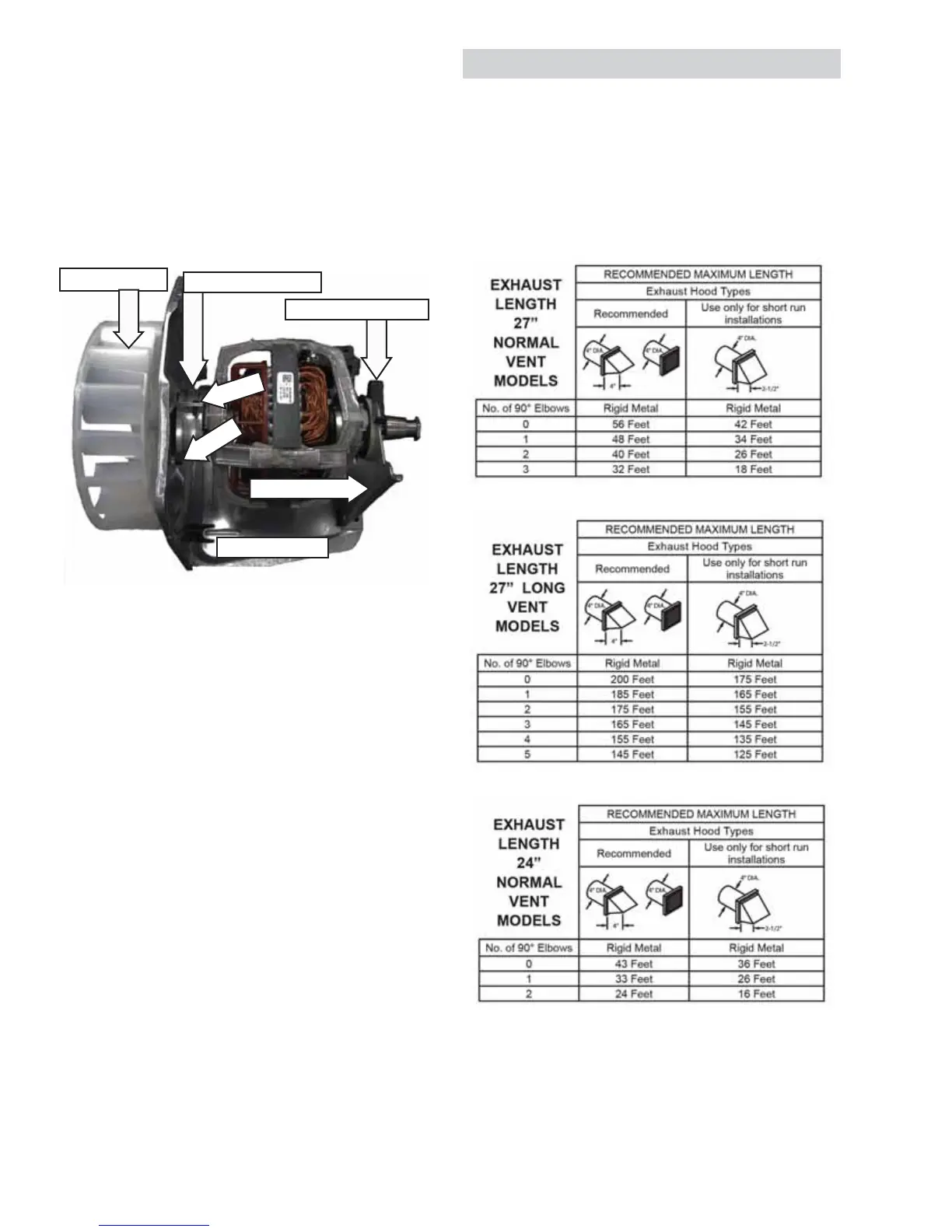

14. Compress and remove the rear motor strap
from the motor support.
Note the position of the front motor strap. Loosen
the two 1/4-in. hex-head screws and remove the
front motor strap from the motor.
Also, when installing the motor to the motor
bracket, install the motor with the motor harness
terminals at the 9:30 o'clock position when
looking at the machine from the front.
1 of 2
Rear Motor Strap
Front Motor Strap
Motor Bracket
Motor Support
1 of 2
Blower Wheel
The long vent and blower motor was designed
to be used where straight run venting can reach
lengths up to 200 feet. Depending on how
many elbows and type of vent hood used, will
determine the maximum length the vent run can
be. See charts below for both normal venting and
long venting models.
/RQJ9HQWDQG%ORZHU0RWRU
