– 47 –
The drive motor is a 1/3 or 1/4 horsepower motor.
7KH\DUHPRGHOVSHFL¿FDQGKDYHDVSHFL¿FGULYH
belt. This allows the machine to spin up to 800
RPM on the 27-inch models and up to 830 RPM
on the 24-inch models.
:DVKHU'ULYH0RWRUV'LDJQRVLQJ
The motor requires 120 VAC.

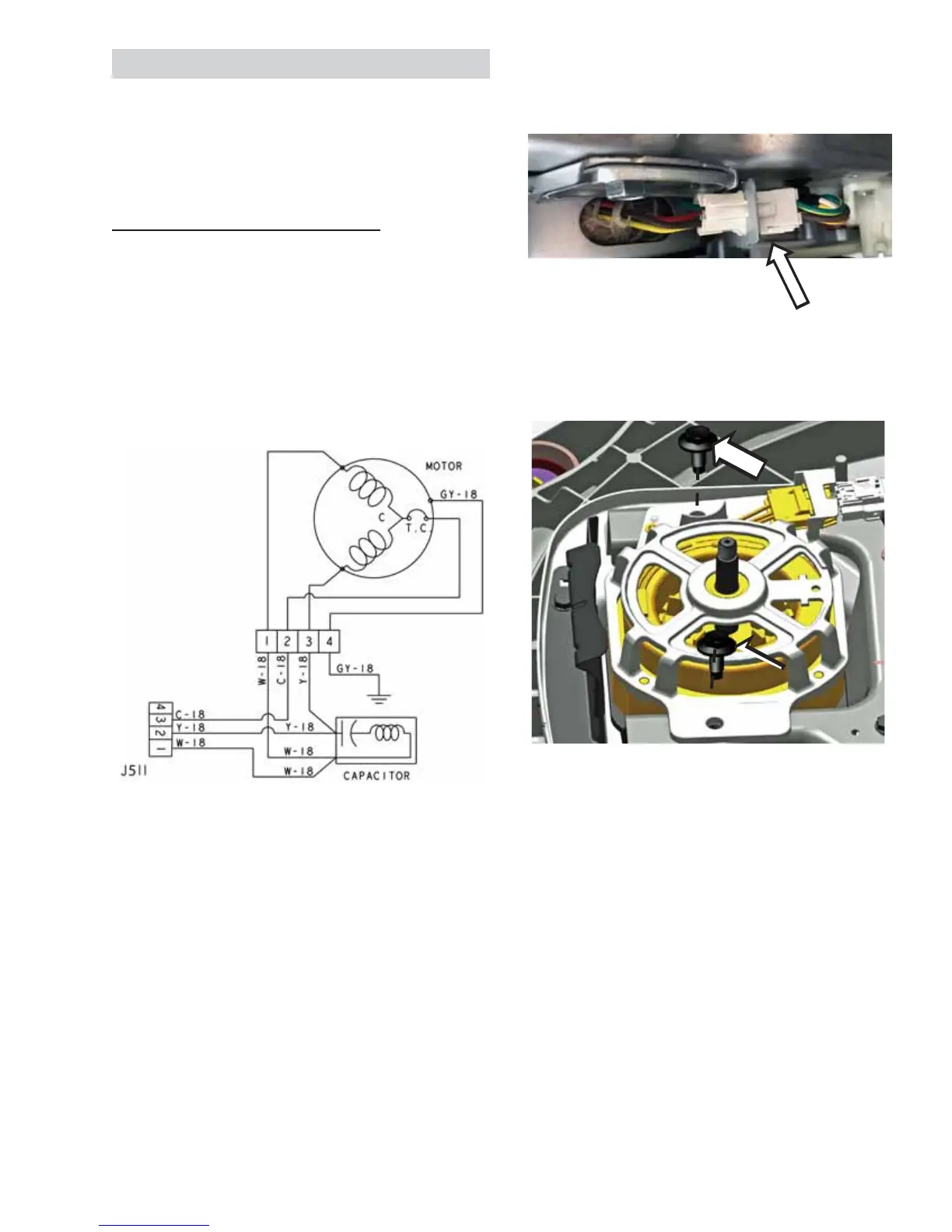

Resistance values from board connector J511
are:
Check motor resistance from brown -
white and brown - yellow. Should read
approximately 4.6 ohms for the 1/4 horse
motor and 4.1 ohms for the 1/3 horsepower
motor.
Motor Removal
NOTE: The washer motor can be replaced (with a
OLWWOHGLႈFXOW\ZLWKRXWUHPRYLQJWKHZDVKHUWXELI
the installation requires it.
1. Remove the front panel. (See Front Panel
in the Washer Components section of this
service guide.)
2. Unclip the hall sensor from the motor.
3. Unclip the main harness from the motor
connector by pushing up on the connector
clip. The motor side of the harness is secured
in place.
4. Remove the two 1/2-in. hex-head bolts that
secures the motor to the platform. When
reinstalling the bolts, torque to 170 inch
pounds.
Important: If removing the motor with the washer
leaning back, be sure to support the weight of the
motor, as it will drop away from the platform once
the second bolt is removed.
Washer Drive Motor
To Next Page
