– 53 –

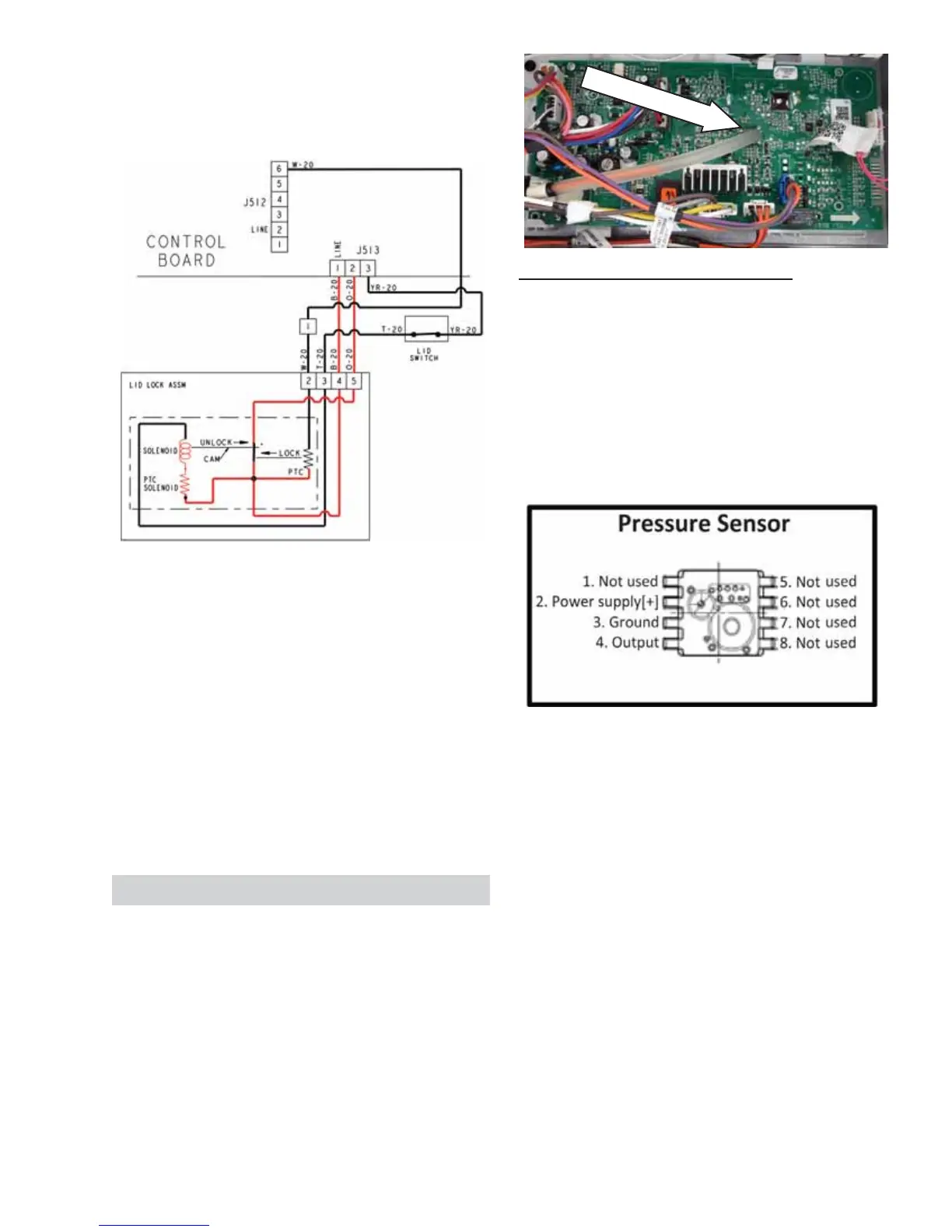

The board then pulses neutral from J513 pin
3 through the lid switch activating the lock
solenoid locking the lid. This pulse happens in
milliseconds. A volt ohm meter may not see this
action.
The lid will remain locked until the end of the spin
cycle and the control board has received 0 RPM
feedback from the motor Hall Sensor. The control
will again pulse neutral from the main board
unlocking the lid.
,IWKHORFNIDLOVWRORFNRIWKH¿UVWWU\WKHFRQWURO
will make 5 attempts to lock or unlock the lid. (An
audible click will be heard each time.) If after 5
attempts the lid lock routine fails to lock or unlock
the lid, the control will pause for 4.25 minutes and
attempt the lock routine again. If the lid will not
lock, the control will enter a fault mode and go
idle. Fault code 23 will be set.
The pressure sensors purpose is to sense the
level of water in the tub when a cycle is being run,
or if the washer is sitting idle.
The pressure sensor cannot be replaced by itself
if it malfunctions or is damaged. The complete
control board will need to be replaced, as the
sensor is mounted directly to it.
Pressure Sensor
'LDJQRVLQJ7KHPressure Sensor
The pressure sensor can be tested by either
using Test 10 in the Service Mode, or by checking
the output DC voltage of the pressure sensor at
the control board.
To measure the output DC voltage, connect
the meter probes between pin 3 and pin 4.
Accidentally shorting between pin 2 and pin 3 will
cause the board to shut down, but it will not be
damaged.
Depending on how much water is in the basket
will determine what output DC voltage will be
read according to the chart.
Pressure Sensor
