– 24 –
Dryer Timer Replacement
1. Place the control panel in the service position.
(See Control Panel in this section of this
service guide.)
2. Remove the two Phillips-head screws from
the control bracket, then remove the bracket
from the front panel.
3. Mark and disconnect the wiring from the dryer
timer.
4. 8VLQJDVPDOOÀDWEODGHVFUHZGULYHUSXVK
in on the lock tab while rotating the timer
clockwise.

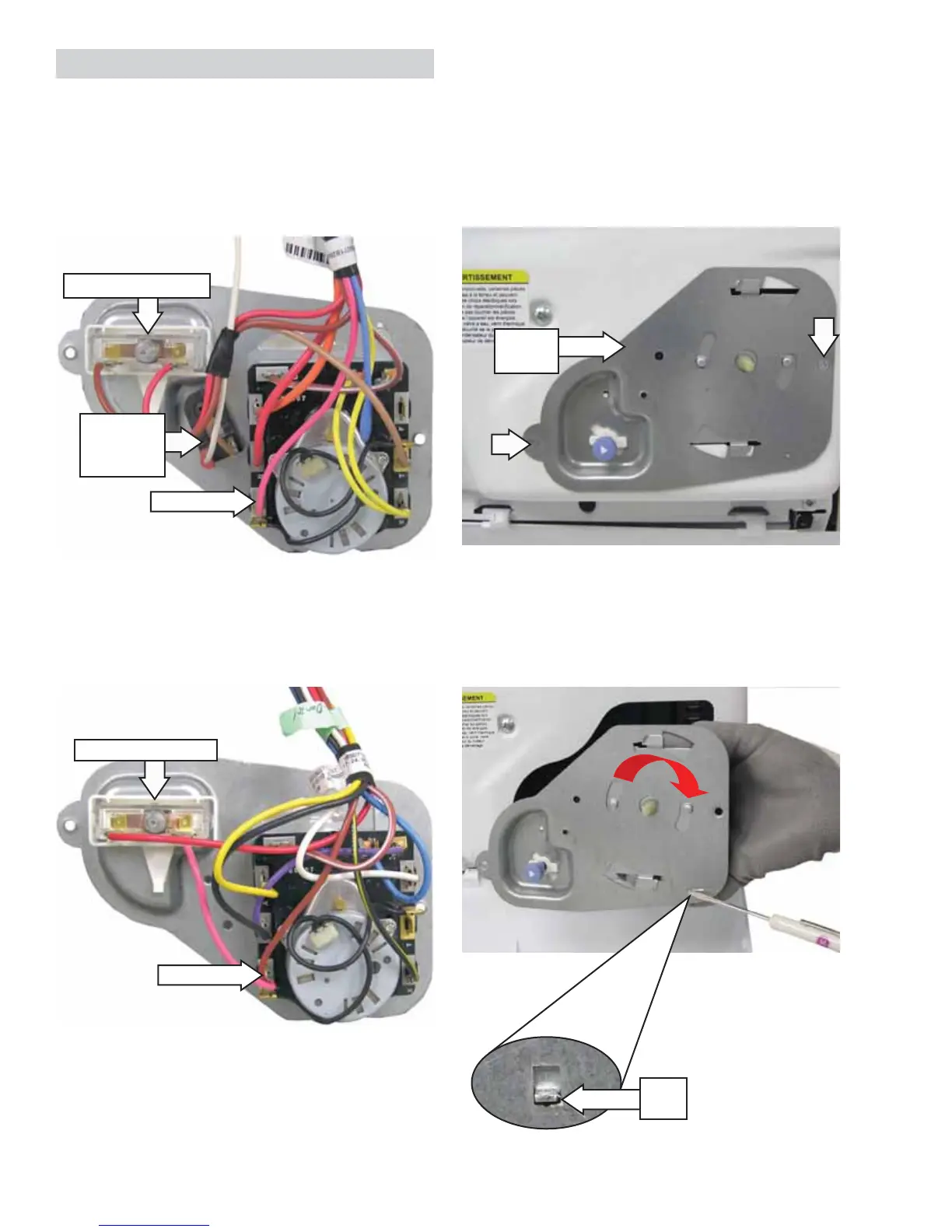

The dryer timer, start switch, and timer voltage-
dropping resistor (electric models only) are
attached to the dryer control bracket.
NOTE: The dryer timer motor has an approximate
resistance value of 2.4k ohms.
Electric Dryer Control Bracket
Gas Dryer Control Bracket
Dryer Start Switch
Dryer Timer
Dryer Start Switch
Dryer Timer
Voltage-
Dropping
Resistor
Lock
Tab
Control
Bracket
(Continued Next Page)
Dryer Timer and Start Switch
To Next Page
