– 26 –

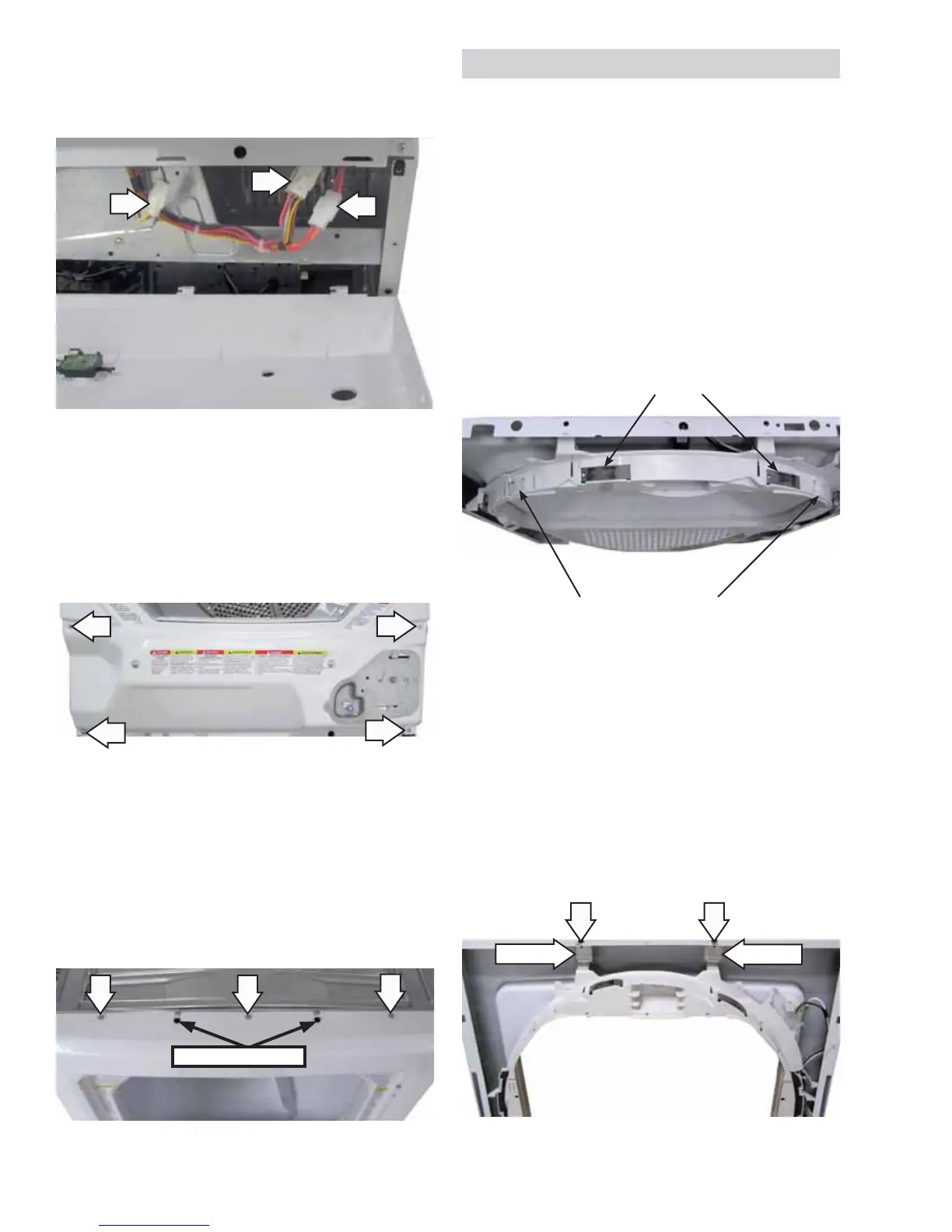

The top bearing assembly is located on the back
side of the front panel and utilizes four bearing
slides. Two white outer slides are used as
guides, and two dark-color center (top) slides are
used to support the weight of the drum. When
replacing the slides, the dark-colored support
slides must be used to replace the top support
slides. Guide slides may also be replaced with
support slides.
Caution: Do not replace the center (top) support
slides with the white guide slides. Damage to the
dryer will result.
7RS%HDULQJ$VVHPEO\5HPRYDO
1. Remove the dryer front panel. (See Dryer
Front Panel in this section of this service
guide)
2. Remove the Phillips-head screw that attaches
each bracket to the top of the front panel.
3. Grasp the top of the top bearing assembly
and pull down and inward to release the
assembly from the front panel.
5. Unplug the harness connectors located below
the right bottom corner of the front panel.
(Two harness connectors for electric models,
two for gas models.)
6. Remove the four Phillips screws from the front
of the panel.
NOTE: In the following step, DO NOT remove
the two Phillips-head screws from the top of the
panel.
7. Remove three 1/4-in. hex-head screws from
the top of the panel.
8. Pull out on the bottom of the dryer front panel
and lift to release the panel from the cabinet.
,QVWDOOLQJWKHDryer Front Panel
When installing the dryer front panel with the door
removed, place the front panel on the top of the
cabinet. Reach through the door opening to push
up on the dryer drum for placement on top of the
drum slide assembly.
Do Not Remove
Support Slides
Guide Slide
Guide Slide
Bracket
Bracket
7RS%HDULQJDQG%HDULQJ6OLGHV
