6 CB FAIL SEF PROTECTION LOGIC

ISEF>1 Trip

V02002

ISEF>2 Trip

ISEF>3 Trip

ISEF>4 Trip

CBF SEF Trip-1

CBF SEF TripCBF SEF Trip-1

Trip Command In

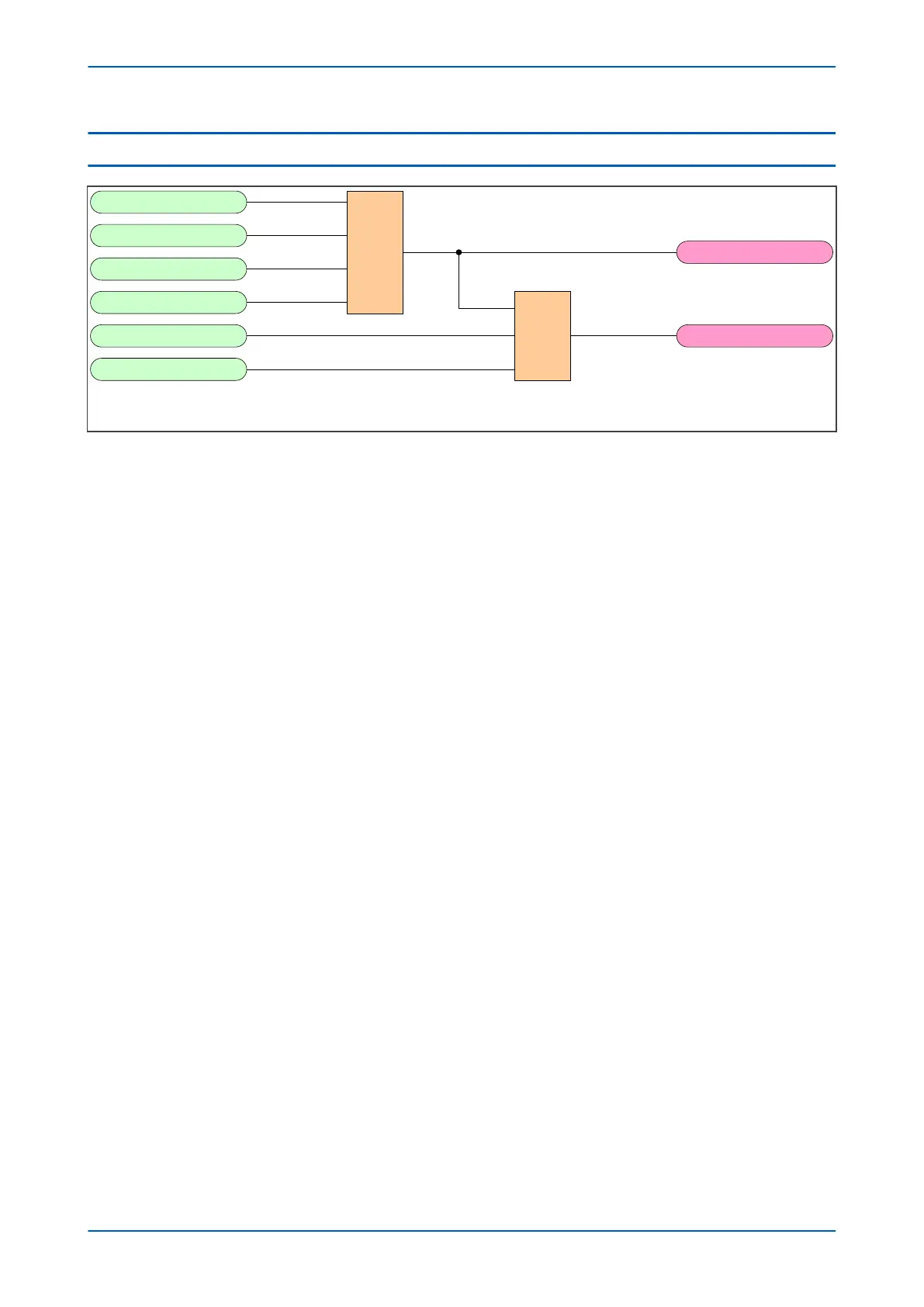

Figure 106: CB Fail SEF Protection Logic

P14x Chapter 8 - CB Fail Protection

P14xEd1-TM-EN-1 191
