GE PACE6000 User Manual

PACE Pressure Controller User Manual
[EN] English 6 - 39 K0443 Revision A

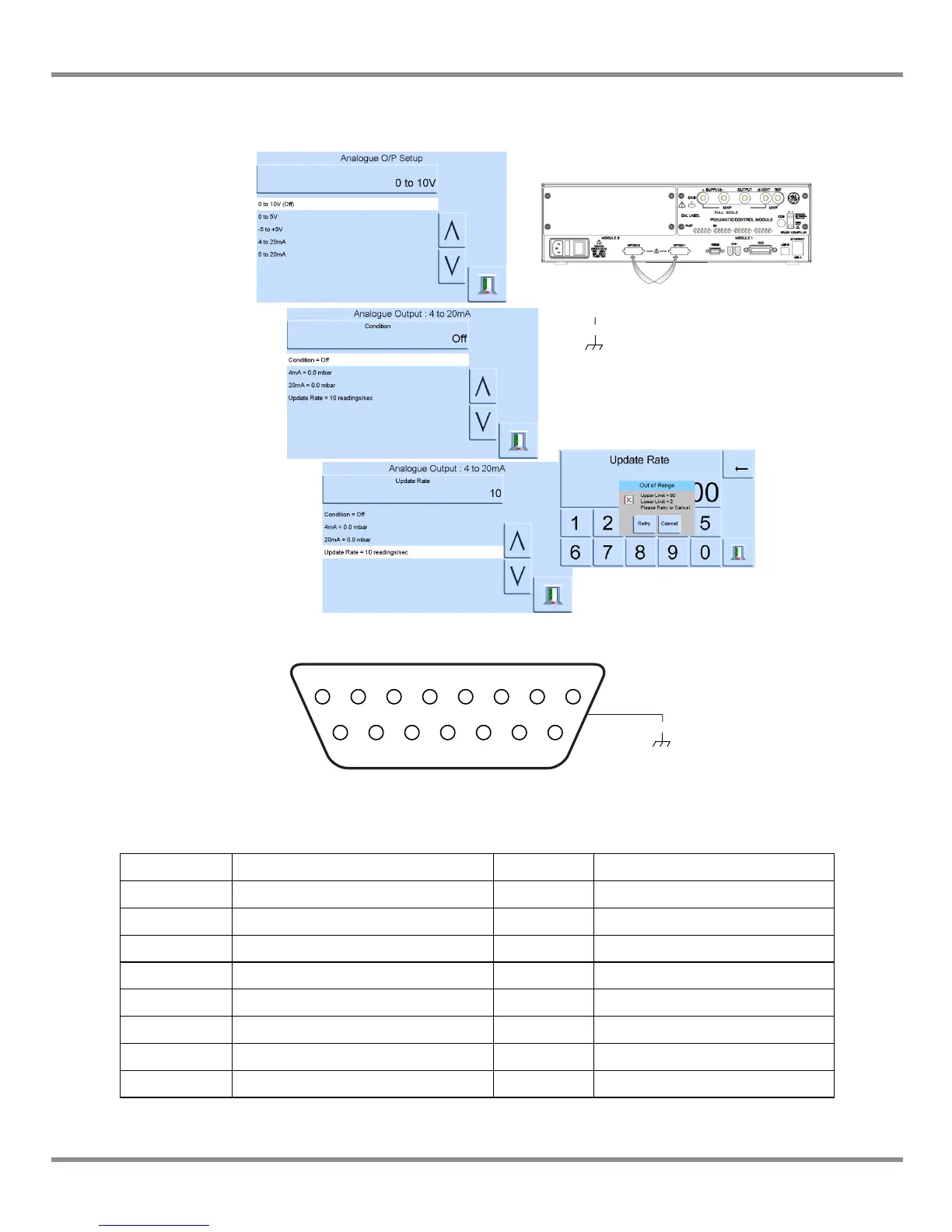

Analogue Output Option
The analogue output option provides a selectable output of voltage or current.
Pin number Function Pin number Function
1 not used 9 not used
2 not used 10 0V return
3 not used 11 +24V DC OUT @ 100mA
4 not used 12 SW IN 1
5 not used 13 SW IN 2
6 not used 14 analogue +
7 not used 15 analogue -
8not used
Selects Analogue
Output Range
On/Off
Update rate of Analogue Output
option from the control module.
Analogue Output Bandwidth = 0.5 x Update Rate (Hz)
analogue connections
30V maximum with respect to
chassis.
Rated output = 24V
30Vmax
To maintain PACE product safety, external
circuits connected to the instrument must meet
Safety Extra-Low Voltage (SELV) requirements.
15-way female D connector
Front view of Analogue
Option PCB connector
123
4
5
6
7
8
15 14 13 12 11 10 9
30Vmax
