16

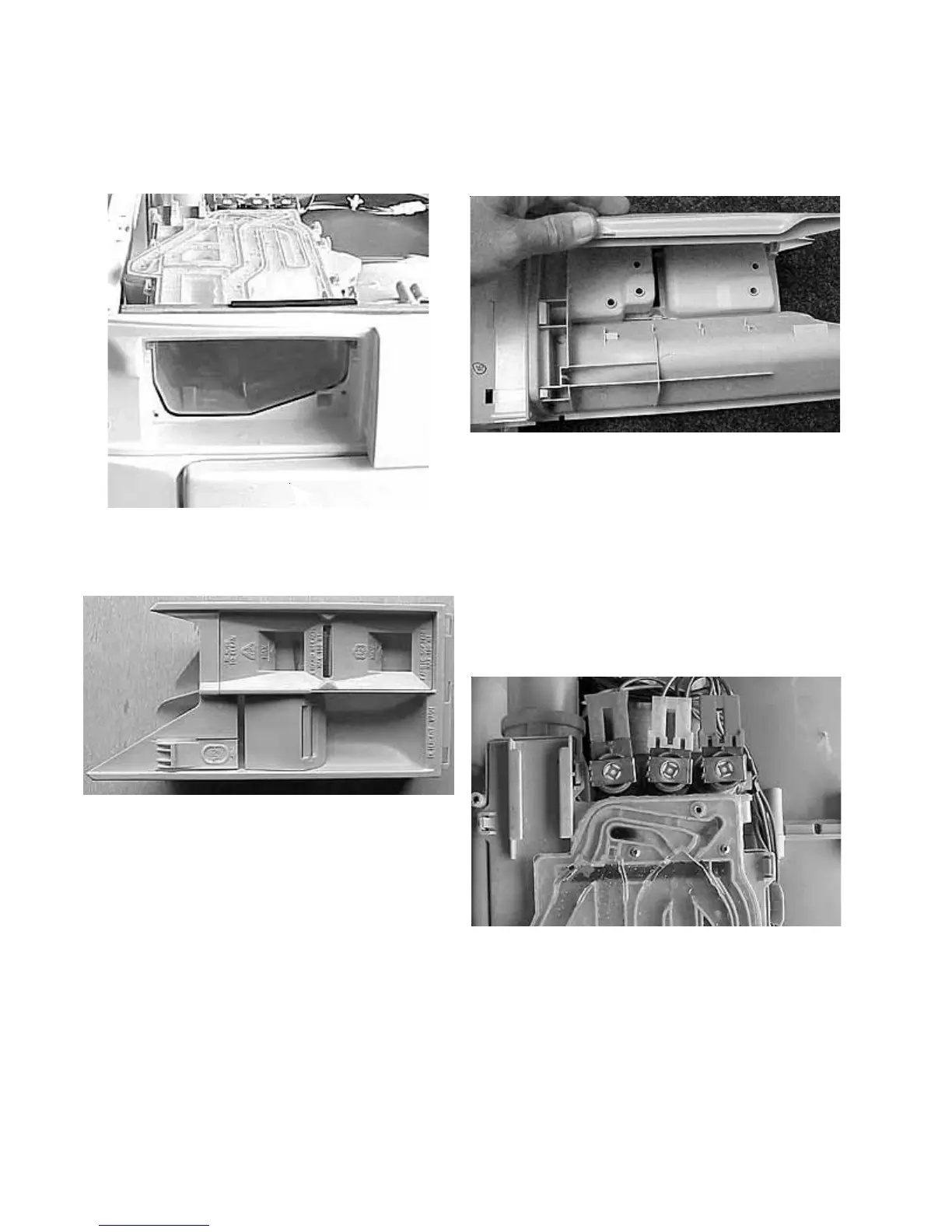

Automatic Dispenser:
The automatic dispenser for detergent, liquid bleach and
fabric softener system is made up of the dispenser cavity,
and a removable drawer with three cavities, one for
detergent, one for bleach and one for fabric softener.
A plastic conveyer is snapped to the bottom of the drawer
to direct the outputs, from the bleach and softener
chambers, to the dispenser housing outlet channel. This
prevents the mixtures from coming out the front of the
drawer.
The 2 outlets of the water inlet valve assembly are inserted
into the rear of the automatic dispenser. During the fill
cycles, water is directed into the top of the cavity through
2 inlets. The inlet on the right, as view from the front of
the washer, is connected to the combination output of
the hot water solenoid and the center cold water solenoid.
The inlet on the left, as viewed from the front of the
washer, is connected to the left-hand cold water
solenoid.
