GE WSSH300G User Manual

27
Speed control board circuits:
J1 Line to neutral voltage from control
board.
J3 Code inputs from control board.
J5 Outputs to the motor windings and
tacho generator.
Motor plug
Motor connections:
C5.1, C5.2 & C5.3 Motor winding connections.
C5.4 & C5.5 Tacho generator connections.

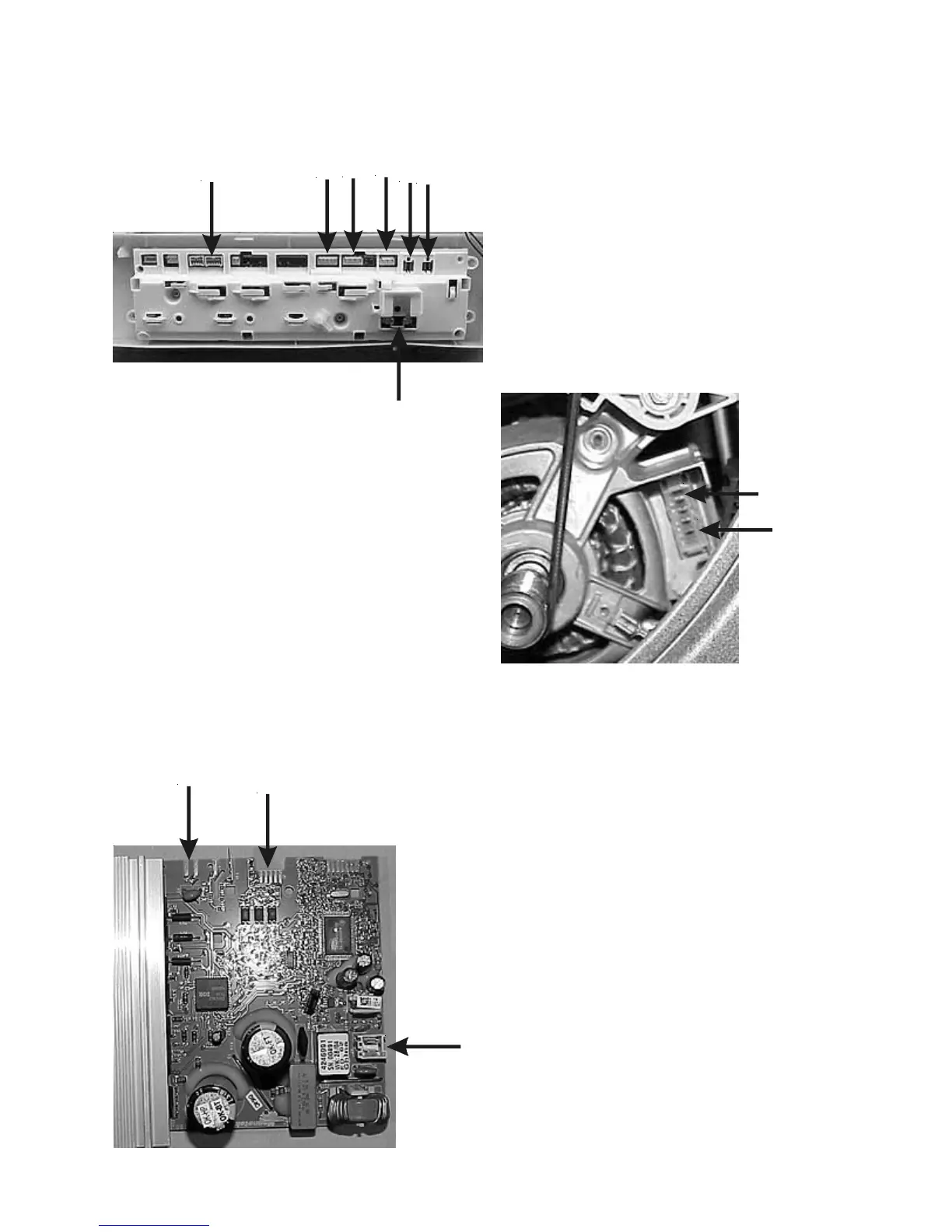

Jacks and plugs
Control panel
J3
J4 J12
J6
J14
J1
J2
Control board circuits:
J1 Power to the speed control board.
J2 & J3 Door switch assembly circuits.
J4 & J12 Water inlet and drain pump circuits.
J6 Codes to the speed control board.
J14 Incoming power.
Speed control board
J1
J3
J5
C5.1
C5.5
