36

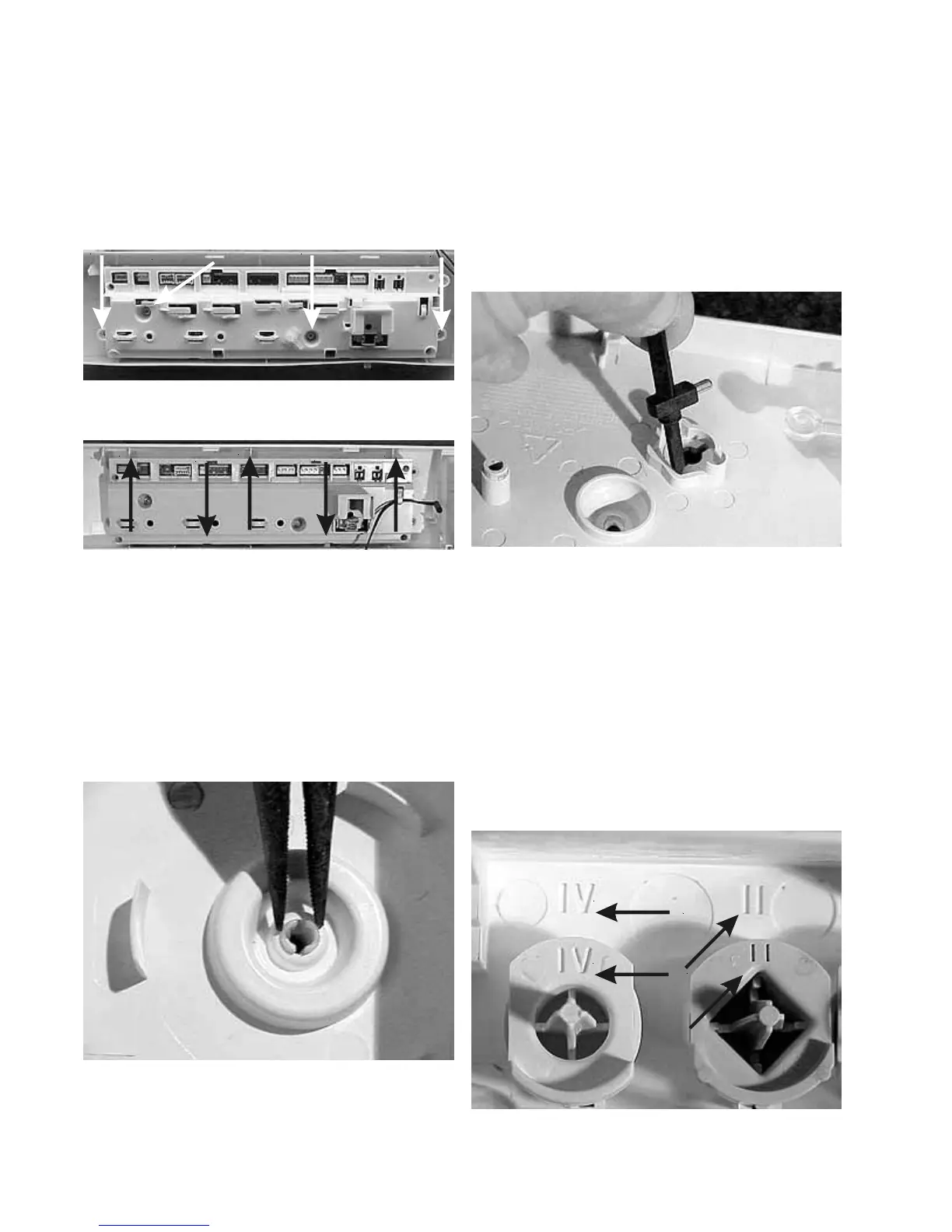

Removing the electronic control:
1. Disconnect the washer from the electrical supply,
remove the water temperature knob and the con-
sole.
2. Lay the console on a soft flat surface and remove
the (4) screws holding the control to the console.
3. Release the locking tabs and lift the control from
the console.
Note: Be careful not to lose the button springs.
Removing the selector knob:
1. Disconnect the washer from the electrical supply
and remove the electronic control.
2. Squeeze the rim of the selector knob shaft with
pliers and pull the knob out the front.
Removing the water temperature selector
shaft:
1. Disconnect the washer from the electrical supply,
set the water temperature selector knob to the
Cold/Cold position and remove the electronic
control.
2. Lift the shaft out of the control.
Removing the programing buttons and
springs:
1. Disconnect the washer from the electrical supply
and remove the electronic control.
2. Lift the buttons and springs out of the console.
3. The buttons are not all the same. Each button
has a Roman numerals stamped into it. The console
has Roman numeral above the button slot. Match
the number on the button to the number on the slot.
