30

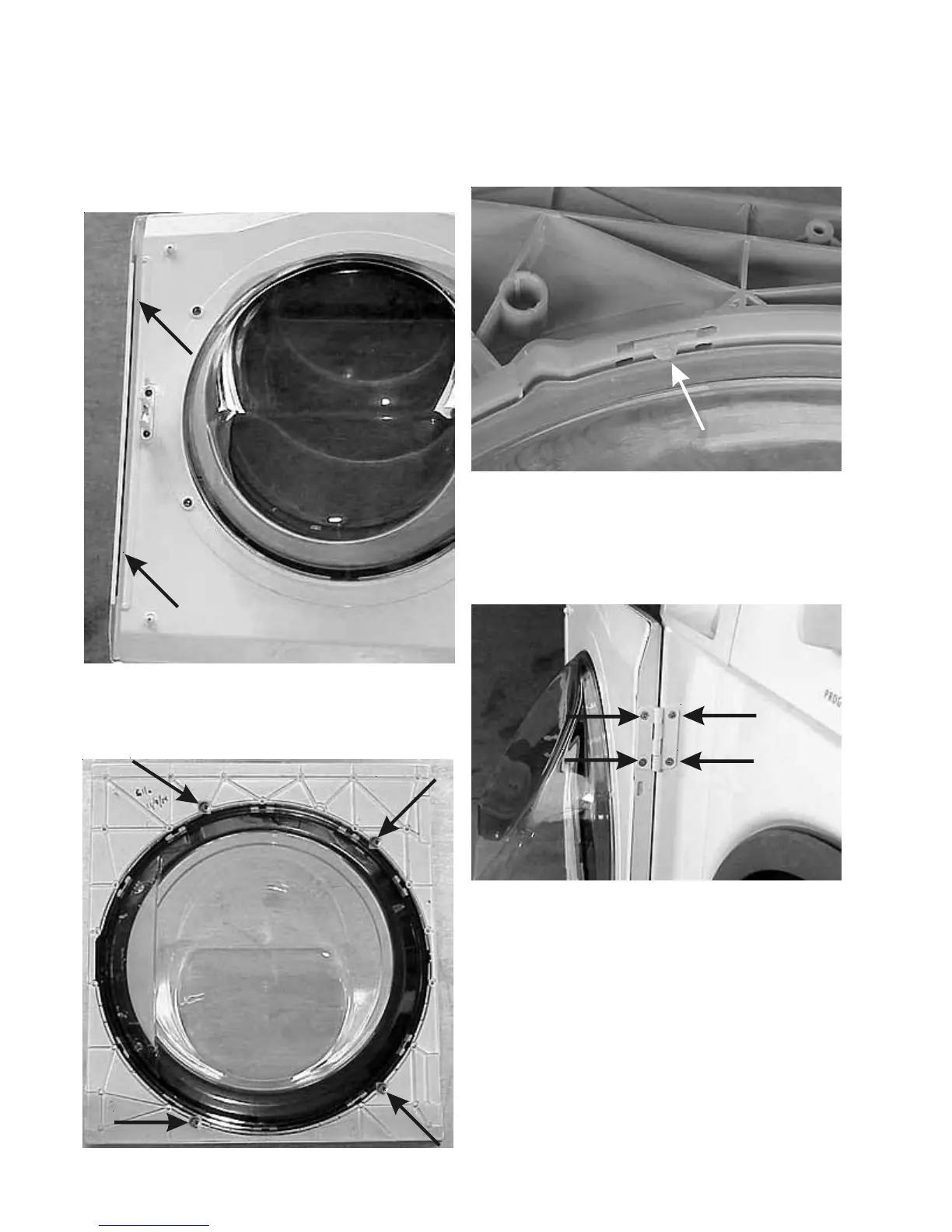

3. The inner glass is held in place by (5) molded tabs
in the rear door cover. To remove the glass, grab the
edge of the cover by the tab and twist it away from
the glass.
To remove door hinges:
1. Remove the (4) screws holding the hinge to the door
and front panel.
Disassembling the door:
1. To remove the outer door panel, separate the
two panels on the hinge side and slide the outer
panel toward the door strike side to disengage
the inner panel from the outer panel flange.
2. Remove the outer glass (some models) by remov-
ing the door strike and the (4) screws holding the
outer glass to the inner panel and lift the glass off.
