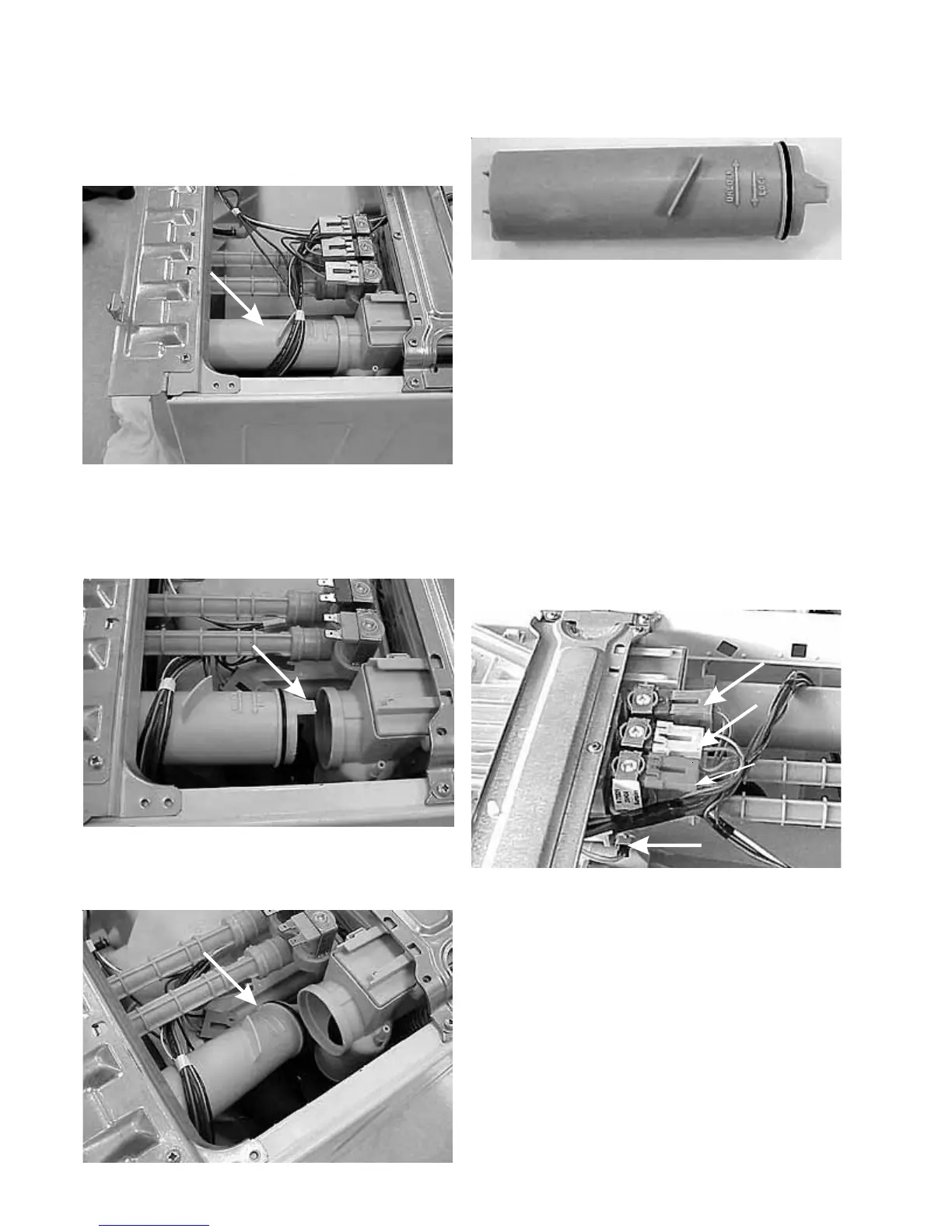

Removing the overflow/vent tube:
1. Disconnect the washer from the electrical supply
remove the top panel and remove the overflow/
vent grommet.
2. Turn the tube counterclockwise about a 1/16 of a
turn to unlock the tube. Pull the tube back to
disengage it from the detergent dispenser hous-
ing.
3. Push the front of the tube down and forward
toward the water inlet valve assembly until the
tube clears the rear panel.
4. Drop the rear of the tube down, slide the tube back
and lift the tube out.
Removing the water inlet valve assembly:
Note: The water valves and water valve harness
connectors are color coded; red, green and
blue. When reconnecting, match the color
on the harness connector to the color of
the valve.
1. Disconnect the washer from the electrical supply
and the hot and cold water hoses.
2. Remove the top panel, water valve and overflow/
vent grommet and the overflow/vent tube.
3. Unplug the wiring harness from the valves.
