43

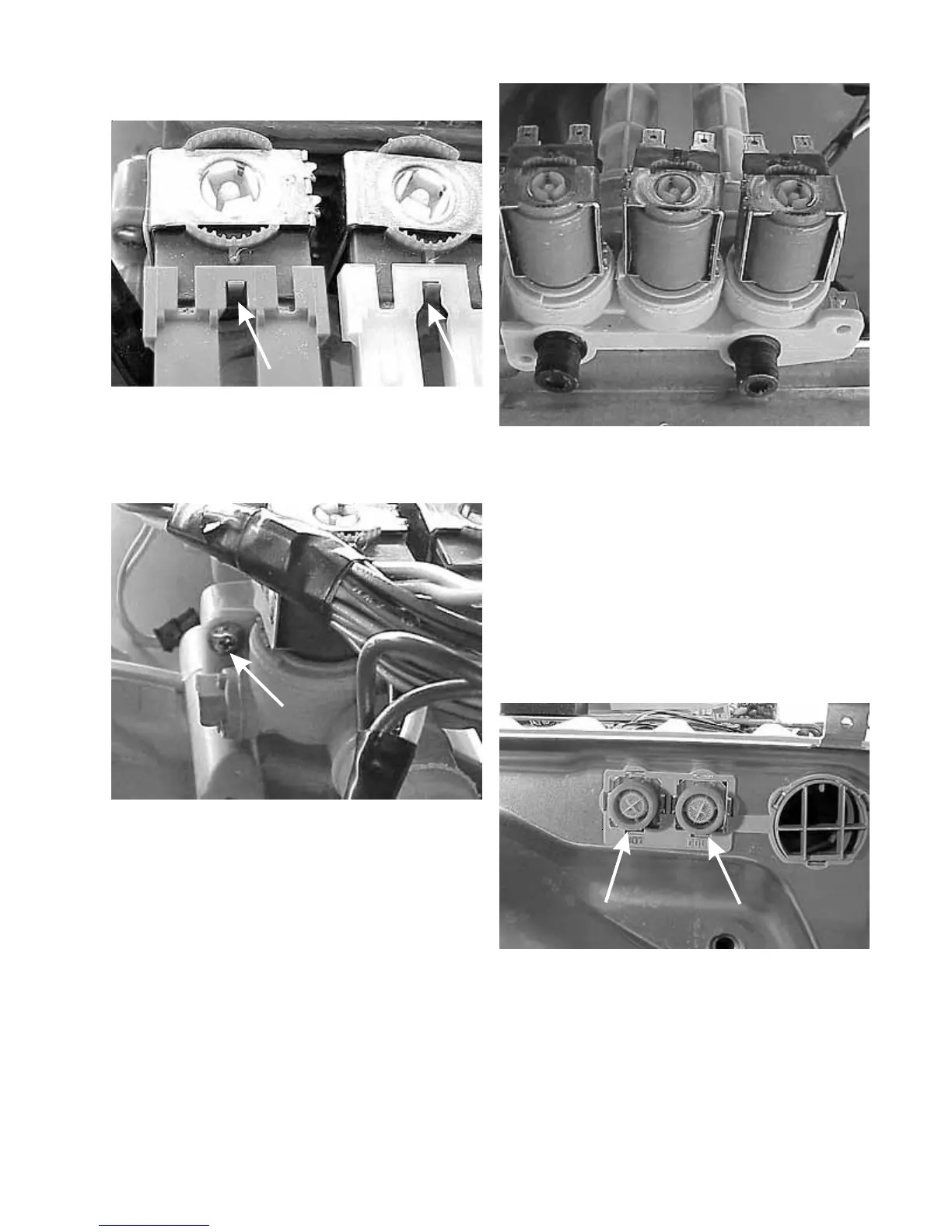

Removing the water inlet screens:
Water inlet screens are located in the ends of the
water inlet tubs to filter the incoming water. These
screens can be removed for cleaning.
1. Disconnect the incoming water hoses.
2. The screens have an X molded in them. Using
pliers, grab one of the legs of the X and pull the
screen out.
Removing the top rear brace:
1. Disconnect the washer from the electrical supply
and remove the top panel.
Note: The water valves harness has locking plugs.
4. Remove the (2) screws, one on each side, holding
the water inlet valve assembly to the detergent
dispenser housing.
5. Pull back on the valve assembly to disengage
it from the detergent dispenser housing and lift
out.
