41
2. Using a small common screw driver release the (8)
locking tabs around the water inlet tubes while
pushing on the grommet rim from inside the washer.
Removing the overflow/vent tube
grommet:
1. Disconnect the washer from the electrical supply,
remove the top panel and cut the thin wall joint
section between the water inlet and the overflow/
vent tube grommet.
2. Using a small common screw driver release the (3)
locking tabs around the overflow/vent tube while
pushing on the grommet rim from inside the
washer.

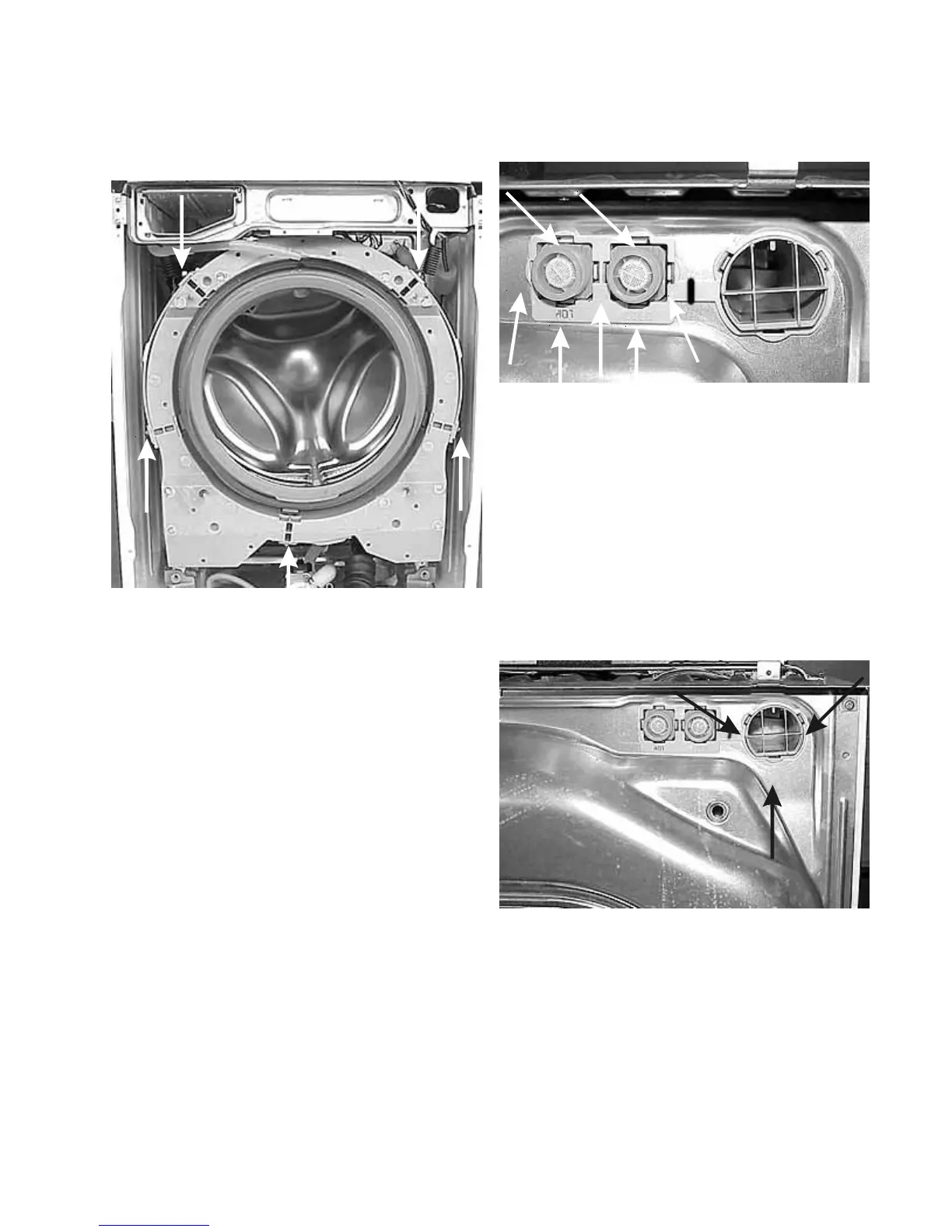

2. Using a 7/16” socket, remove the (5) bolts holding
the weight ring to the outer tub and slide the weight
ring off the outer tub front.
The water inlet and overflow/vent tube
grommet:
Note: The water inlet and overflow/vent tube
grommets are connected for ease of
installing during manufacturing and can be
separated by cutting the thin wall joint
section for removal in the field.
Removing the water inlet grommet:
1. Disconnect the washer from the electrical supply,
remove the top panel and cut the thin wall joint
section between the water inlet and the overflow/
vent tube grommet.
