55

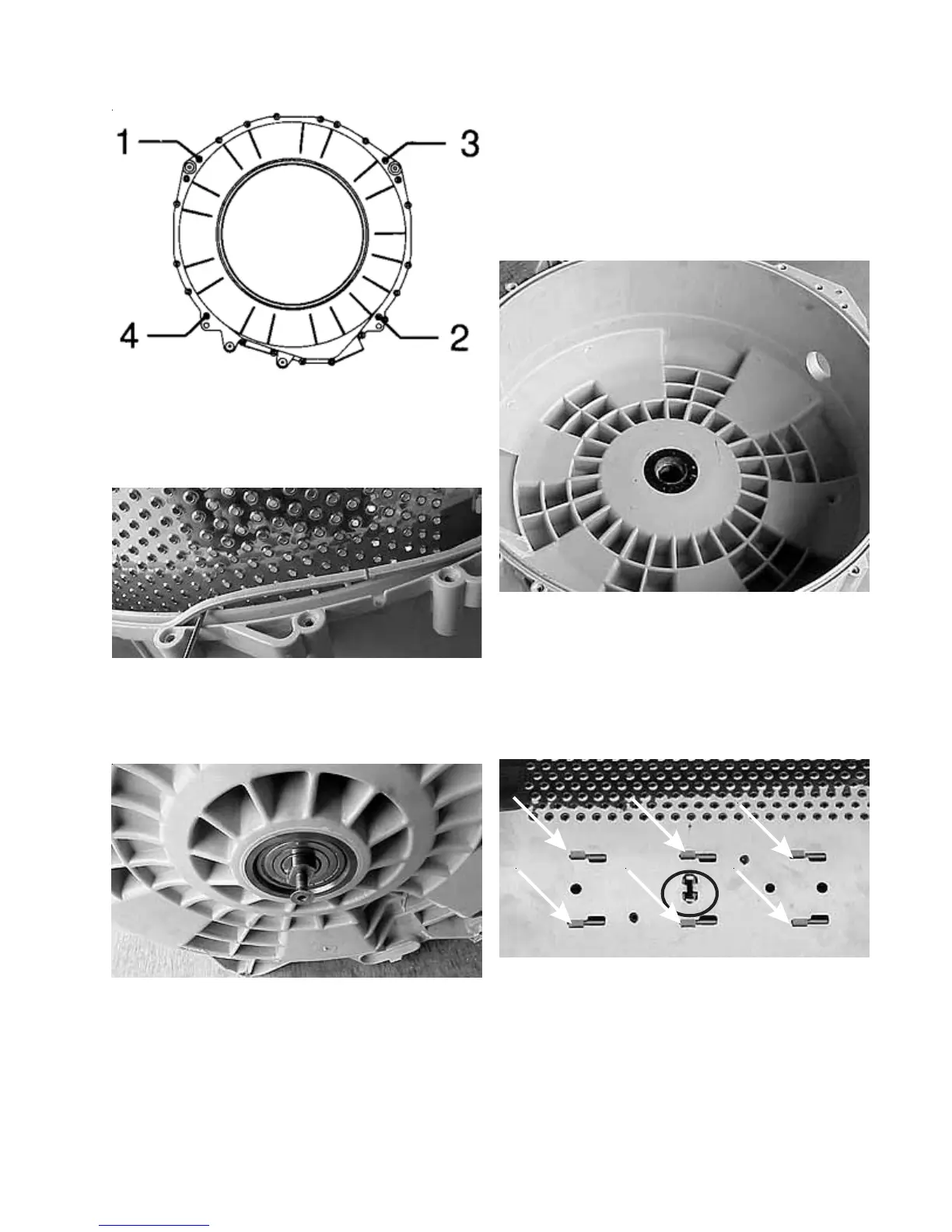

15. The seal between the (2) tub halves is placed
in the groove of the rear half and can be lifted
out.
16. To remove the spin basket, set the back half of
the outer tub on it’s side, reinstall the screw that
secured the large pulley to the shaft. Tap the
inner tub out with a rubber hammer.
Note: The bearings, water seal and seal between
the two tubs come as part of the rear half of
the outer tub. If the water seal or bearings
fail, inspect and, if necessary, dress shaft of
the spin basket with a file. With some failures
it will be necessary to replace the spin basket.
Spin basket vanes:
Three plastic vanes are mounted to the spin basket
to aid in the washing action during the wash cycle.
Each vane has (6) tabs that slide into (6) slots in
the spin basket.
Each vane is locked in place by (4) tabs pressed out
of the spin basket.
