Service Data
Tightening Torques

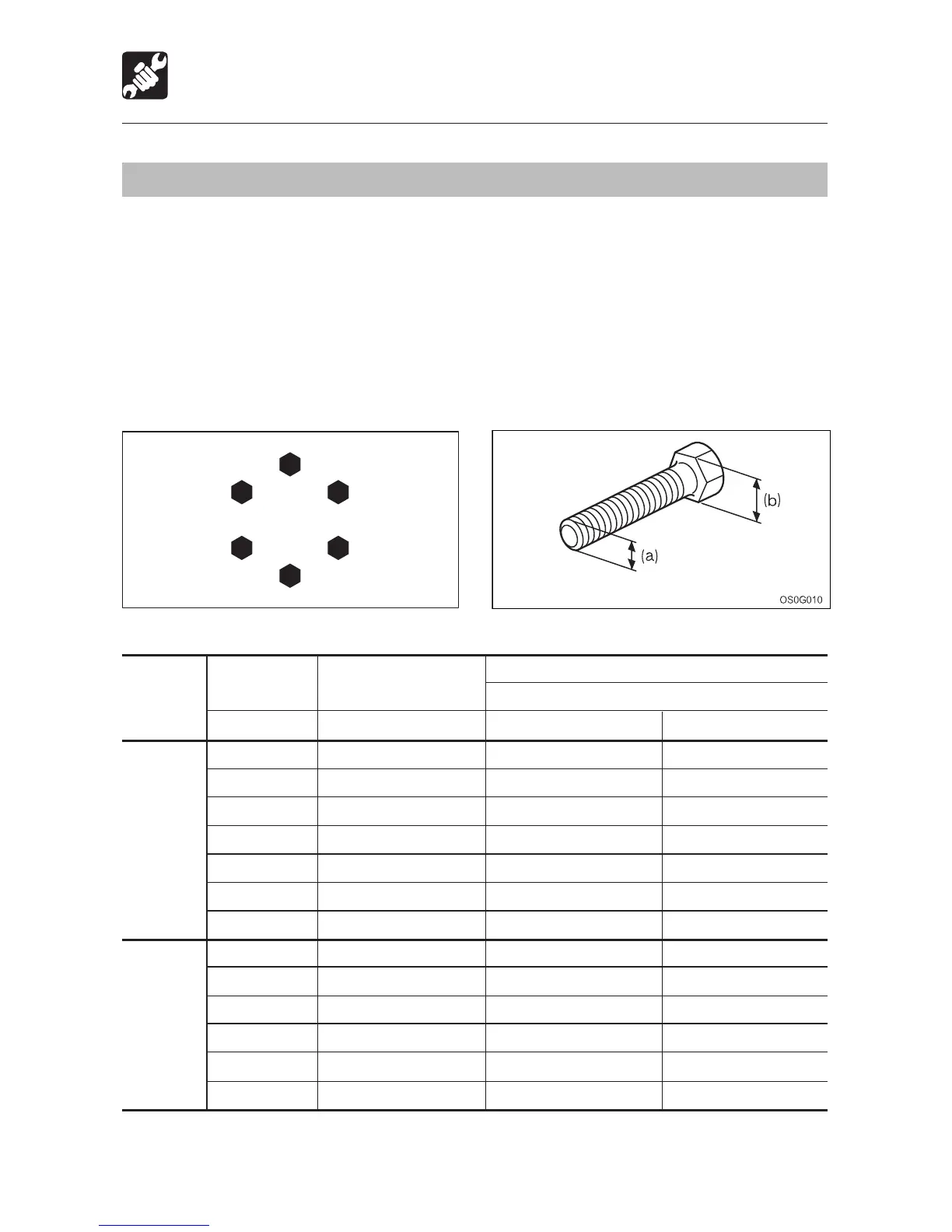

Nuts and Bolts (for ISO strength category 10.9)
Tighten nuts and bolts at the torques shown on the table below, unless otherwise specified
in the text.
Tightening torques when mounting plastic covers differ from the values on the table below.
Consult a Gehl dealer. Tightening too forcefully will break the cover.
When replacing nuts and bolts, replace them with nuts and bolts of the same size and
standards.
Tighten nuts and bolts alternately (top, bottom, left then right) or in 2 or 3 times so that they
are tightened uniformly.
Thread
Coarse
Fine
Head width
(b)
Size (a) X Pitch
Torque
General Connection Points
mm mm N·m ft-lb
10 M6 X 1.0 9.8 ± 0.5 7.2 ± 0.4
12, 13 M8 X 1.25 22.6 ± 1.1 16.6 ± 0.8
14, 17 M10 X 1.5 47.1 ± 2.4 34.7 ± 1.7
17, 19 M12 X 1.75 83.4 ± 4.1 61.5 ± 3.0
19, 22 M14 X 2.0 134.4 ± 6.7 99.1 ± 4.9
22, 24 M16 X 2.0 207.9 ± 10.4 153.3 ± 7.7
27, 30 M20 X 2.5 410.9 ± 20.5 303.1 ± 15.1
12, 13 M8 X 1.0 24.5 ± 1.2 18.1 ± 0.9
14, 17 M10 X 1.25 50 ± 2.5 36.9 ± 1.8
17, 19 M12 X 1.5 87.3 ± 4.3 64.4 ± 3.2
19, 22 M14 X 1.5 135.3 ± 6.8 99.8 ± 5.0
22, 24 M16 X 1.5 220.6 ± 11 162.7 ± 8.1
27, 30 M20 X 1.5 452.1 ± 22.6 333.4 ± 16.6
