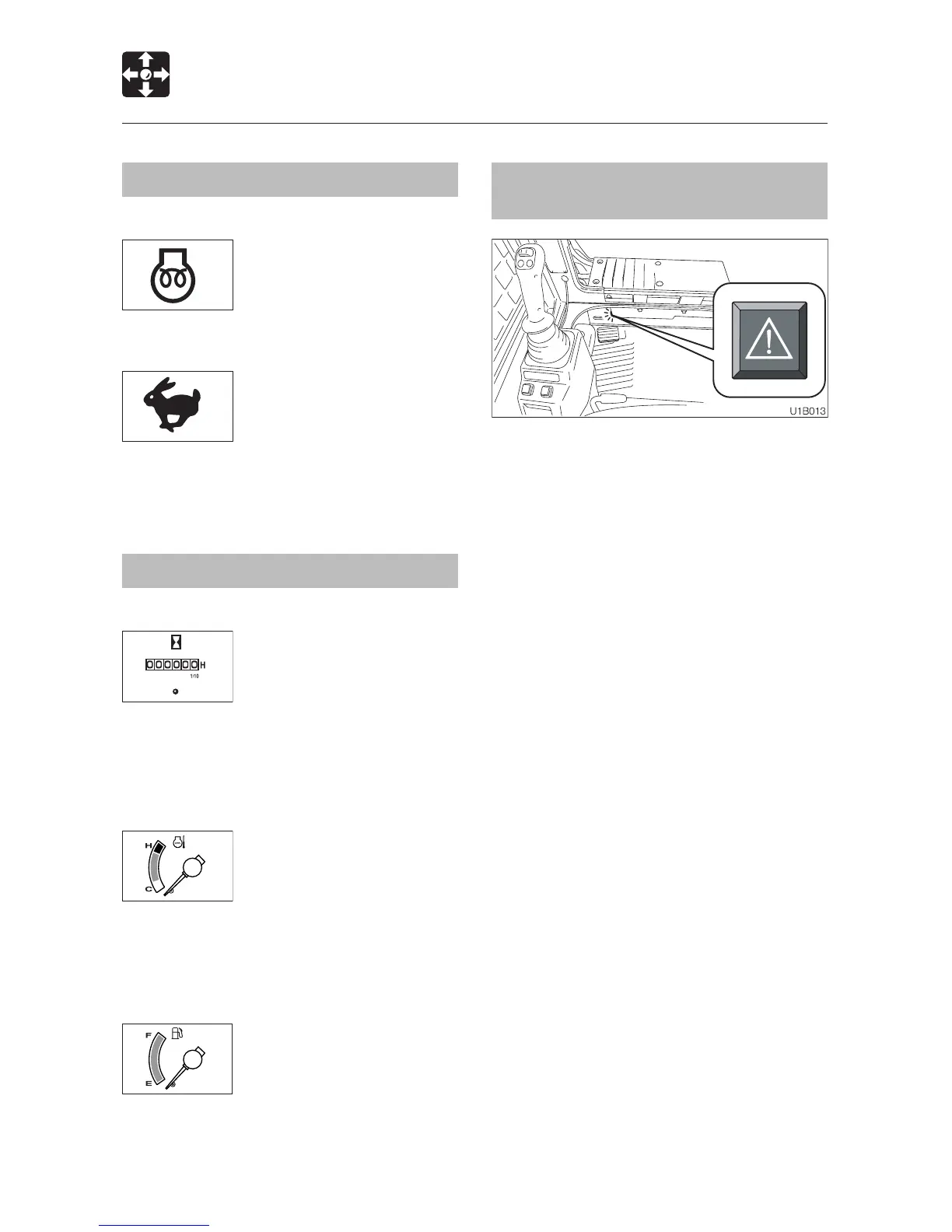

Instrument Panel
Indicators
6. Glow Lamp
This lamp turns off when
engine preheating is
completed.
7. Travel Speed Lamp
This lamp lights when the
travel speed button is set to
2nd (high speed).
Meters
8. Hour meter
This displays the total engine
running time in hours.
The rightmost digit indicates
tenths of hours (6 minutes).
Set the inspection and
maintenance intervals according to the time
displayed on the hour-meter.
9. Coolant Temperature Gauge
This gauge indicates the
temperature of the engine
coolant.
The needle should be within
the green range during
machine operation.
The red range indicates overheating.
10. Fuel Gauge
This gauge indicates the
amount of fuel in the tank.
Be sure to top off the tank
before running out of fuel.
Engine Fault Warning Lamp
< CTL55 / CTL65 / CTL75 >
IMPORTANT: If the lamp flashes, check
the flashing pattern, stop the engine and
then contact a Gehl sales or service outlet
for help. Do not run the engine while the
lamp is flashing. Otherwise, the specified
engine performance cannot be obtained
or more serious problem can occur.
When the ignition switch is turned to the ON
position, the lamp lights up and stays on for
2 seconds and then goes out.
If a problem arises in the engine or controls,
the lamp starts flashing, with the flashing
pattern corresponding to the type of
problem.
