CONTROLS
48
Seat and Seat Belt
Seat < CTL55 >
WARNING
Adjust, secure and latch the operator’s
seat.

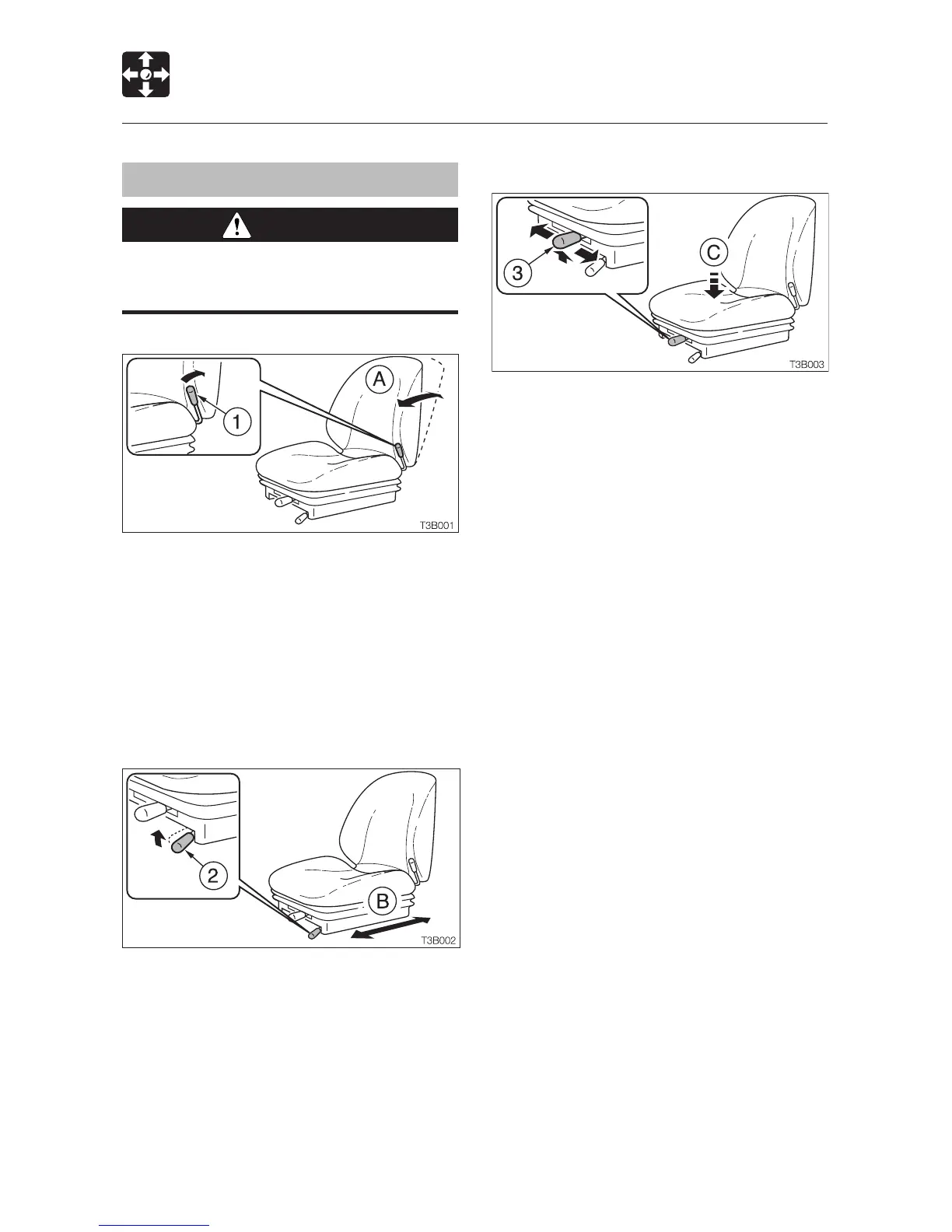

(A) Seatback angle adjustment
1. Raise your torso, and sit down firmly in
the seat.
2. Pull on lever (1) to use the force of the
springs in the seatback to adjust the
reclining angle. Release the lever (1) at the
desired angle and the seatback will be
locked in that position.
Adjustment range ..................... 15 deg.
(B) Fore-and-aft adjustment
1. Pull on lever (2) and slide the seat rearward
or forward to bring it to the optimum
position for operating the machine.
2. Release the lever (2) at the desired position
and the seat will be locked there.
Adjustment range: 130 mm (5.1 in.)
(C) Weight adjustment
1. Pull on and shift the lever (3) to right side
or left side, to adjust the seat suspension
according to the operator’s weight.
• Right .............Light operator
• Middle ..........Medium weight operator
• Left ...............Heavy operator
To Next Page
