GW Instek ASR-3000 Series User Manual

EXTERNAL CONTROL
115
15
Input
Sequence hold
Falling edge detection
16
Input
Sequence branch 1
Falling edge detection
17
Input
Sequence branch 2
Falling edge detection
18
GND
19
Output
+5 V
50 mA or less
20
Output
Reserved
21
Output
Reserved
22
Output
Reserved
23
Output
Reserved
24
Output
Reserved
25
Output
Reserved
Note
The limiter operation is recognized as On when the
following conditions exist.
 Output peak current limiter (positive) is operated.
 Output peak current limiter (negative) is operated.
 Output average current limiter is operated.
 Output power limiter is operated.

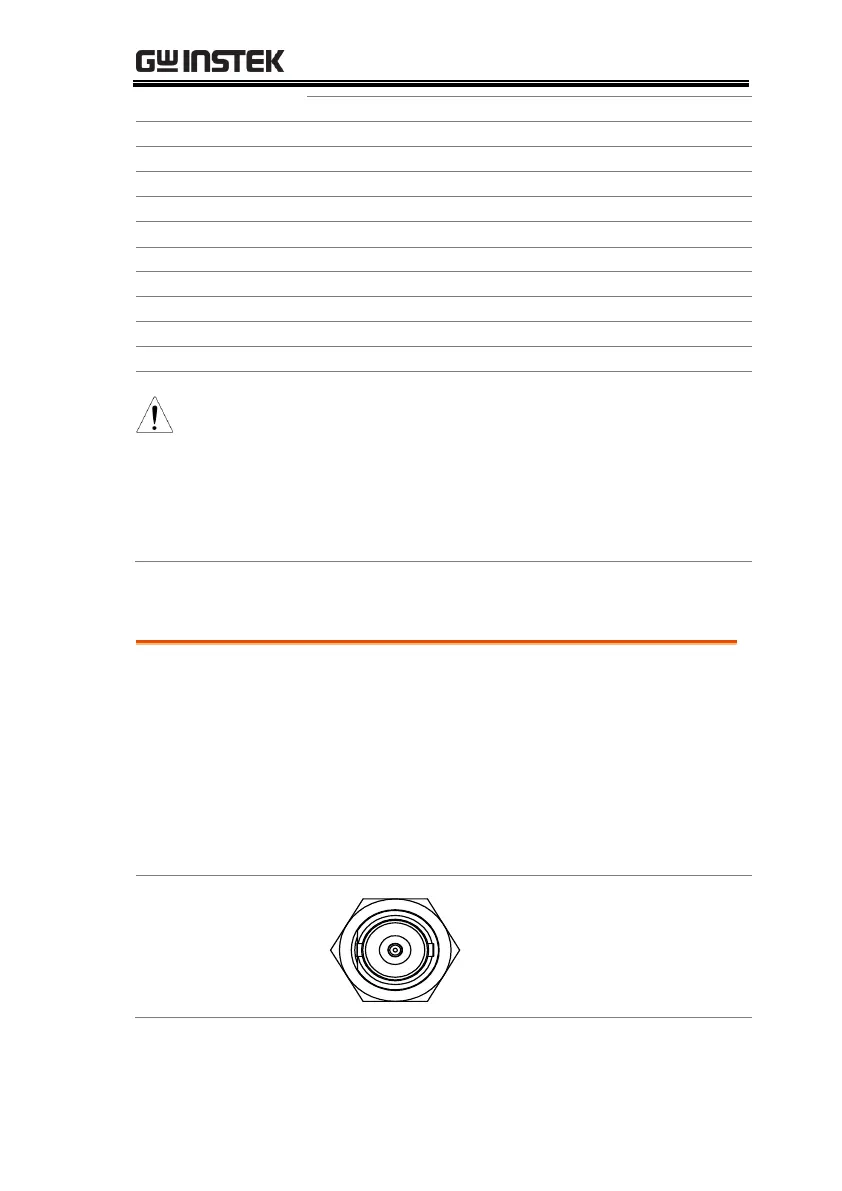

Using External Signal Input Function
Overview
The External Signal Input port is particularly
used for several output modes including
AC+DC-EXT, AC-EXT, AC+DC-ADD, AC-
ADD, AC+DC-Sync, AC-Sync and AC-VCA
Connect to the External Signal Input port on the
rear panel via a coaxial cable with a BNC
connector when using an external input signal as
the signal source with external synchronization.
External Signal
Input Connector
