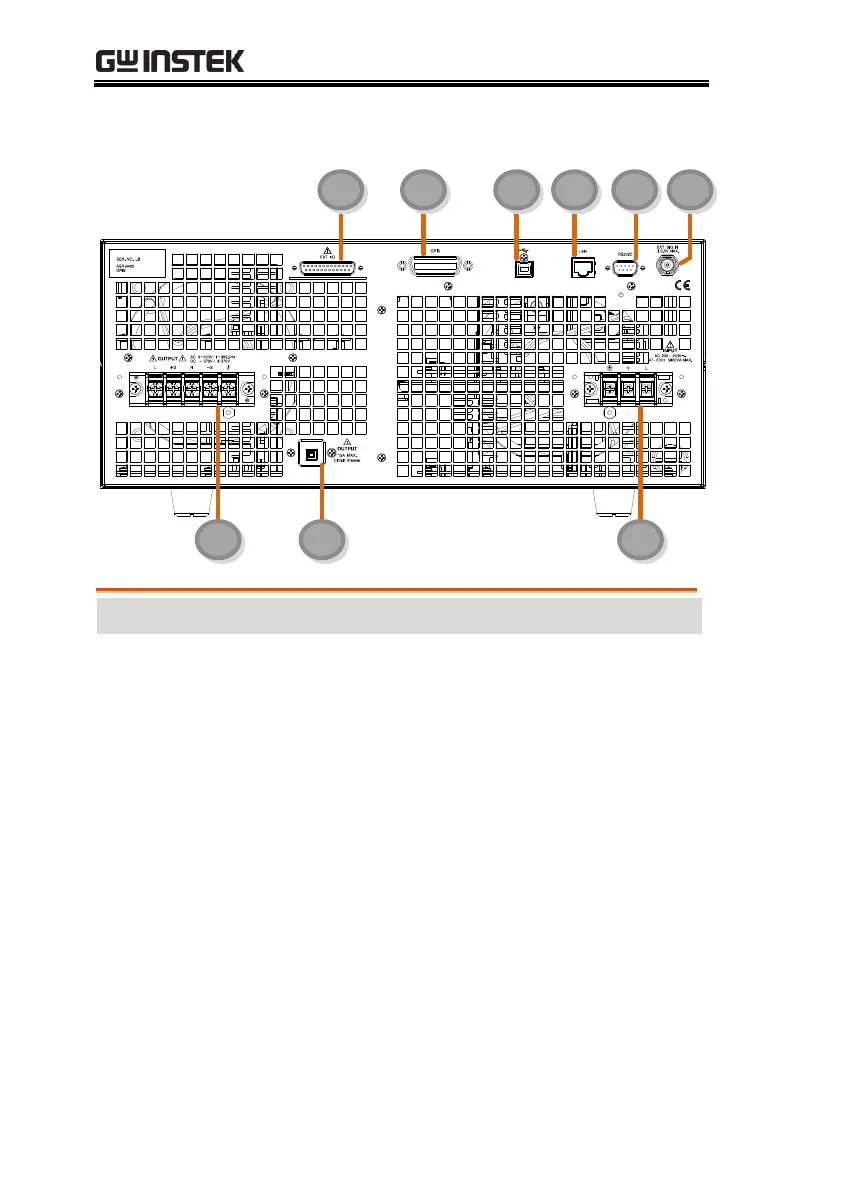

Rear Panel
13 2
4 5 6 7 8 9
Item Index
Description
1
Line input terminal
2
Front panel output socket circuit breaker
3
Output terminal with remote sensing input terminal
4
External I/O connector
5
GPIB connector
6
USB interface connector (B Type)
7
Ethernet (LAN) connector
8
RS232 connector
9
External signal input/
External synchronized signal input
