GW Instek ASR-3000 Series User Manual

ASR-3000 Series User Manual
88

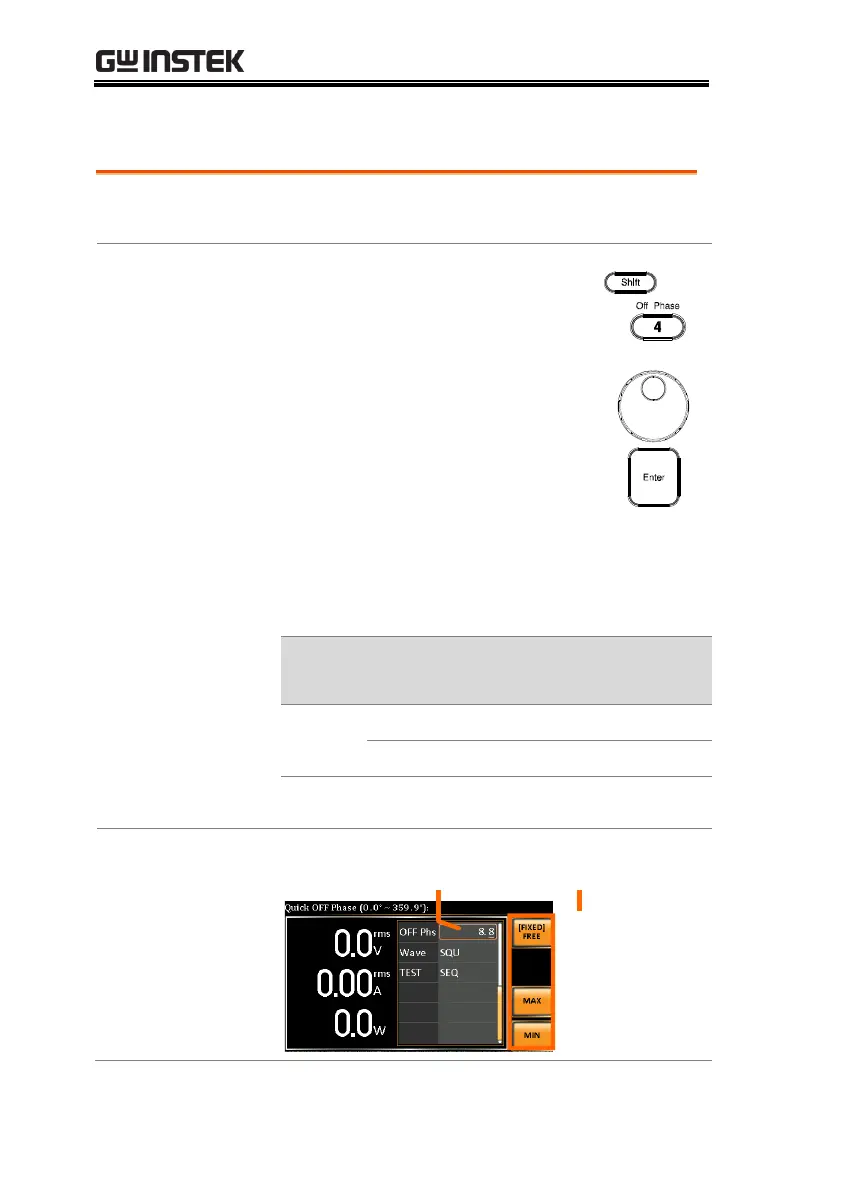

Setting the Output Off Phase
Background
The off phase setting sets the ending phase of the
voltage output.
Steps
1. Press Shift + 4 to make the OFF Phs
parameter selectable.
+
2. Also, it is available to use the
scroll wheel followed by the Enter
key to make the OFF Phs
parameter selectable as well.
3. Set the OFF Phs setting with the scroll wheel or
with the F3 (MAX) and F4 (MIN) soft-keys to set
the Off Phase to the maximum and minimum
values, respectively.
AC+DC-INT, AC-INT, AC+DC-ADD,
AC-ADD, AC+DC-Sync, AC-Sync, AC-VCA
OFF Phs
Range
0.0° ~ 359.9°
Soft-keys
FIXED/FREE, MAX, MIN
4. Press Enter to confirm the Off Phase setting.
Example of OFF
Phase Setting
OFF Phase setting
F1
F3
F4
Soft-keys setting
