GW Instek ASR-3000 Series User Manual

ASR-3000 Series User Manual
186
Serial number : GXXXXXXXX
Software version : XX.XX
Note
For further details, please see the programming
manual, available on the GW Instek web site @
www.gwinstek.com.

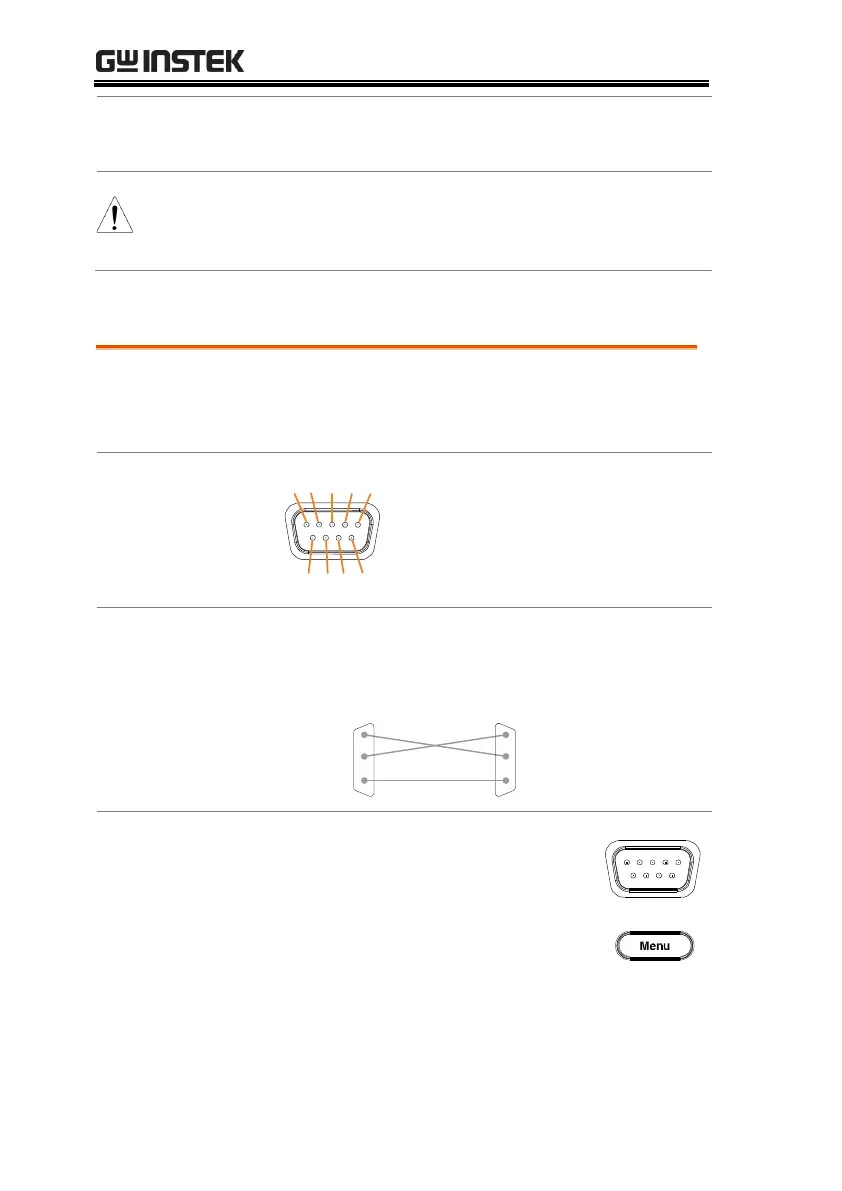

RS232 Remote Interface
RS232
Configuration
Connector
BD-9, male
Parameters
Baud rate, data bits, parity, stop
bits.
Pin Assignment
1
23 45
6789
2: RxD (Receive data)
3: TxD (Transmit data)
5: GND
4, 6 ~ 9: No connection
Pin Connection
Use a Null Modem connection (RS232C cable) as
shown in the diagram below.
ASR-3000 PC
RxDPin2 RxD Pin2
GNDPin5 GND Pin5
TxD Pin3
TxDPin3
Steps
1. Connect the RS232C cable from the
PC to the rear panel RS232 port.
2. Press the Menu key. The Menu
setting will appear on the display.
3. Use the scroll wheel to go to item 5, RS232C and
press Enter.
