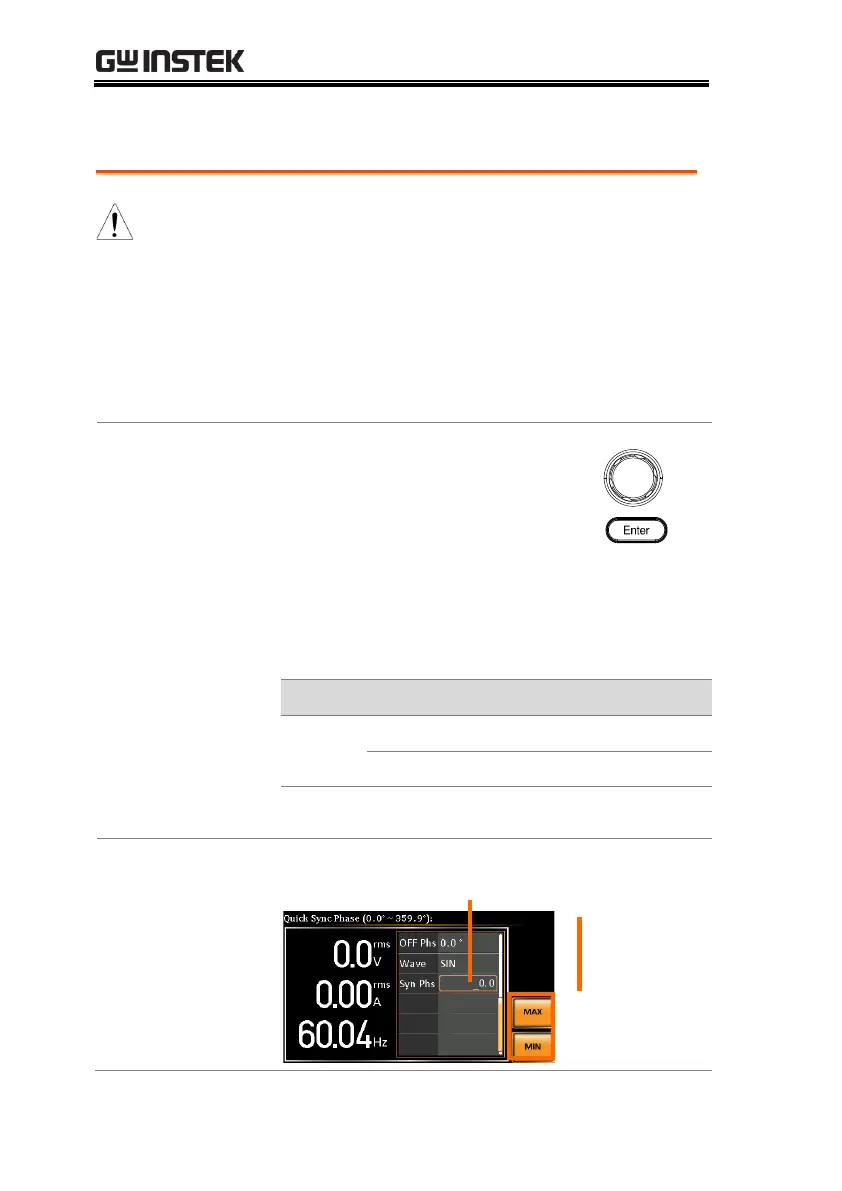

Setting the Sync Phase
Note
 It is available for AC+DC-Sync and AC-Sync Mode
output modes only.
 When SIG is set LINE, this function is used for
adjusting sync phase of output waveform and phase
of power grid.
 When SIG is set EXT, this function is used for
adjusting sync phase of output waveform and
phase of external input signal.
Steps
1. Use the scroll wheel followed by
the Enter key to make the Syn Phs
parameter selectable.
2. Set the Syn Phs setting with the scroll wheel or
with the F3 (MAX) and F4 (MIN) soft-keys to
set the Sync Phase to the maximum and
minimum values, respectively.
AC+DC-Sync, AC-Sync
Syn Phs
Range
0.0° ~ 359.9°
Soft-keys
MAX, MIN
3. Press Enter to confirm the Syn Phase setting.
Example of Sync
Phase Setting
Sync Phase setting
F3
F4
Soft-keys
setting
