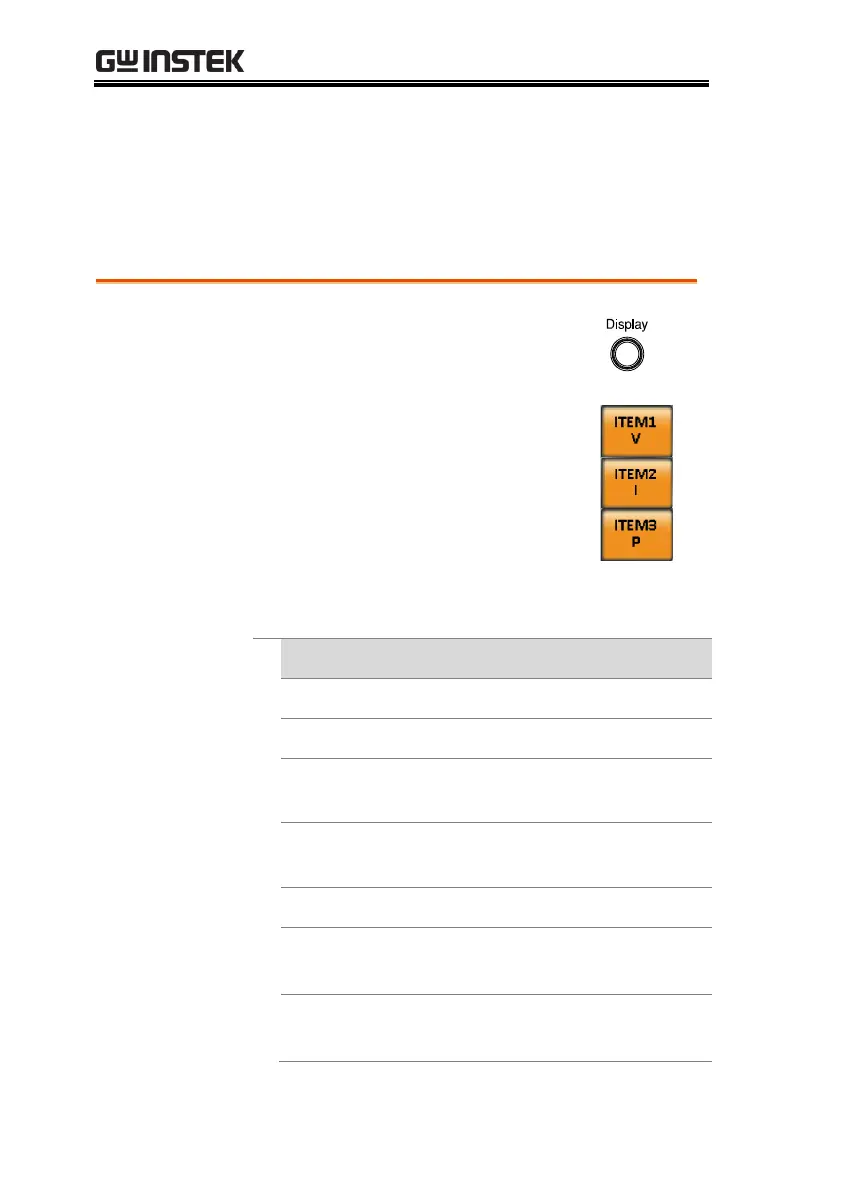

Using the Measurement Function
The 3 configurable measurements, which indicate the live-time
measurement in varied units, on the far-right side within the
standard display mode can be switched by user anytime in the
process of power output, thus providing an instantaneous analysis.
Steps
1. Press the Display key to switch to
the Standard display mode.
2. Press the F1(ITEM1), F2(ITEM2) or
F3(ITEM3) soft-key to enter each
menu.
3. Use the scroll wheel to select a measurement
item and press Enter to confirm.
ITEM 1
V
Root Mean Square Voltage
Vavg
Average Voltage
Vmax
Maximum Peak Value of Output
Voltage
Vmin
Minimum Peak Value of Output
Voltage
P
Real Power
S
Apparent Power
(n/a in DC-INT mode)
Q
Reactive Power
(n/a in DC-INT mode)
