GW Instek ASR-3000 Series User Manual

ASR-3000 Series User Manual
84
IPK Limit
On/Off
In theory, It is the function which keeps the IPK
limits (+ & -) within the certain range when the
predefined values are reached. If, however, this
function is turned off, the output will be disabled
instantly when either IPK+ or IPK- limit is
reached.
4. Press Enter to confirm the peak current setting.
Note
IPK Limit is set ON by default.

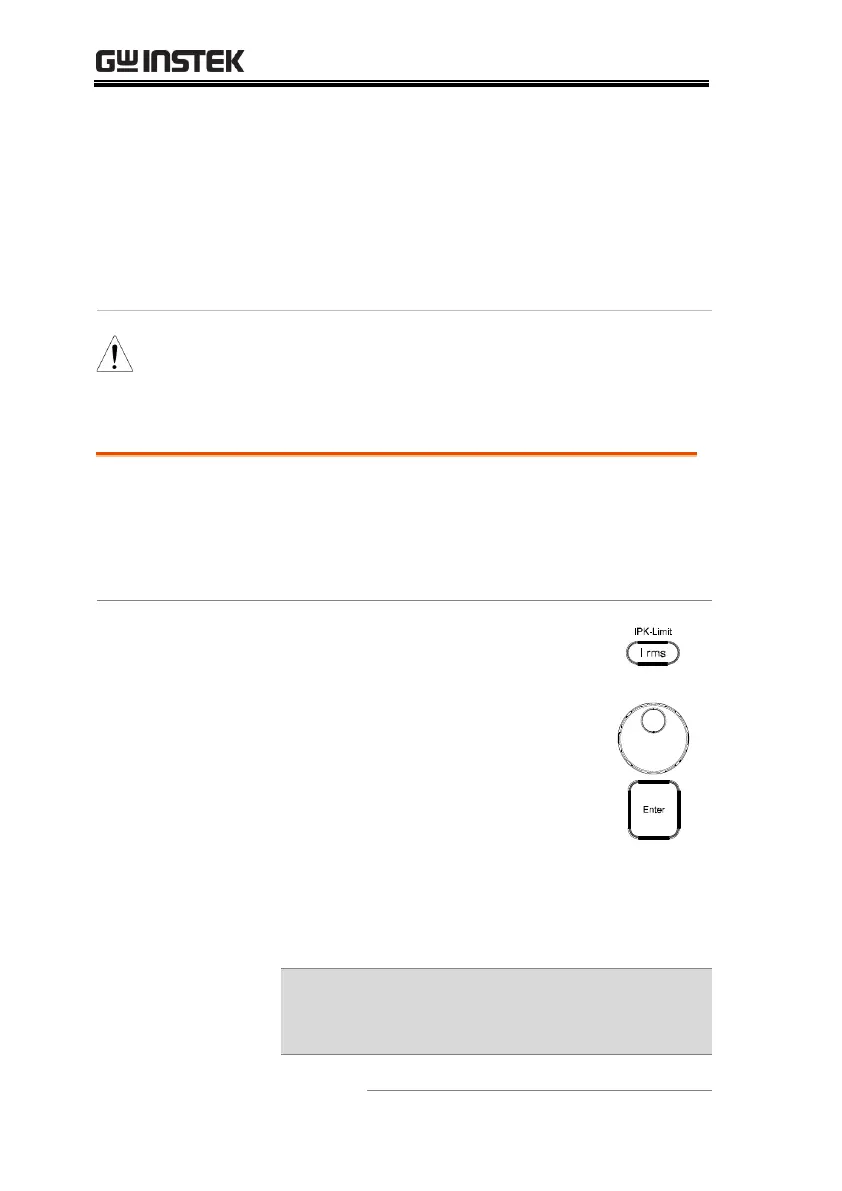

Setting the Output Current Level
Background
The IRMS and I settings set the current of the
output. Setting the RMS or AVG current sets a
limit on the current that can be sourced by the
power supply. Once the output current is over
the setting, the output will set to off.
Steps
1. Press Irms to access the IRMS or I
menu depending on varied modes.
Also, it is available to use the scroll
wheel followed by the Enter key to
make the IRMS or I parameter
selectable as well.
2. Set the IRMS/I level with the scroll wheel or
with the F3 ~ F4 soft-keys. The MAX and MIN
soft-keys set the IRMS or I level to the
maximum and minimum, respectively.
AC+DC-INT, AC–INT, DC-INT, AC+DC-EXT,
AC–EXT, AC+DC-ADD, AC–ADD, AC+DC-
Sync, AC-Sync, AC-VCA
IRMS/I
Range
5% ~ 105% of rate current
