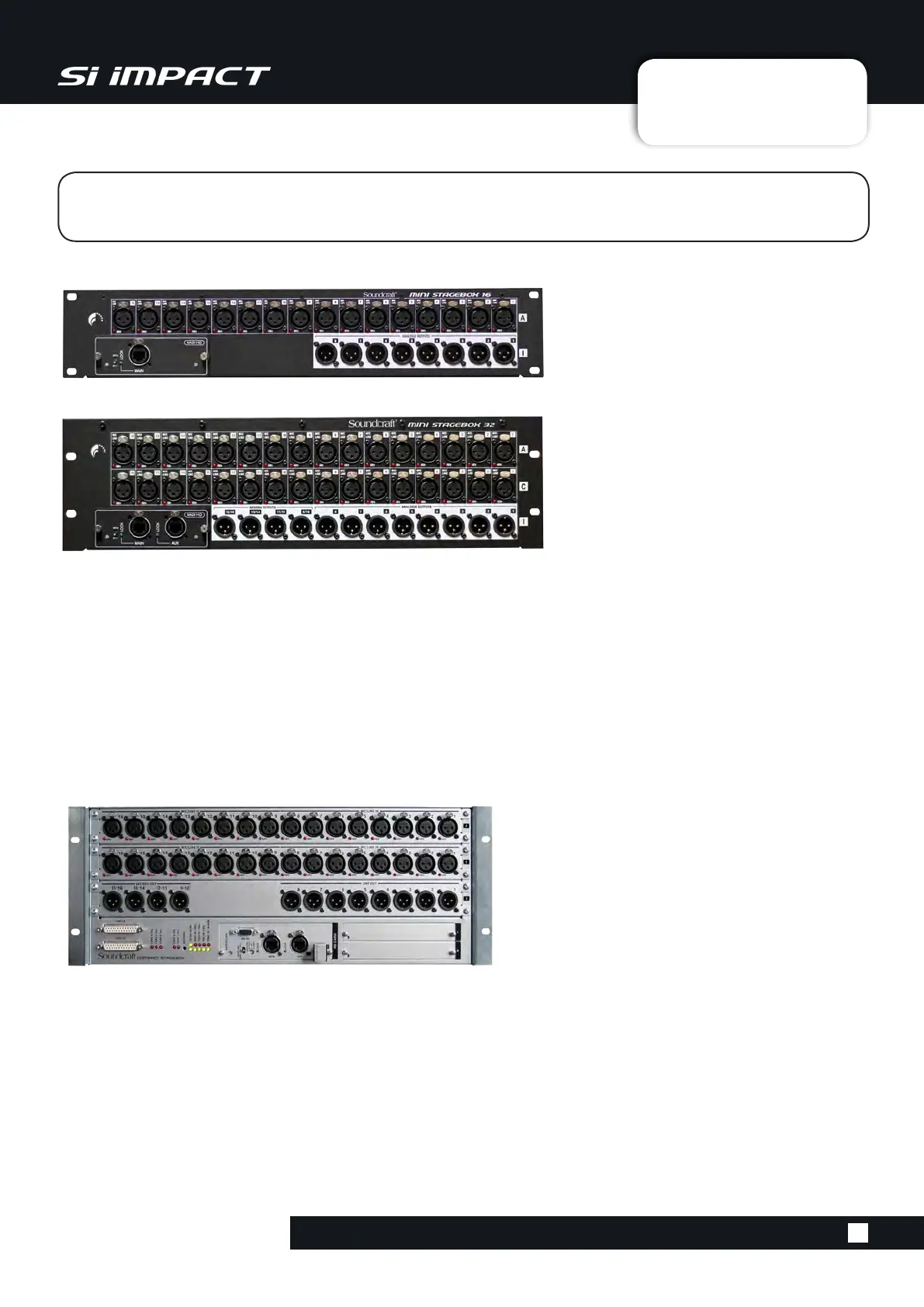

Soundcraft Mini Stagebox
Two variations of a smaller Stagebox for general use when modular I/O is not required.
The Mini Stagebox 32 (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES
outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16 (2U) model
providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the
SoundcraftSiSeriesandViSeriesconsolesviaaMADIcardttedtotheoptioncardslot.
Soundcraft Compact Stagebox
AhighdensityofI/Oconnectionsinonly4Uofrackspace.Themodularunitisfullycongurablebutis
offeredwithastandardcongurationof32mic/lineinputs,8lineoutputs,8channelsofAES/EBUoutputs
and 2 expansion slots for standard Studer D21m I/O cards. The D21m is the I/O architecture for Studer as
well as Soundcraft digital mixing systems and allows connection to most popular digital formats, including
CobraNet®, AVIOM A-Net®16, Ethersound, ADAT and RockNet. A MADI recording interface can also be
ttedtotheexpansionslots.
UsingthettedMADI-USBcard,theSiImpactcanbeconnectedtoAvarietyofadditionalI/O,
including the Soundcraft Stageboxes.
