User Manual
10: LEXICON FX

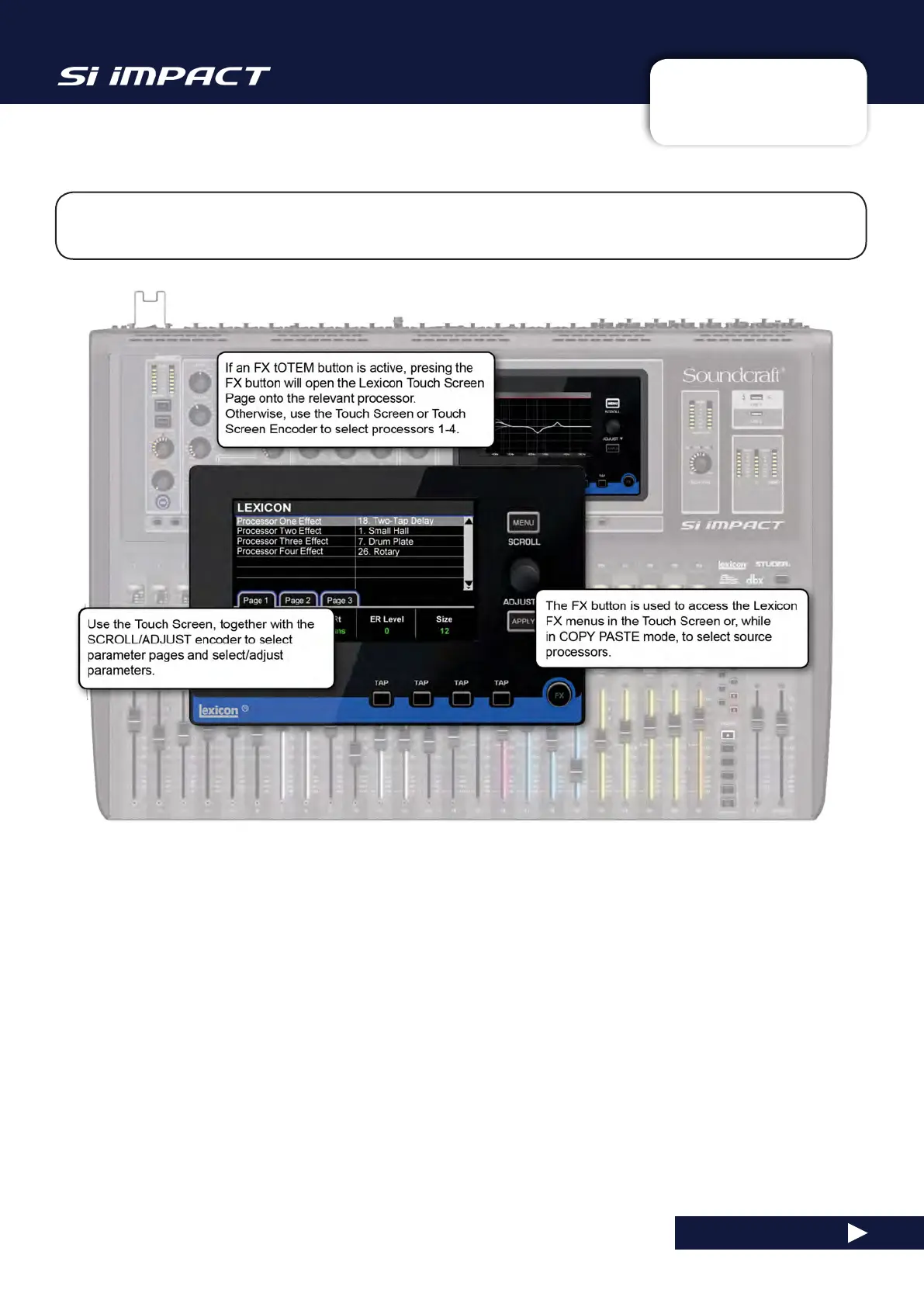

LEXICON FX
10: LEXICON FX
The console comes with four Lexicon FX processors, each with 29 available algorithms. Each FX
unit has its own dedicated FX Send Bus, and stereo return path.
Send Routing
Every input channel can contribute to the FX 1-4 send busses, which correspond to the FX unit 1-4 inputs.
Contributions are controlled in the same way as Mix bus contributions, via the FX 1 - 4 tOTEM buttons, which assigns
each channel’s contribution to the selected bus to its fader. The Stereo Return channel is assigned to the MONO/SEL
Control Channel on the right hand end of the console.
Return Routing
The Stereo Input channels, ST 1 - ST 4 are, by default, patched to the Lexicon FX unit 1-4 returns (as per the con-
sole’s default set-up). For example, Stereo Input ST 1 is patched to LEX-RT1 (FX Processor 1, Lexicon Return Chan-
nels1and2);StereoInputST2ispatchedtoLEX-RT3(FXProcessor2,LexiconReturnChannels3and4),andso
on.
Patching for the Stereo Input channels is via the OUTPUTS Touch Screen menu.
