User Manual
8.6: MONITORING
MIX FEATURES > MONITORING
8.6: MIX FEATURES > MONITORING

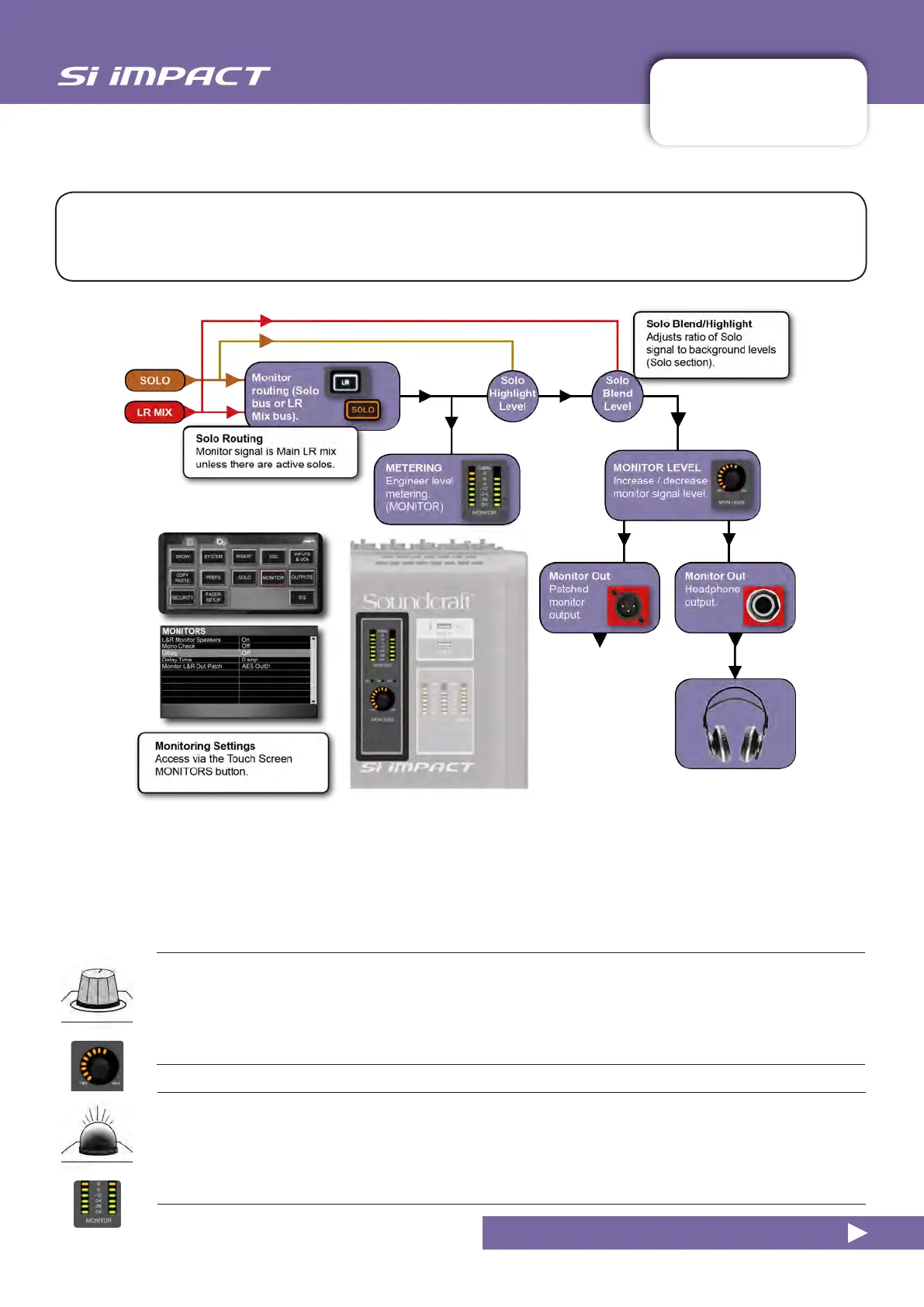

The Si Impact monitoring system is comprehensive, yet simple. The monitoring source (active
monitor signal) will normally be the main LR mix, though will switch to any selection made in the
Solo system - AFL or PFL busses.
The active monitor signal is always available on the headphones output (located below the front of the console near
fader 1). Monitoring level is normally controlled by the MON LEVEL encoder, though Main Fader and Mon Level
Encoder functionality can be swapped using the LR/Mon Level Swap parameter in the Monitor Settings Menu.
There is also a parallel Monitor Output Patch available allowing the engineer to connect control room speakers or
headphone distribution, for example.
MONITORS
Indicates level in the engineer’s monitor system
This is normally the LR signal but may be PFL/AFL, or other signal as set in the MONITOR system menus. The scale is
dBfs (full scale, digital), so the 0dB level is at clipping.
MON LEVEL
Adjust the overall monitoring signal level.
