User Manual
5.4.1: MADI-USB SET-UP
INPUTS AND OUTPUTS > MADI-USB CARD > SETUP
5.4.1: INPUTS & OUTPUTS > MADI-USB > SETUP

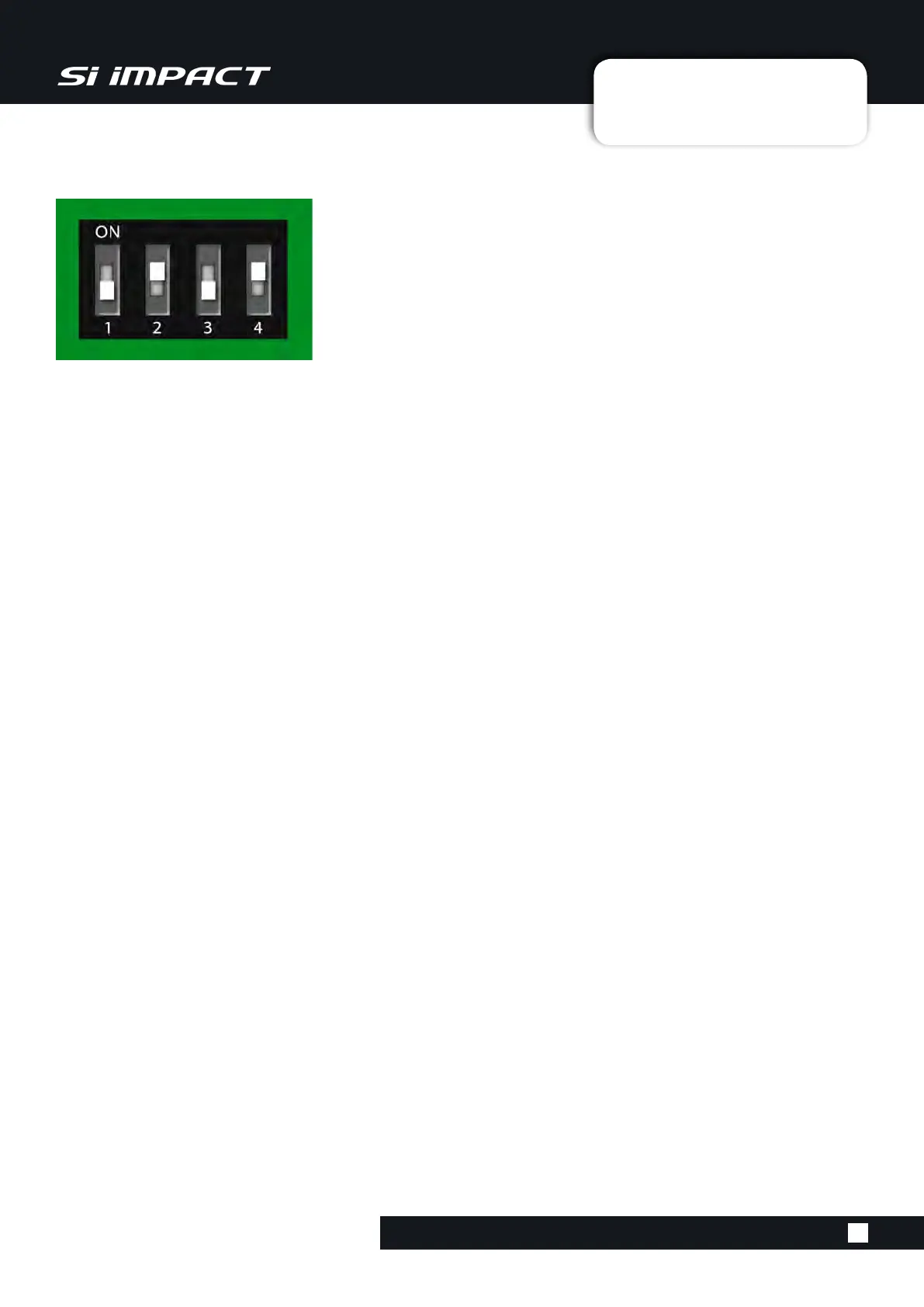

DIP Switches - Card Conguration
DIPswitchesonthecardprovideextraexibilitydependingonthe
application.
Thestandard(factory)congurationisasfollows:
DIP 1 OFF: Master (Internal) Synchronisation
DIP 2 ON: 32 USB Out (channels 32-64)
DIP 3 OFF, DIP 4 ON: 32 USB In (channels 32-64), 32 MADI In
(Channels 1-32)
This allows for 32 USB inputs and outputs for PC and Mac recording
and playback, plus 32 MADI inputs and 64 MADI outputs (for connec-
tion to a Soundcraft Stagebox, for example).
DIP Switch 1: Sync - Master / Client
This alters the syncing interaction between the MADI-USB Combo card and the mixer. As standard, the
card should be set to sync to the mixer and so, switch 1 should be set OFF. To connect two consoles
together using two MADI-USB Combo cards, for a master/client type operation, the card within the
master console should be set to sync to the Mixer (switch 1 OFF), and the client console/card set to sync
to the Card (Switch 1 ON). The consoles will then need to be set to INTernal and OPTion clocking
respectively.
DIP Switch 2: USB Out Range
This determines what channels (console output paths) the USB is sent out from on the USB portion of the
option card. OFF is channels 1-32, ON (default) is channels 33-64.
DIP Switches 3 & 4: USB / MADI In Range
Together these switches determine the input range and positions of the MADI and USB streams. You can
also set the card to 64 channels of MADI in using these switches.
3 OFF 4 OFF: Input Channels 1-64 MADI (no USB in)
3 OFF 4 ON (default): Input Channels 33-64 USB, Input Channels 1-32 MADI
3 ON 4 OFF: Input Channels 1-32 USB, Input Channels 33-64 MADI
3 ON 4 ON: Input Channels 1-64 MADI (no USB in)
