Main Board Description

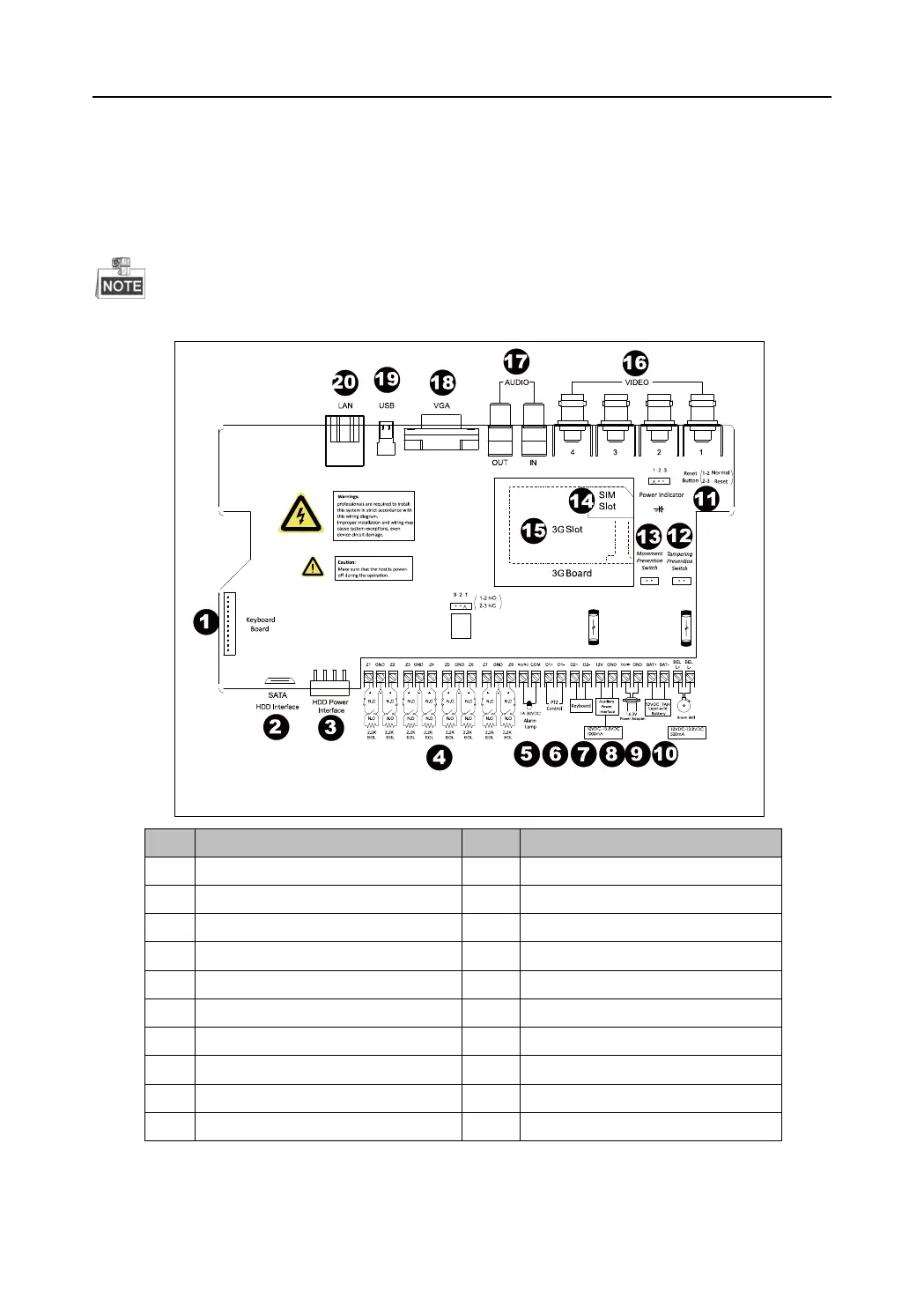

The main board description is shown as follows.
Take the model of DS-19S08-04F/Kx (Gx) as an example.
This module varies depending on the models of control panel.
NO.
Description
NO.
Description
1
Keypad Board Interface
11
Reset Button Switch
2
SATA HDD Interface
12
Tampering Prevention
3
HDD Power Interface
13
Movement Prevention Switch
4
Alarm Input Interface
14
SIM Card Slot
5
Alarm Output (Alarm Lamp)
15
3G Card Slot
6
PTZ Control Interface
16
Video Input Interface
7
Keypad Connection Interface
17
Audio Input Interface
8
Auxiliary Power Interface
18
VGA Interface
9
Power Adapter
19
USB Interface
10
Lead-acid Battery
20
LAN Interface
